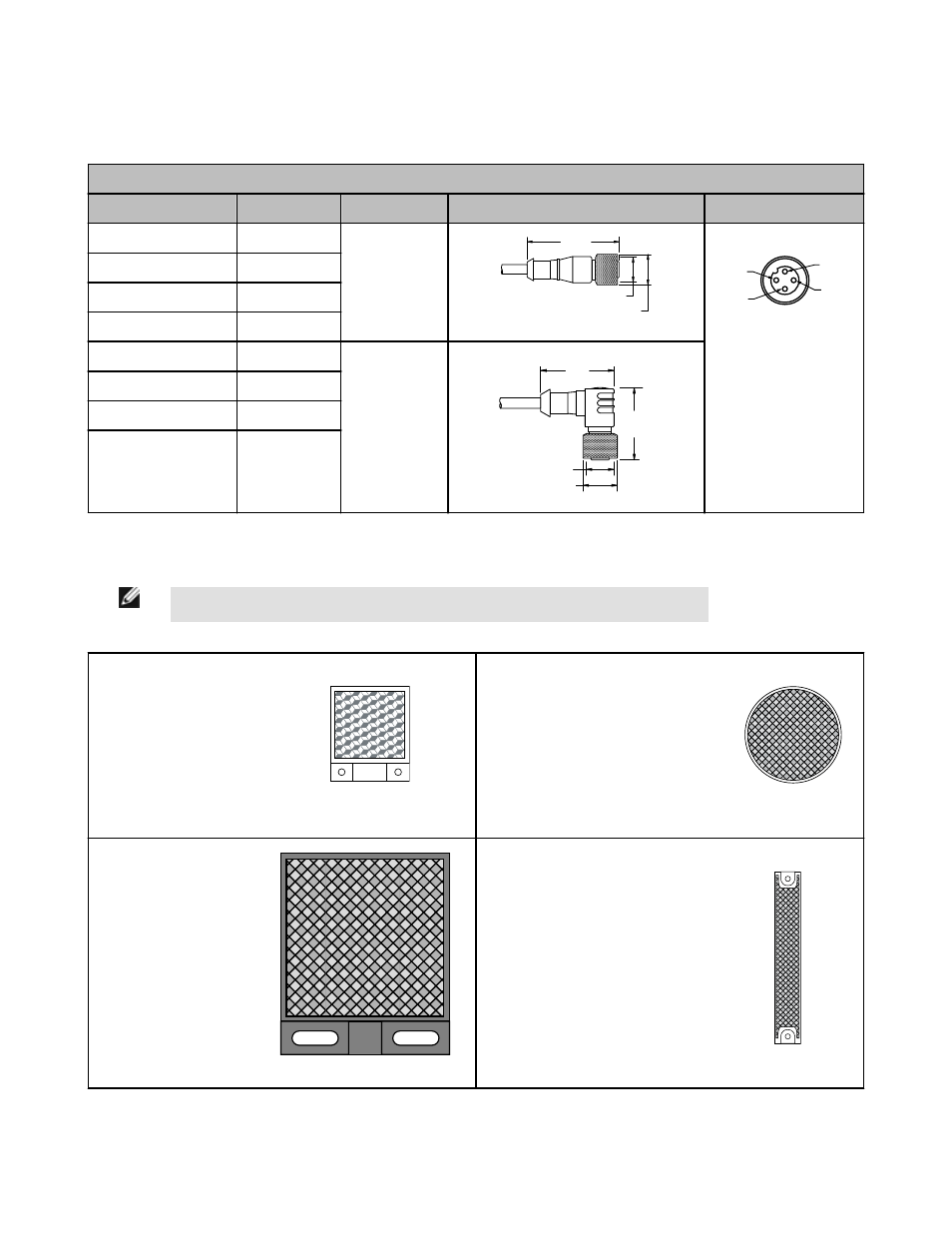

Accessories
Cordsets
4-Pin Threaded M12/Euro-Style Cordsets
Model Length Style Dimensions Pinout
MQDC-406 1.83 m (6 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
MQDC-415 4.57 m (15 ft)
MQDC-430 9.14 m (30 ft)
MQDC-450 15.2 m (50 ft)
MQDC-406RA 1.83 m (6 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDC-415RA 4.57 m (15 ft)
MQDC-430RA 9.14 m (30 ft)
MQDC-450RA 15.2 m (50 ft)
Retroreflective Targets
NOTE: For a complete selection of retroreflective targets, see www.BannerEngineering.com .
BRT-35X35B
• Square, acrylic target
• Reflectivity Factor: 1.3
• Temperature: –20° to
+60° C (−4° to +140° F)
• Approximate size: 35 mm
x 35 mm
BRT-50D
• Round, acrylic target with mounting
stud
• Reflectivity factor: 1.0
• Temperature: -20° to +60° C
• Optional brackets are available
• Approximate size: 50 mm diameter
BRT-2X2
• Square, acrylic target
• Reflectivity factor: 1.0
• Max. temperature: +50°
C (+122º F)
• Optional brackets are
available
• Approximate size: 51 mm
x 51 mm
BRT- 100X18A
• Rectangular, acrylic target
• Reflectivity factor: 1.4
• Temperature: –20° to +60° C (−4°
to +140° F)
• Approximate size: 18.5 mm x 120
mm
