Banner WORLD-BEAM QS18 Series - Manual (Page 5)

Dynamic TEACH
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF Output ON
Darkest Presented
Condition
Lightest Presented
Condition
Sensor positions
threshold between
presented conditions

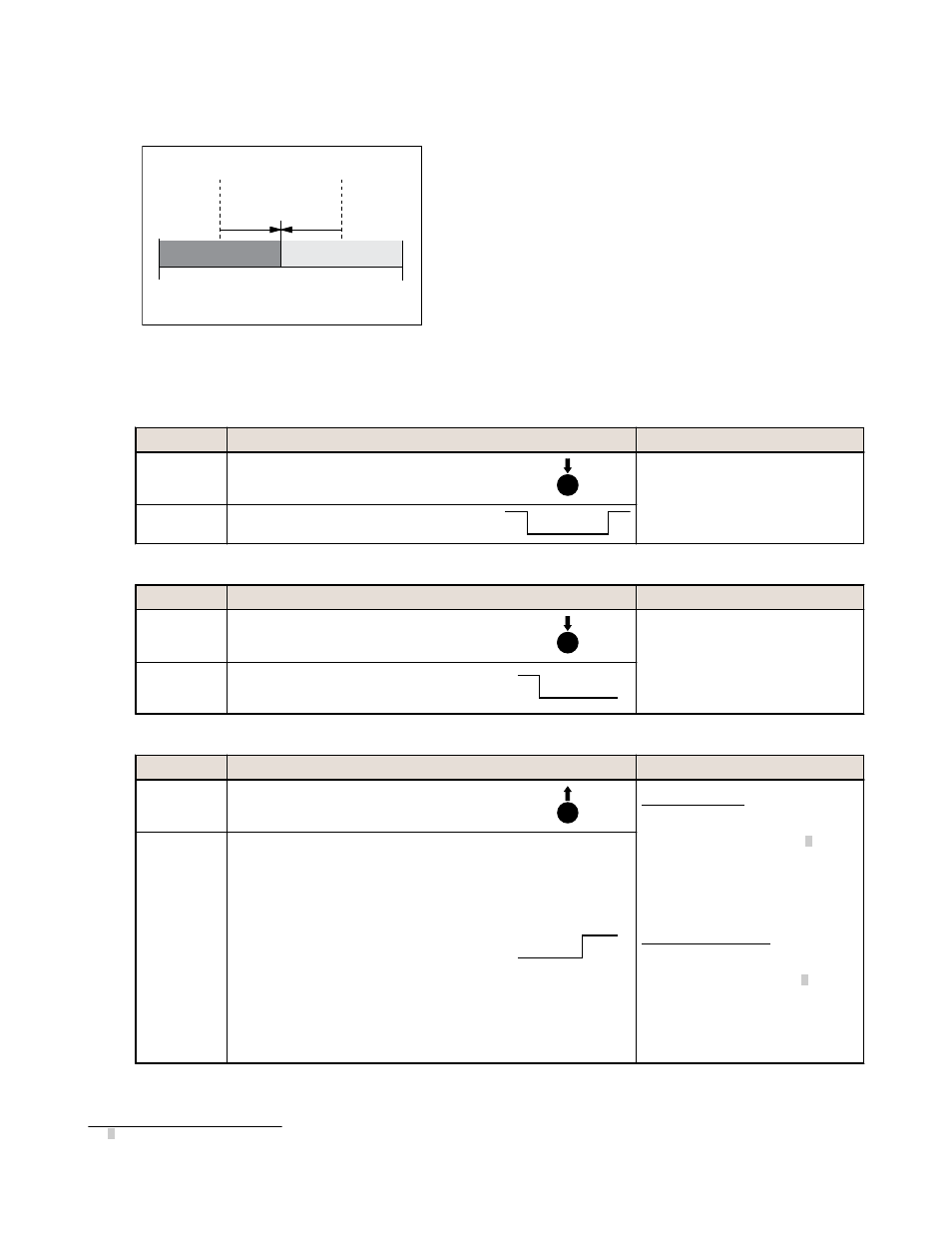

Figure 4. Dynamic TEACH (Light Operate shown)
• Dynamic TEACH sets a single switching threshold
(switchpoint).
• Dynamic TEACH is used to teach during actual
sensing conditions, taking multiple samples of the
light and dark conditions and automatically setting
the threshold at the optimum level.
• The Output ON state (Light- or Dark-Operate
setting) remains as it was last configured. To
change the Light-/Dark-Operate setting, see Sensor
Setup on page 3.
• Dynamic TEACH is recommended for applications
where a machine or process may not be stopped for
teaching.
1. Access the Dynamic TEACH mode.
Method Action Result
Push Button
Press and hold the push button for longer
than 4 seconds. Power LED Indicator: OFF
Output LED Indicator: Quick flash
(2 Hz)
Remote Line Hold the remote line low (to ground) for
longer than 2 seconds.
2 seconds
2. Teach the sensing condition.
Method Action Result
Push Button
Continue to hold the push button and present
the Output ON and OFF conditions multiple
times. Power LED Indicator: OFF
Output LED Indicator: Quick flash
(2 Hz)
Remote Line
Continue to hold the remote line low (to
ground) and present the Output ON and OFF
conditions multiple times.
3. Return to Run mode.
Method Action Result
Push Button Release the push button.
TEACH Accepted
Power LED Indicator: Flashes 3
times, then solid green
Output LED Indicator: OFF4, then
ON or OFF depending on the output
state
The sensor returns to Run mode with
the new settings.
TEACH Not Accepted
Power LED Indicator: Flashes 3
times, then solid green
Output LED Indicator: ON4, then
ON or OFF depending on the output
state
The sensor returns to Run mode
without changing settings.
Remote Line Release the remote line/switch.
4 The initial output LED indicator condition is simultaneous with the power LED indicator 3-flash
WORLD-BEAM ® QS18E Series
P/N 136564 Rev. C www.bannerengineering.com - tel: 763-544-3164 5
