Banner WORLD-BEAM QS18 Series User Manual
Page 12

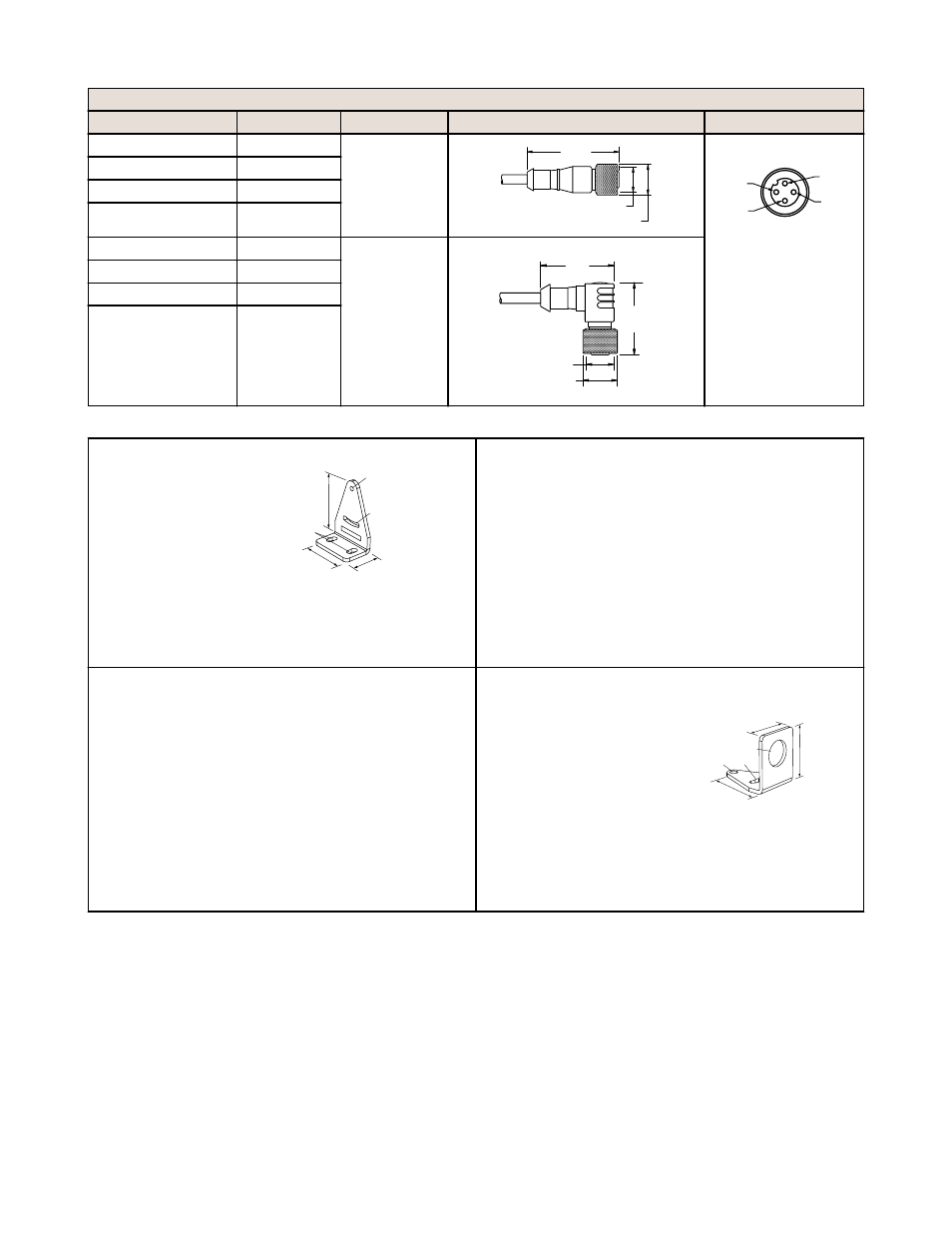

4-Pin Threaded M12/Euro-Style Cordsets
Model
Length
Style
Dimensions
Pinout
MQDC-406
1.83 m (6 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
MQDC-415
4.57 m (15 ft)
MQDC-430
9.14 m (30 ft)
MQDC-450
15.2 m (50 ft)
MQDC-406RA
1.83 m (6 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDC-415RA
4.57 m (15 ft)
MQDC-430RA
9.14 m (30 ft)
MQDC-450RA
15.2 m (50 ft)
SMB312S
•
Stainless steel 2-axis,
side-mount bracket
46
B
C
A
32
20
A = 4.3 x 7.5, B = diam. 3, C
= 3 x 15.3
SMBQS18DIN
•
Right-angle bracket
assembly for
mounting on 35 mm
DIN rail
•
300 series stainless
steel and glass filled
nylon; zinc-plated
screws
SMBQS18Y
•
Die-cast bracket for
18 mm holes
•
Includes metal hex
nut and lock washer
•
Allows ± 8° for cabled
sensors
Hole size: A = ø 15.3
SMB18A
•
Right-angle mounting
bracket with a curved
slot for versatile
orientation
•
12-ga. stainless steel
•
18 mm sensor
mounting hole
•
Clearance for M4 (#8)
hardware
30
41
46
A
B
C
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 18.5
WORLD-BEAM
®
QS18E Series
12
www.bannerengineering.com - tel: 763-544-3164
P/N 136564 Rev. C
