MINI-ARRAY ®
Two-Piece Measuring Light Screen

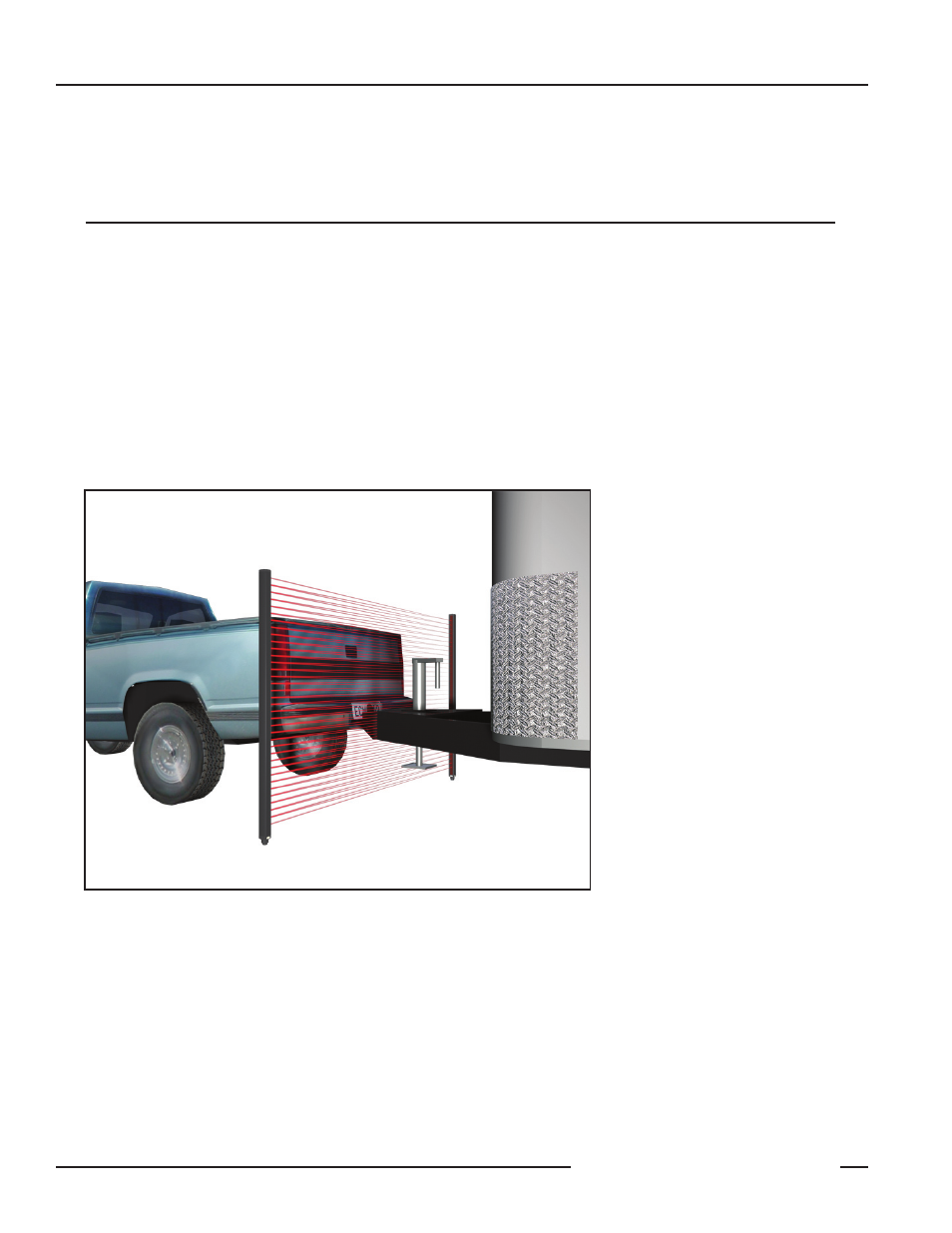

Figure 1-1. Typical vehicle separation application
The Banner A-GAGE MINI-ARRAY Two-Piece Measuring Light Screen was
customized for vehicle separation applications. It incorporates the popular
MINI-ARRAY emitter and receiver design and ease of use, while simplifying
installation. This two-piece system does not require a separate controller.
A typical system consists of four components:
• Emitter
• Receiver
• Two interconnecting cables
Models are available in array lengths from 150 to 1220 mm in 150 mm increments
(6" to 4' in 6" increments), plus 1520 mm (5') and 1830 mm (6') lengths. Models
are listed in Section 2.1. Beam spacing is 19.1 mm ( 3 /
4
"). Sensing range is 0.9 to
15 m (3' to 50').
1.0 System Overview
