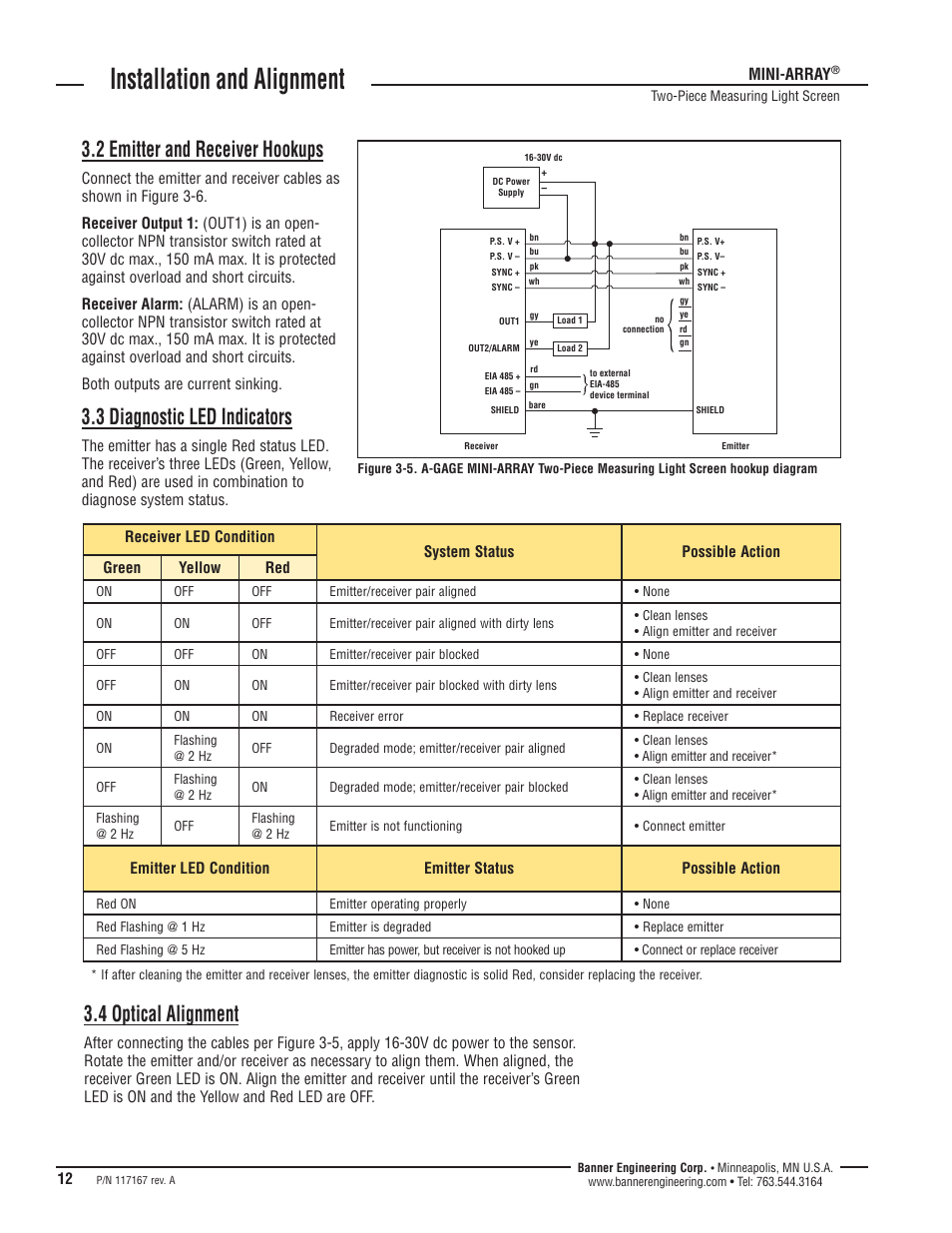

Installation and alignment, 2 emitter and receiver hookups, 3 diagnostic led indicators – Banner A-GAGE MINI-ARRAY Series User Manual
Page 12: 4 optical alignment
