Banner PVA Pick-to-Lights - Manual (Page 8)

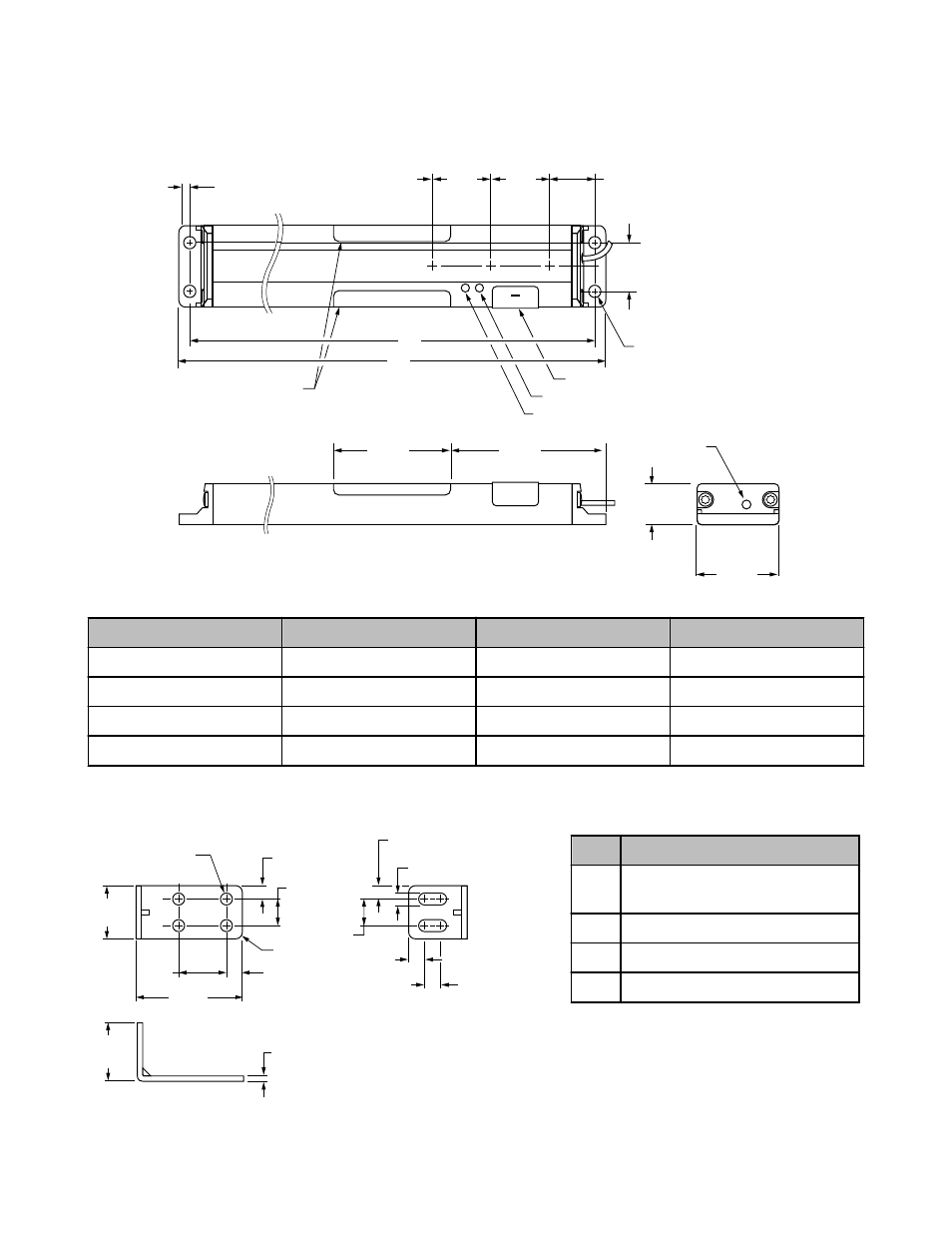

Dimensions
Emitter and Receiver
MODE
Job Lights
15.0 mm
(0.59")
30.0 mm
(1.18")
Status Indicator 2
Status Indicator 1
Configuration Switch Cover
Cable
18.0 mm
(0.71")
ø4.45 mm
(0.175")
Beam 1 Beam 2 Beam 3
25.0 mm
(0.98")
25.0 mm
(0.98")
Beams Continue at
25.0 mm Spacing
15.0 mm
(0.59")
L2
71.8 mm
(2.83")
43.2 mm
(1.70")
L1
3.9 mm
(0.15")
Model Number of Beams L
1
L
2
PVA100.. 5 130.0 mm (5.12 in) 137.8 mm (5.43 in)
PVA225.. 10 258.5 mm (10.18 in) 266.4 mm (10.49 in)
PVA300.. 13 333.5 mm (13.13 in) 341.4 mm (13.44 in)
PVA375.. 16 408.5 mm (16.09 in) 416.6 mm (16.40 in)
SMBPVA1 Standard Bracket (2 Included with PVA) Hardware Included with Each Sensor (kit part
number 50532)
40.6 mm
(1.60")
6.0 mm
(0.24")
6.0 mm
(0.24")
20.1 mm
(0.79")
18.0 mm
(0.71")
4 x ø4.6 mm
(0.18")
6.1 mm
(0.24")
2.0 mm
(0.08")
4 x R2.54
(0.10")
10.2 mm
(0.40")
10.2 mm
(0.40")
5.0 mm
(0.20")
5.0 mm
(0.20")
2 x 4.8 mm
(0.19")
22.9 mm
(0.90")
Qty Description
4 Stainless steel Phillips panhead ma-
chine screws (M4 x 0.7 x 12)
4 Stainless steel hex nuts (M4 x 0.7)
4 Stainless steel lock washers (M4 x 0.7)
1 Plastic screwdriver (3.6 cm/1.4 in long)
PVA Pick-to-Light Array
8 www.bannerengineering.com - tel: 763-544-3164 P/N 52088_web
Rev. E
