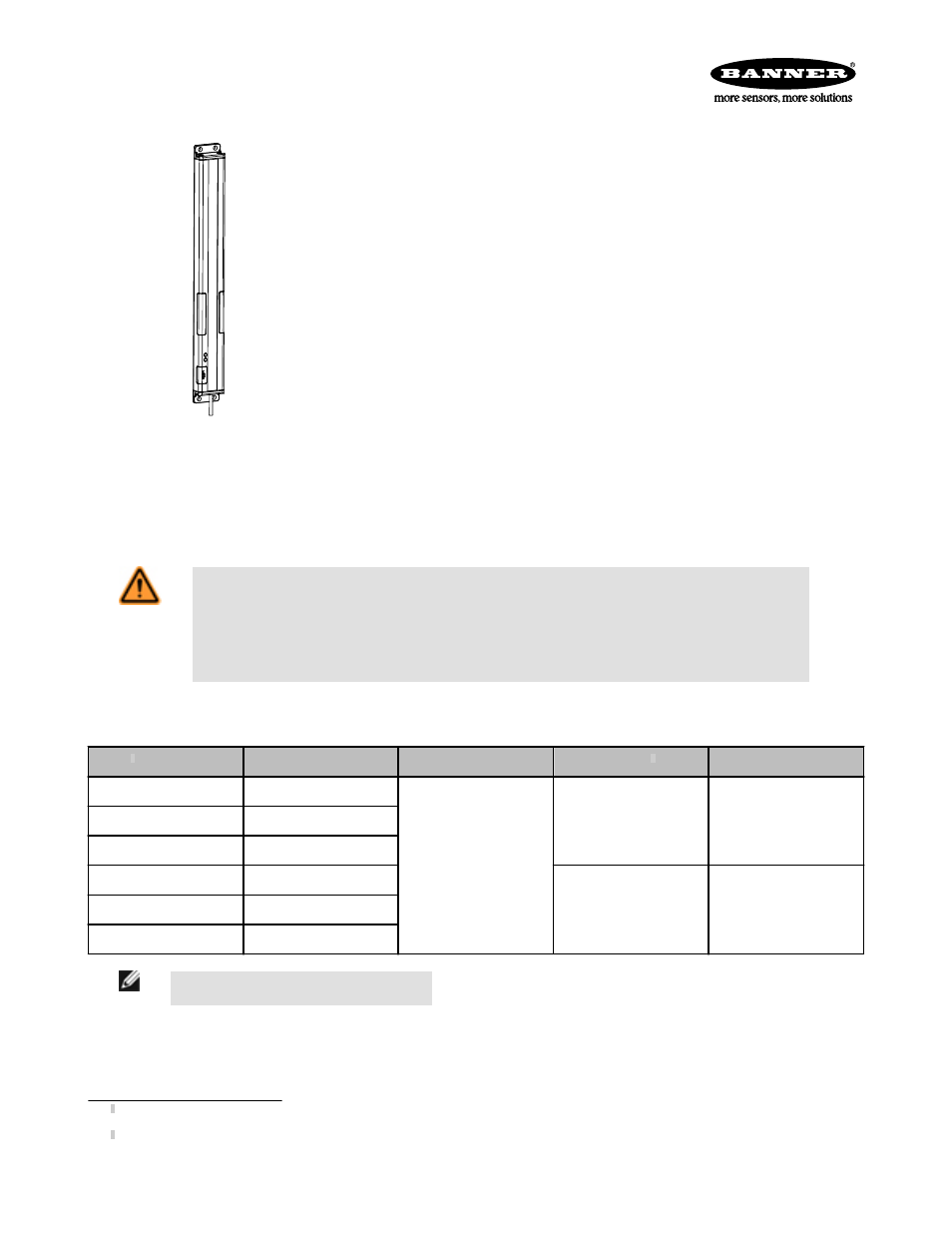

Banner PVA Pick-to-Lights User Manual
Pva pick-to-light array, Models
Light screen for error-proofing of bin-picking operations
• Compact package, available in 4 lengths to fit many sizes and configurations of existing
parts bins
• Range up to 2 m (6.5 ft)
• Two-component system (asynchronous emitter and receiver) needs no sync wire or con-
troller box.
• Emitters and receivers sold separately or in pairs for easy ordering.
• Two LEDs on each emitter and receiver indicate proper setup and system errors.
• Clearly visible green job indicator lights mounted on either side of emitter and receiver
housings; the light can be remotely controlled to initiate user action with a solid ON or
blinking condition
• Two frequency settings to prevent crosstalk in close-proximity, multiple-array installations
• Easy DIP-switch selection of light/dark operate, solid/flashing job light, A/B frequency,
and gate polarity for activating the job light indicator.
• Choose 2 m (6.5 ft) unterminated cable or 2 m (6.5 ft) cable with 4-pin Euro-style quick-
disconnect connector.
• PNP or NPN receiver output, depending on model
• 12 to 30V dc operation
• Minimum resolution 35 mm (1.4 in)
• Wide beam pattern for easy alignment
• Heavy-duty protective brackets available
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death. This device does not include the self-checking redundant circuitry necessary to allow its
use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
Models
Model
1
Description
Array Length / # Beams Job Light Input
2
Receiver Output
PVA100N6
Emitter/Receiver Pair
100 mm (4 in) Long, 5
Beams
0V dc
NPN (Sinking)
PVA100N6E
Emitter
PVA100N6R
Receiver
PVA100P6
Emitter/Receiver Pair
+5 to 30V dc
PNP (Sourcing)
PVA100P6E
Emitter
PVA100P6R
Receiver
NOTE: Additional models on the next page.
1
Only cabled models (2 m (6.5 ft) unterminated integral cable) are listed. For 2 m (6.5 ft) pigtail with Euro-style Quick-disconnect fitting, add "Q" to the model number (for example,
PVA100N6Q).
2
PVA Pick-to-Light Array
P/N 52088_web
Rev. E
5/1/2013
