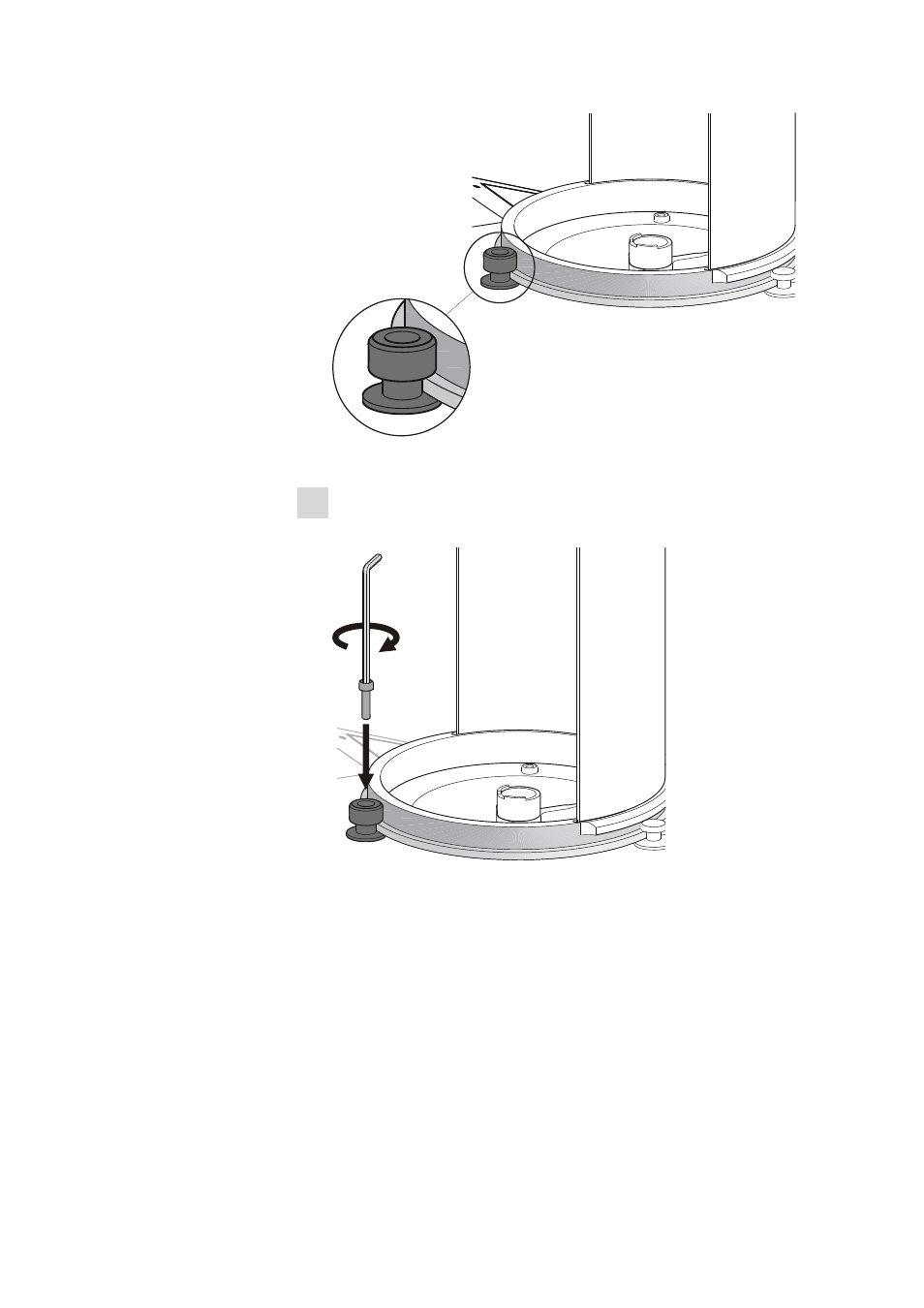

Figure 8, Positioning the stop over the threaded hole, Figure 9 – Metrohm 909 UV Digester User Manual

Page 21: Screwing the stop in place

background image

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

3 Installation

909 UV Digester

￭￭￭￭￭￭￭￭

13

Figure 8

Positioning the stop over the threaded hole

4 Screw the stop back in place on the housing with the hex socket

head screw.

Figure 9

Screwing the stop in place

Check whether the UV protective shield can be turned back all the
way to the stop (2-6) on both sides.
