2 Installation
2.3 Electrical connection
2.3.1 Operation in a modular IC system
Always switch off the 762 IC Interface and 816 IC Eluent Selector
before connecting the two instruments.
Use a 6.2134.080 or 6.2134.090 Cable to connect RS 232 interface 14
of the 816 IC Eluent Selector with a free RS 232 interface on the 762 IC
Interface according to the following diagram.
816 6.2134.080 / 6.2134.090
762
6.2134.100
PC

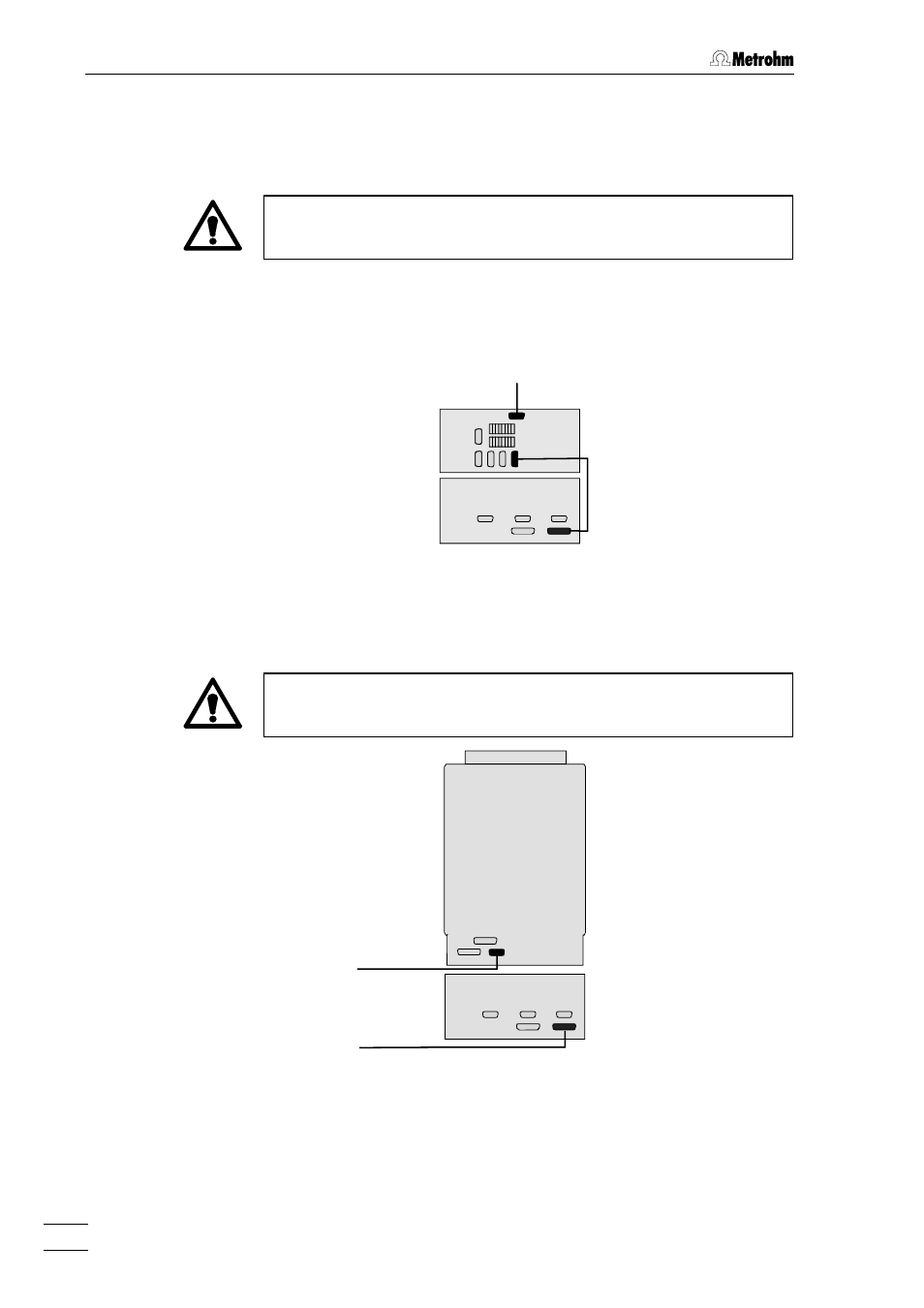

Figure 4: Connecting the 816 IC Eluent Selector to 762 IC
Interface
2.3.2 Operation with a 761 Compact IC
Always switch off the 816 IC Eluent Selector and PC before connect-
ing the two instruments.
761
6.2134.100
PC
816
PC
6.2125.110
Figure 5: Connecting the 816 IC Eluent Selector to a PC
The 816 IC Eluent Selector can also be operated with the 761 Compact
IC without a 762 IC Interface. The RS 232 interface of the two instru-
ments must then be connected directly to the RS 232 interfaces of the
PC as shown in Figure 5.
