Page 15
PRO RXqp Installation and User’s Manual
Switches 1 to 7 are preset at the
default configuration; they should be
left at the default settings.
Switch 8 and 9 needs to be set to match the slot
speed of the computer. If you are unsure, the 4
lane setting is a good place to start.

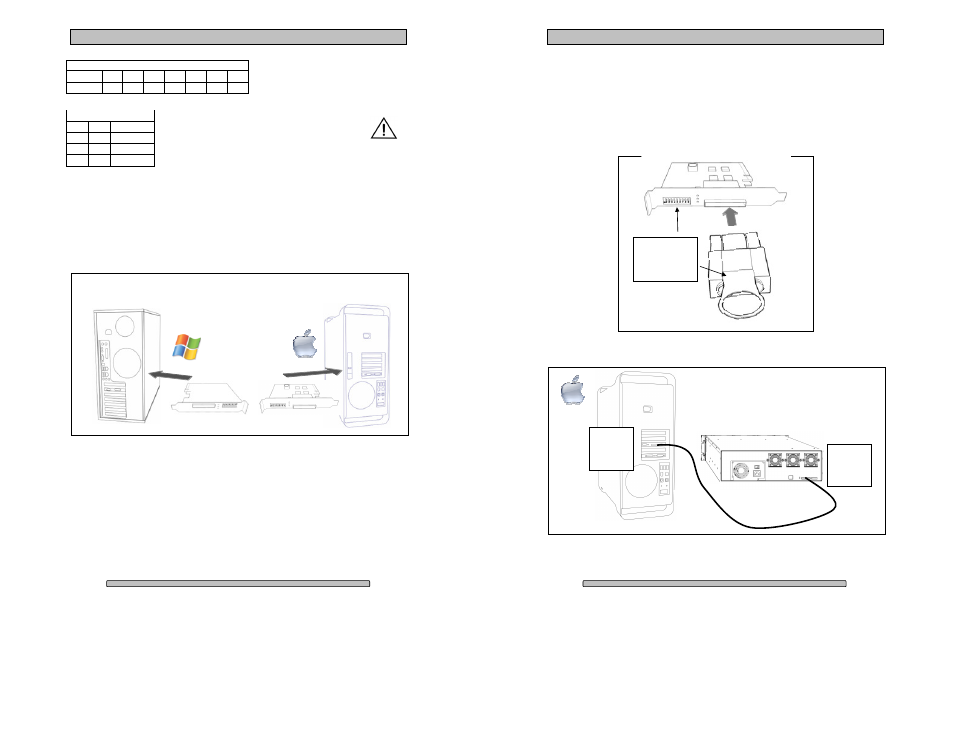

4.3.2. HBE Card Installation
The PCI-e HBE Card requires a x8 slot or larger. Computers with PCI-e slots
less than x8 will not physically accommodate the HBE. PCI-e slots x8 or larger
will work.
Apple Mac Pro (Intel) and newer versions of Power Mac G5 support PCI-e, as
well as the HP xw series workstations.
Default Setting
Switch 1 2 3 4 5 6 7
On Off On Off On On Off
PCI-express Lanes
8
9
Off Off 8 Lanes
On Off 4 Lanes
On On 1 Lane
Typical
Windows PC Apple Mac Pro
and Power Mac
Page 16
PRO RXqp Installation and User’s Manual
4.4. Making the Connections
4.4.1. PCI-e Extender Cable
The PRO RXqp is supplied with a PC I-e Extender Cable. This cable carries 8
lanes of the PCI-e interface. The green tab is up in this orientation. To remove,
pull the tab to unlock the latches and then pull the metal body to remove the
connector.
4.4.2. Mac Connection
Mac Pro or Power Mac
Green
Tab on
top.
Green
Tab on
top.
Switches to
left, green
Tab on top.
