PRO RXqp Installation and User’s Manual
2. Getting Started
The PRO RXqp comes pre-assembled and almost ready for use, just install the
Disk Modules, the PCI-e (PCI-express) Host Bus Extender (HBE), connect the
cables, install the software driver and RAID Console. If you are using a Mac,
you are good to go, by default the unit is pre-formatted for Mac OS X operation.
For Windows, a small format procedure is needed.
2.1. Packaging
Please do not discard the boxes and packing materials in case you
might need to reuse them later. Always ship the product in its original
packaging. Improperly packaged products will be subjected to shipping
damage, for which you will be liable for the repair.
2.2. Check List
• Installation a nd User’s Manual.
• Power Cord (North America user only).
• A 4 Quad Pack 3u rack mo unt e nclosure.
• 1 to 4 Quad Packs.
• A PCI-e x8 Host Bus Exte nder card.
• A 1-meter PCI-e x8 Extender Cable. (3, 7 and 10-meters optional)
• Rack mount rails (optional)
Page 10
PRO RXqp Installation and User’s Manual
3. Overview

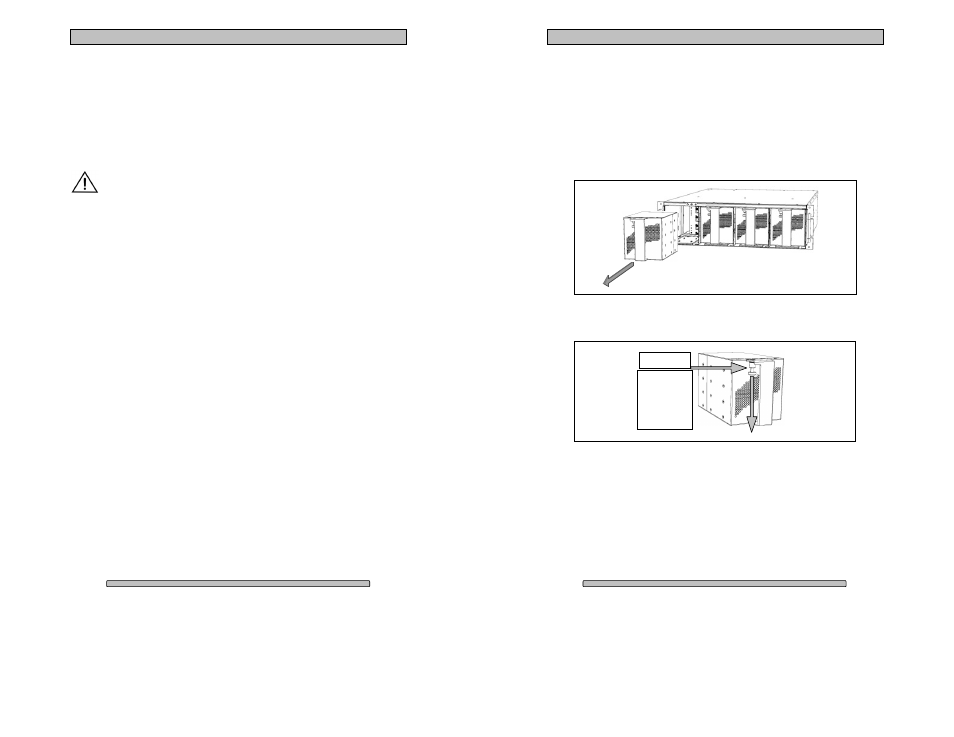

3.1. The Bezel
The PRO RXqp does not have a front bezel that needs to be removed to access
the Disk Modules (Packs). The Disk Modules (Packs) are held by a spring
loaded Lock Pin that you simply pull down on to release the Disk Module (Pack).
3.2. Disk Module (Pack)
Disk Module (Pack)
Lock Pin
Pull down
to unlock
during
insert and
removal.
