Page 43
PRO RXqp Installation and User’s Manual

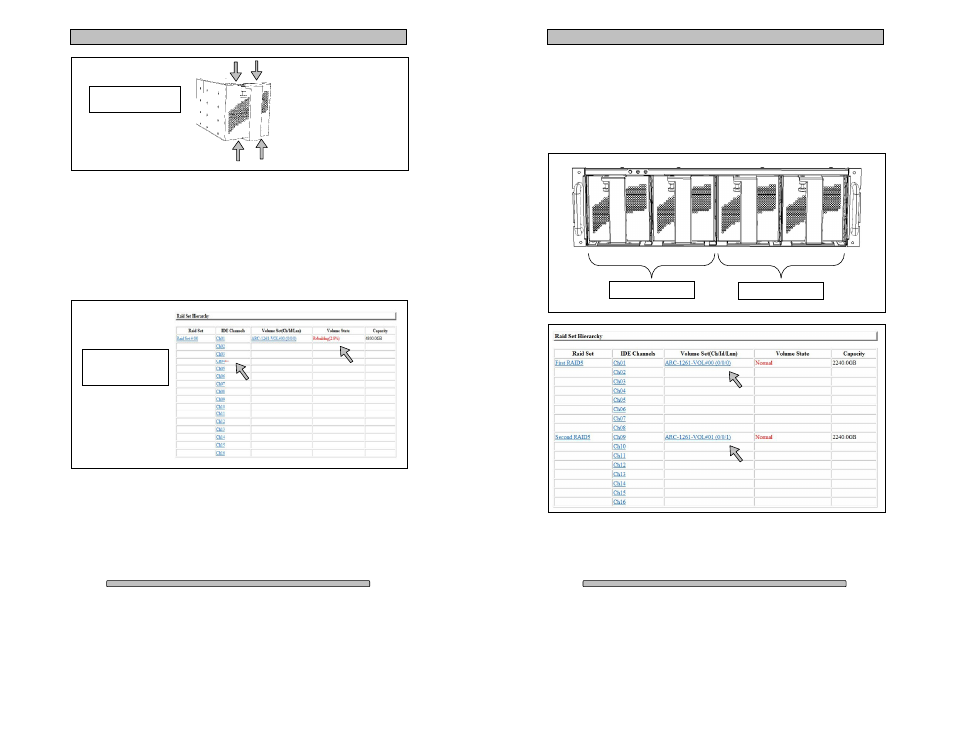

Now that the Disk Module (Pack) has been put back together with the new disk
drive installed. With the power off install the Disk Module (Pack) back into the
Pro RXqp chaise. Power on the system
In a redundant RAID mode, rebuild will start automatically after replacement of a
defective disk drive. You can monitor the process through the GUI under the
Raid Set Hierarchy.
The reconstruction time to complete can vary on a couple factors:
- The size of the disk drive.
- If you continue to work on the array during the reconstruction.
This screen shot
denotes disk drive #4
has begun rebuilding.
Re-install these 4
screws last.
Page 44
PRO RXqp Installation and User’s Manual
Appendix B
Configuring LUN’s (Logical Unit Number’s) on the Pro RXqp
When moving the D isk Modules (Packs) between systems you might run into the
occasional issue that the D isk Modules (Packs) are set to a conflicting LUN. For
example, you have all 4 Disk Modules (Packs) installed but Modules 1 and 2 are
their own RAID5 and Modules 3 and 4 are their own RAID5:
What it would look like in the RaidSet Hierarchy. Notice the LUN Settings.
1 st Raid 5 Disk Array 2 nd Raid 5 Disk Array
