©2014 DJI Innovations. All Rights Reserved.
9
(6)
The 8-pin port on the H3-3D gimbal should only be used for connecting to the Phantom 2. Do not
connect other devices (such as a video downlink transmitter) to this port, otherwise the gimbal may be
damaged.
1.3 Camera Installation
Follow the below instructions to mount the GoPro camera.
Caution:
(1)
Visi
and watch installation video tutorial before
you proceed to mount the GoPro camera to the H3-3D gimbal.
(2)
Ribbon cable is a delicate item, treat with extreme care. Always check the connection per each flight and
ensure the ribbon cable connection is secure.

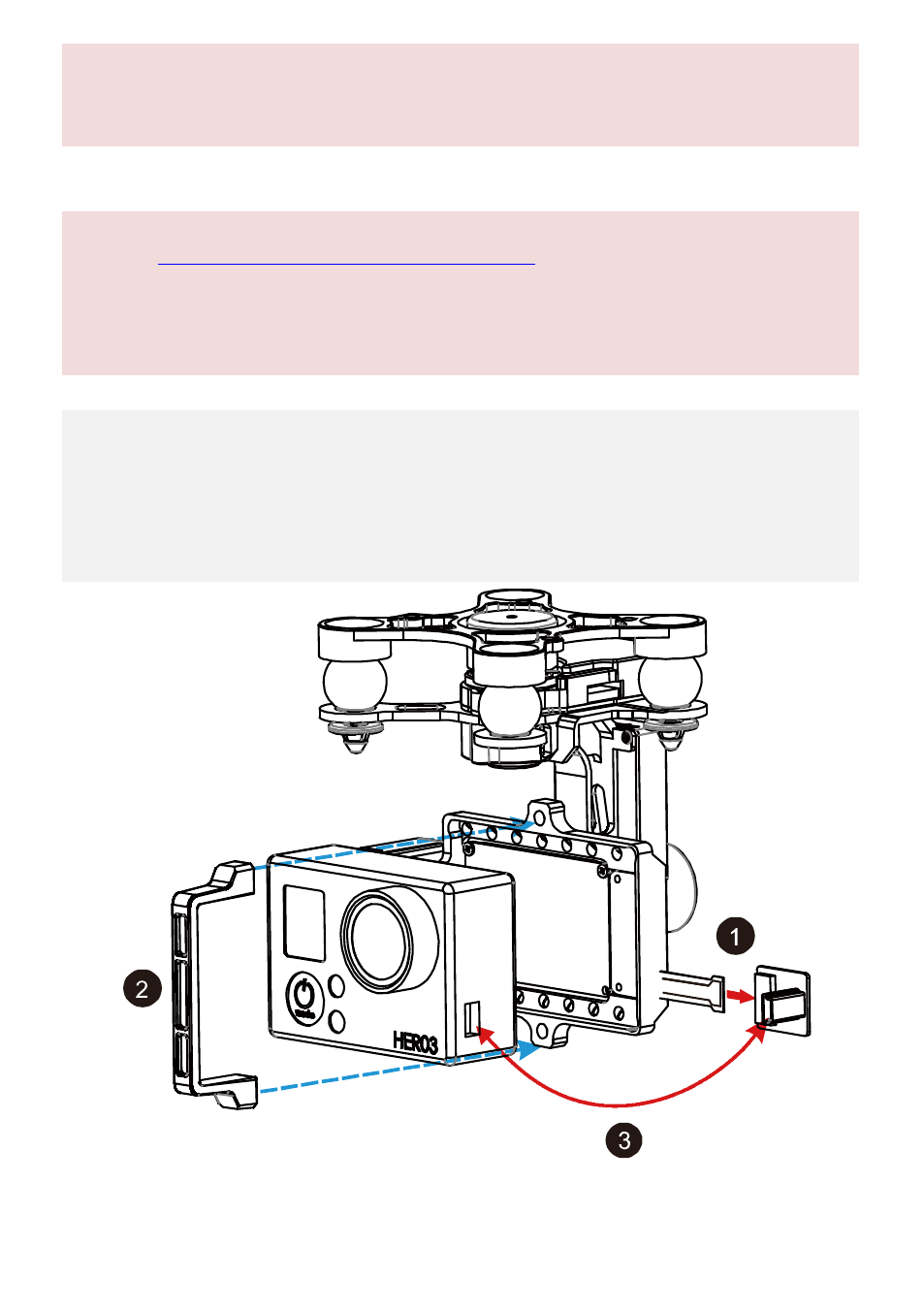

1.
Connect the video output board with the connection cable from the gimbal, ensure the connection
orientation is correct.
2.
Mount the camera onto the gimbal and secure the camera with camera bracket and screws.
3.
Firmly insert the video output board connector into the mini-USB port on camera to complete the
installation.
1.4 Final Checks
Ensure the installed damping unit is aligned parallel with the Phantom 2.
