1.2 Install H3-3D to Phantom 2

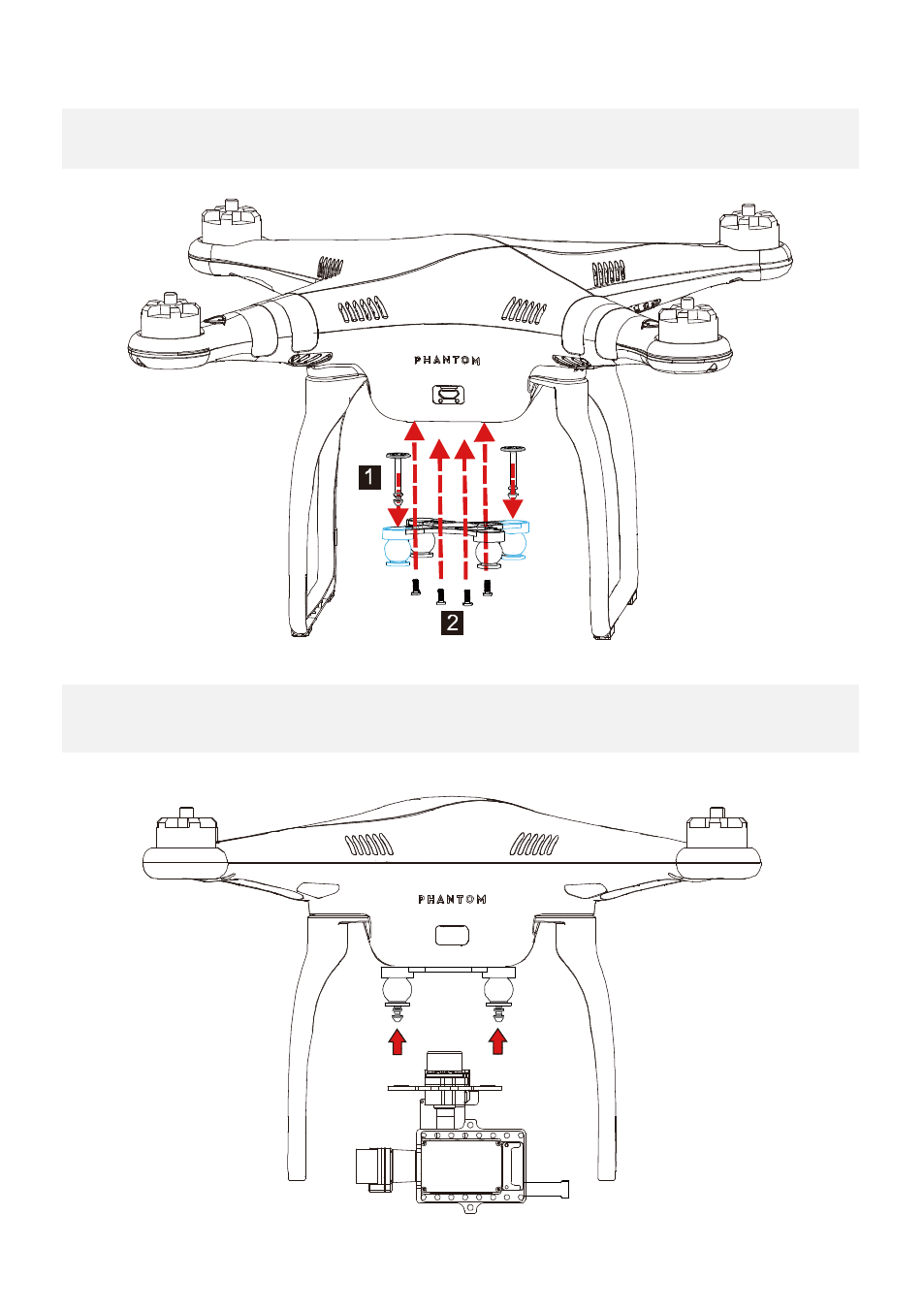

Follow the below instructions to install the H3-3D gimbal to Phantom 2.
1.
Insert the securing pins through the holes on the highlighted diagonal position shown below. Then, attach
and secure the upper plate of damping unit to the Phantom 2 with four M3x5 screws.
2.
Attach the damping unit bottom plate to upper plate using the four vibration absorbers. Ensure the lip of
the vibration absorbers are properly inserted through the mounting holes on the bottom plate.
