BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
93-1-3
APRIL, 2011

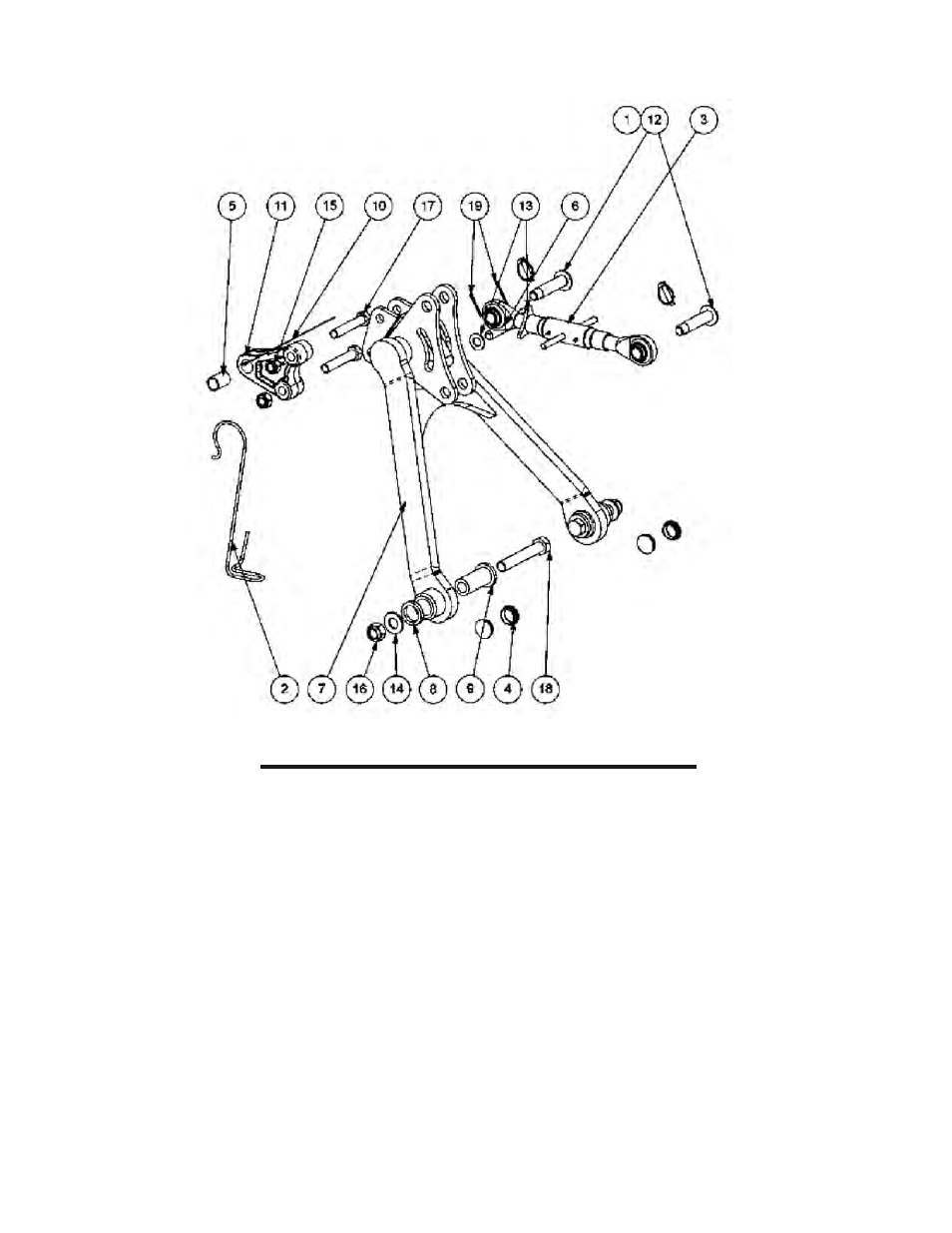

STABILIZER
REF. PART
NO. NO.
DESCRIPTION QTY.
1 431217 Linch Pin, Med.7/16 2
2 21160.03 Pto Hook Support-Plated 1
3 21370.07 Top Link Assy - 357 To 517mm 1
4 21388.01 Plastic Insert 45mm Dia 4
5 21883.01 Sleeve Hfs Tube 38.6 X 6.3 Wal 1
6 22072.01 Quadrant Pin-Stabilizer 1
7 41205.13 Narrow Nose Stabilizer W.A. 1
8 45999.04 Spacer 55 X 40.5 X 9 2
9 45999.05 Spacer Sleeve 2
10 7196045 Hose Tie- 350.0lg 1
11 7499506c Stabilizer Tongue Cat.3-Cast 1
12 7560144 Pin-Top Link 2
13 9100108 Flatwasher M20 2
14 9100109 Flatwasher M24 Bzp 2
15 9163008 Nyloc Nut M20 2
16 9163009 Nyloc Nut M24 2
17 9213228 Bolt 2
18 9213309 Capscrew M24 X 150 2
19 0425540 Roll Pin M5 X 40 2
