BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
93-1-53
APRIL, 2011

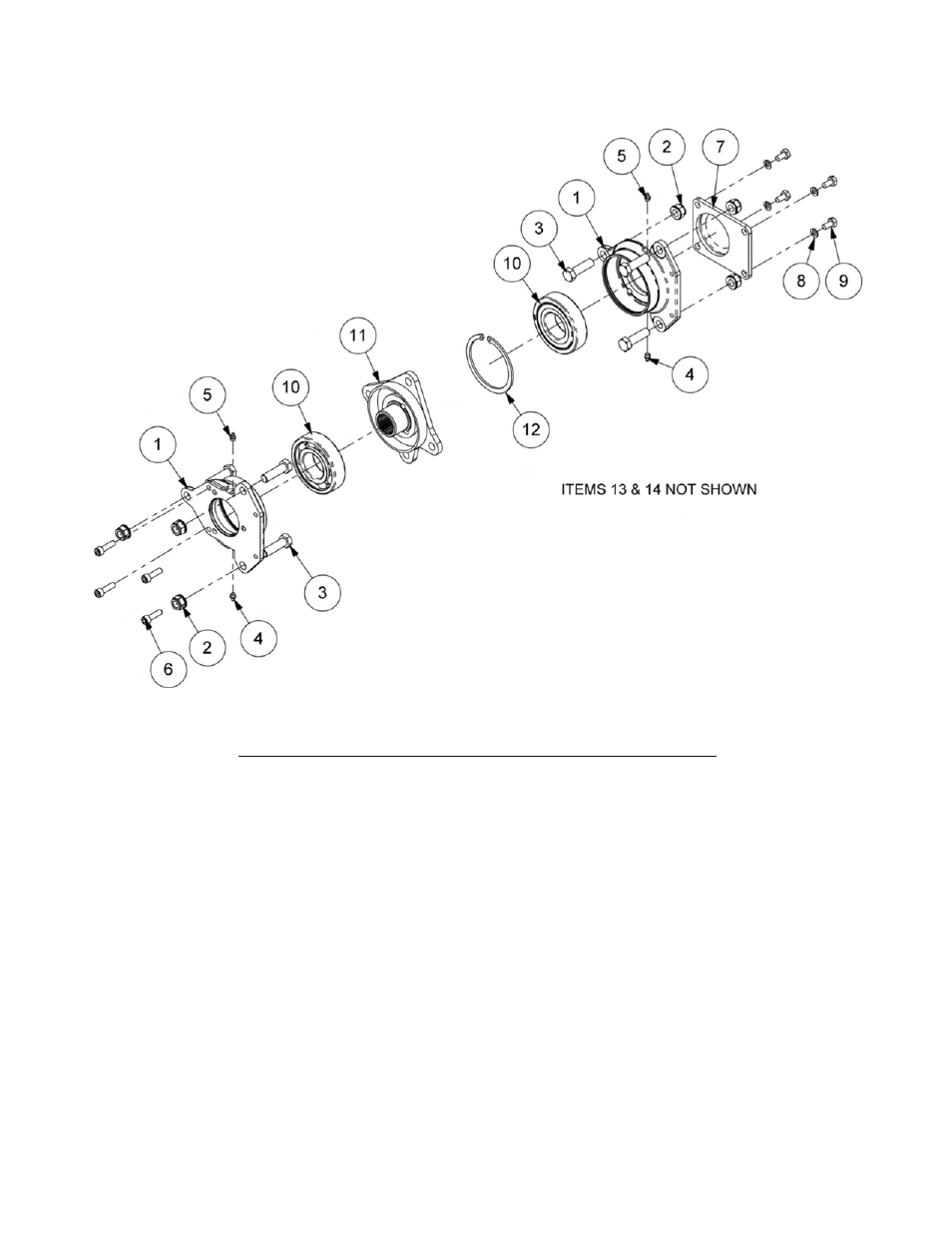

QUAD DRIVE MODULE - MULTICUT
REF. PART
NO. NO. DESCRIPTION QTY.
1 7190261 Housing Bearing 2
2 9100024 Nut 6
3 9200031 Capscrew M16 - 1.5 X 60 Grade 8.8 6
4 0901121 Grease Nipple,1/8bsp-Straight 2
5 0901125 Grease Fitting 1/8bspx45deg 2
6 9300144 Capscrew,Wedglok 4
7 7190292 Plate, Cover 1
8 9100205 Lockwasher 10mm Dia. Bzp 4
9 9313045 Capscrew M10-P1.5 X 20mm 4
10 0600018 Bearing 55x120x29mm 1r.15 2
11 22269.02 Drive Hub Quad Drive 1
12 7190022 120 Internal Circlip D1300-12 1
13 8121043 Spacer, Thin- Ref. 96-033 5
14 8121044 Spacer Thick 5
