BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
93-1-47
APRIL, 2011

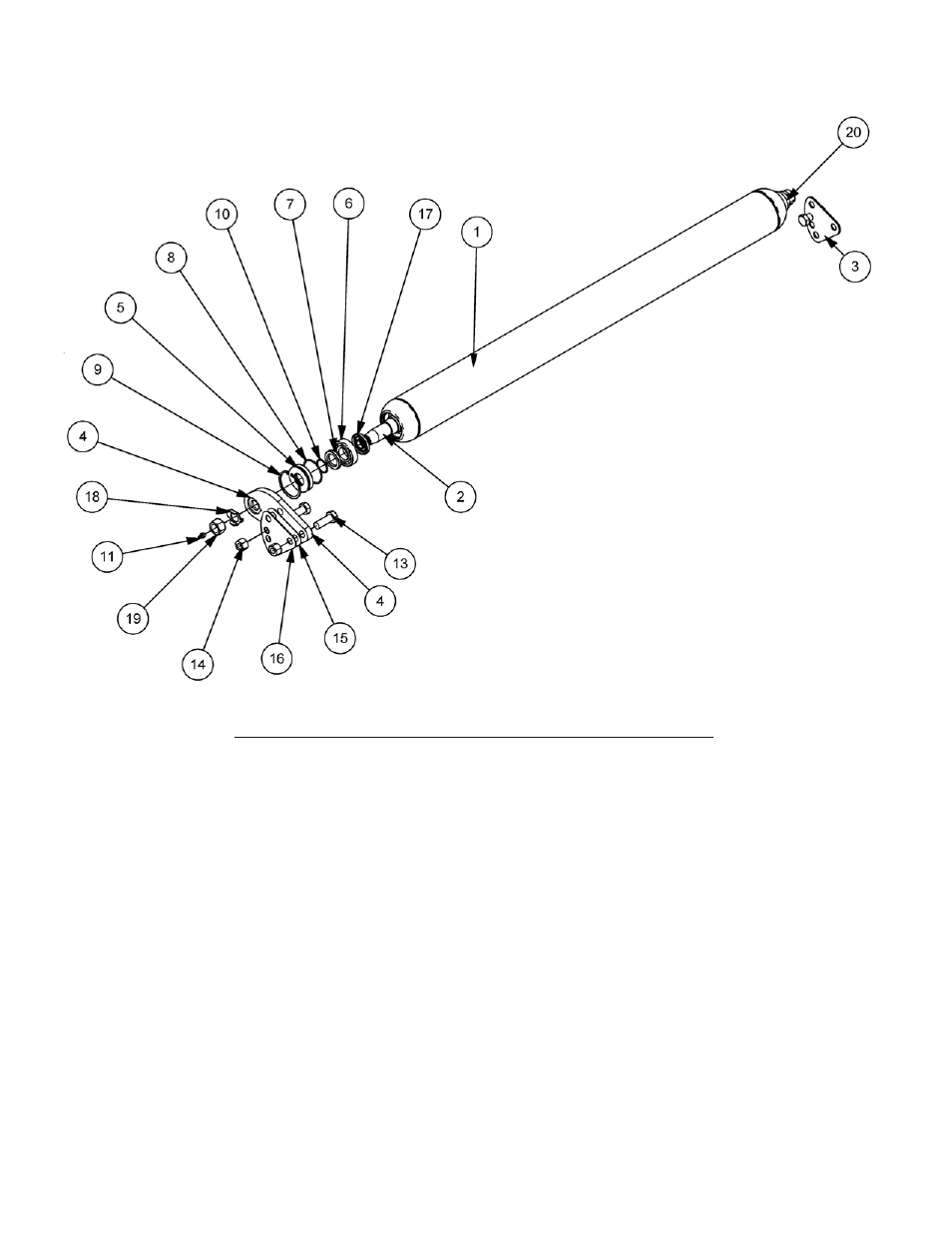

ROLLER 1.2 SUPERCUT
REF. PART
NO. NO. DESCRIPTION QTY.
1 22808.02 Roller Tube 1
2 22808.05 Roller Shaft 1
3 22808.03 Roller Bracket Lh 1
4 22808.04 Roller Bracket Rh 1
5 22808.06 Seal Carrier 2
6 0600111 Deep Groove Ball Brg 30x62x17 2
7 8629215 Seal 2
8 8600422 O Ring 200-138-4490 2
9 0411262 Internal Circlip 62mm Dia 2
10 0412120 1-1/4 Internal Spirolox Ring 2
11 0901121 Grease Nipple,1/8 Straight 2
12 9213117 Bolt M16 X 55 2
13 9313097 M16 X 45 Coarse H.T. 2
14 9143007 Top Lock Nut 16mm-P2.0 Zp 4
15 42257.03 Shim-1.2mm 2
16 42257.04 Shim - 2.0mm 2
17 8629181 Seal,Rotary Shaft Dia 35 2
18 21395.03 Tab Washer-M24 Special 2
19 9100035 Nut M24 Lh Plated 30af 1
20 9100036 Nut M24 Rh Plated 30af 1
