BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
93-1-52
APRIL, 2011

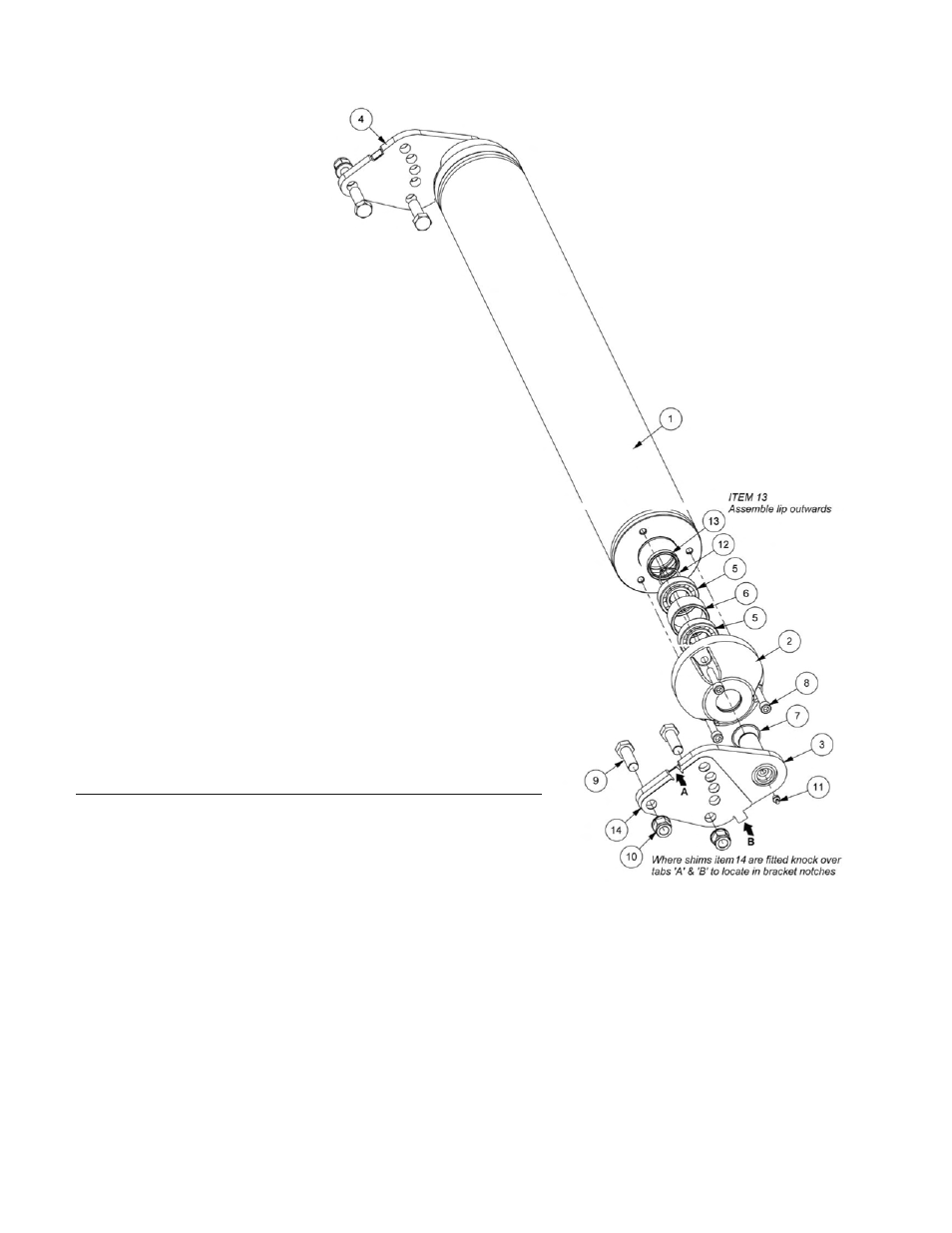

ROLLER ASSEMBLY - MULTICUT
REF. PART
NO. NO. DESCRIPTION QTY.
1 21394.03 1.2m Roller W.Assy 1
2 21394.32 Roller End Cap 2
3 21524.12 Roller Bracket 1
4 21524.13 Roller Bracket 1
5 0600111 Deep Groove Ball Brg 30x62x17 4
6 21523.31 Bearing Spacer 2
7 0402240 1.687" Int.Spirolox Ring 2
8 9343105 M10 X 50 Skt Capscrew Bzp 6
9 9200031 M16 X 1.5 Grade 8.8 Bolt 60 Lg 4
10 9100024 Nut 4
11 0901121 Grease Nipple,1/8bsp-Straight 2
12 0401230 Circlip, External 30mm Dia. 2
13 8629239 Shaft Seal 40x50x7.0 Deep 2
14 42257.10 Shim 1.2m Dms Quad Drive 2
