BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
93-1-5
APRIL, 2011

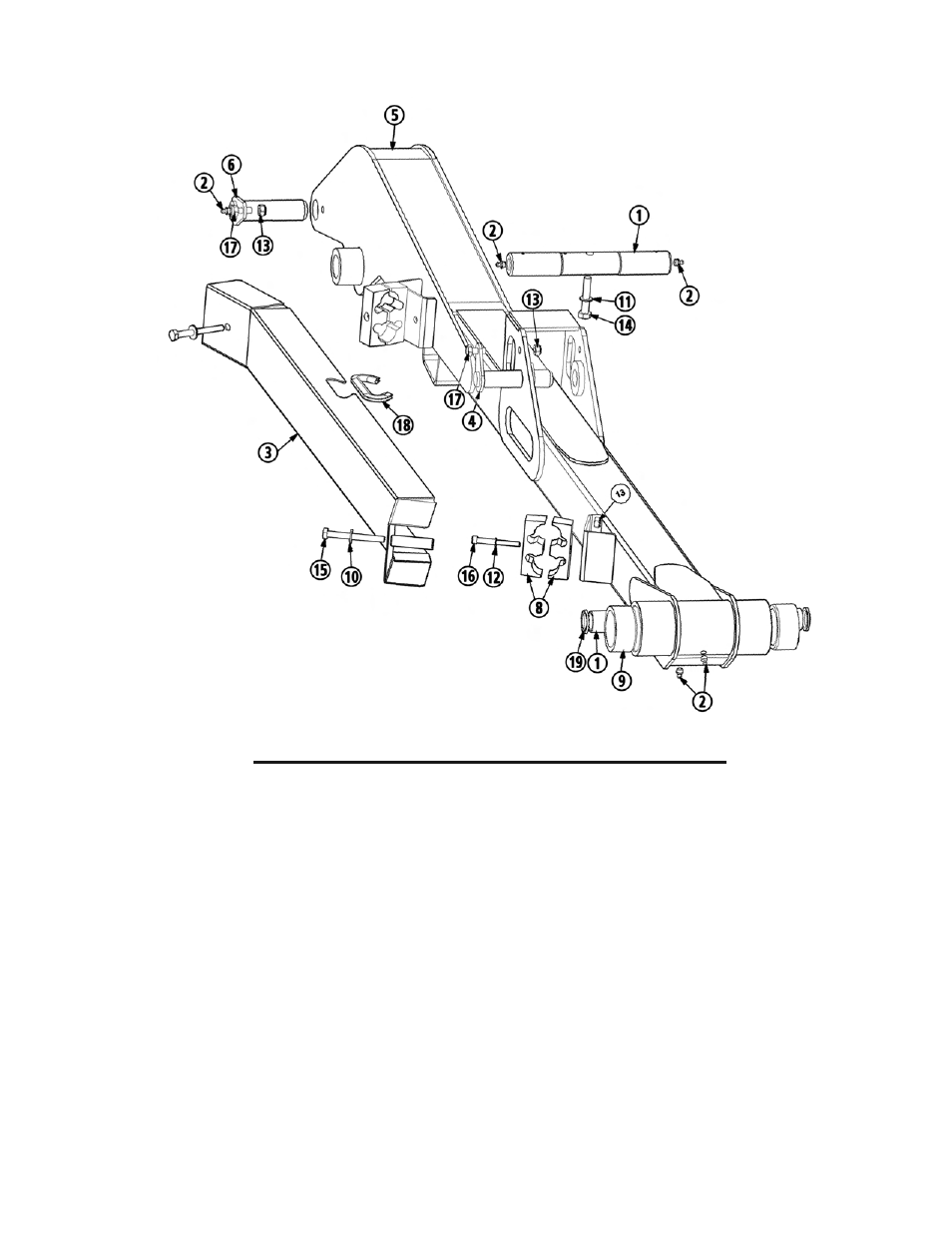

DIPPER ARM
REF. PART
NO. NO.
DESCRIPTION QTY.
1 08.297.04 Bushing 37 X 30 X 30 2
2 0901121 Grease Nipple,1/8 5
3 22522.04 Hose Guard W/A Black 1
4 42684.07 Pin W/A Dipper Ram 1
5 45063.14 RH Dipper Arm W.A. 1
6 45202.01 Pin W/A - T/Link Outer 1
7 45264.03 Main Pivot Pin 1
8 45630.01 Clamp,Hose 4
9 7136035 Bushing,Flail Head 2
10 9100105 Flatwasher, 10.5 X 23.5 X 2.0 2
11 9100206 Lockwasher 12mm 1
12 9100404 Washer, M8 External Shakeproof 2
13 9163005 Nut M10 Nyloc 4
14 9213136 Capscrew M 12-P1.75 X 65mm 1
15 9213205 Capscrew M10 X 100 2
16 9243154 Capscrew M8 X 75 Lg Bzp 2
17 9313055 Capscrew M 10-P1.50 X 25mm 5 2
18 41741.16 Edging Strip - 160mm Lg 1
19 8629218 Seal,Lip 30 X 40 X 4 2
