BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
93-1-45
APRIL, 2011

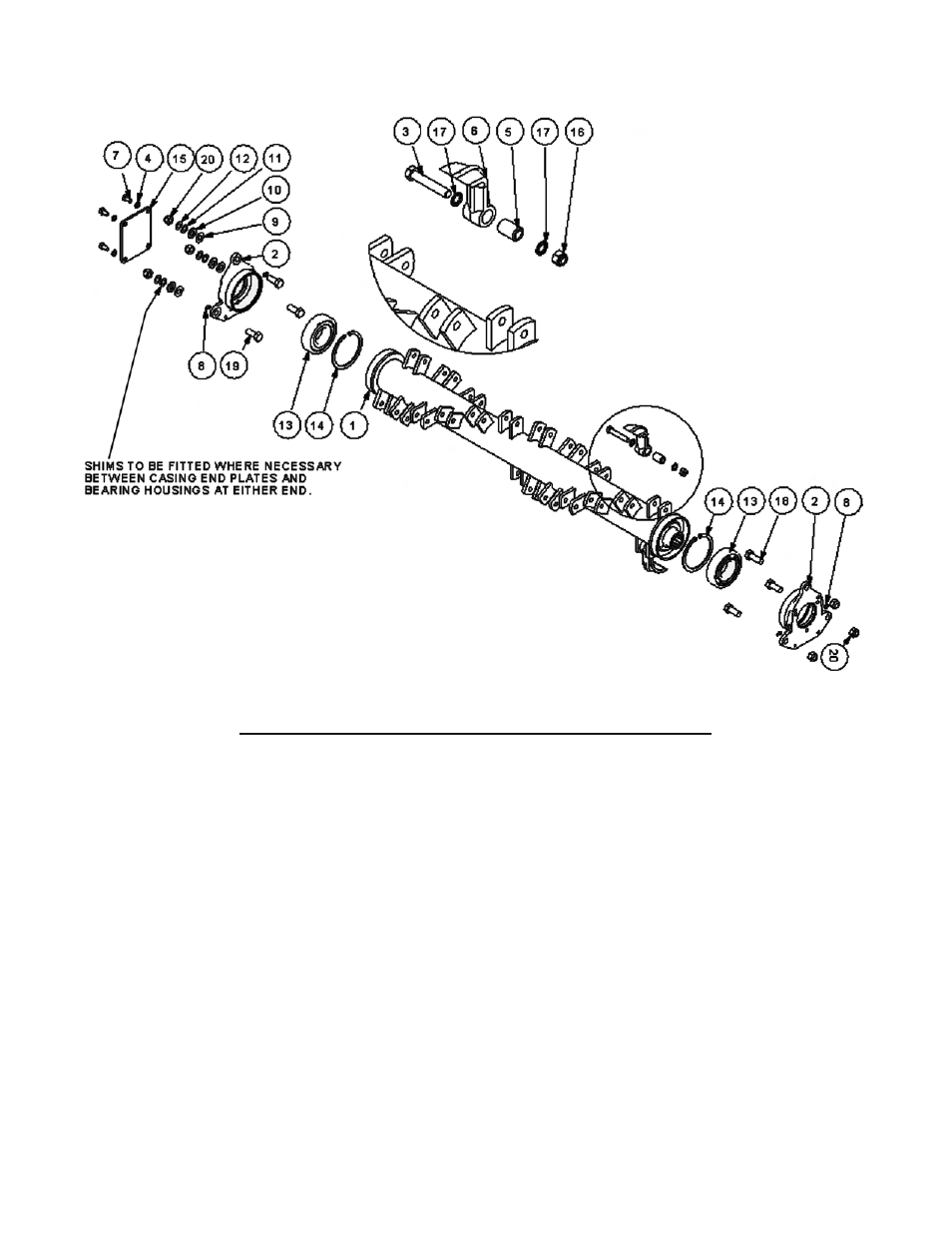

ROTOR MODULE - SUPERCUT
REF. PART
NO. NO. DESCRIPTION QTY.
1 7191382 Weldmt, Rotor 1.2m W/A 12 Row 1
2 7190261 Housing Bearing 2
3 7191109 Flail Bolt 24
4 9100205 Washer, Spring- 10mm Dia. Bzp 4
5 7191054 Spacer, Cast Flail 24
6 7198390 Single Edge Flail Knife 24
7 9313045 Capscrew M10-P1.5 - 20mm 5 4
8 0901125 Grease Fitting 1/8 4
9 7191098 Shim, 1.5 Thick 3
10 7191099 Shim, 2.5 Thick 3
11 8121043 Spacer, Thin- Ref. 96-033 5
12 8121044 Spacer Thick 5
13 0600018 Bearing 55x120x29mm 1r.15 2
14 7190022 120 Internal Circlip D1300-12 2
15 7190444 Plate,Cover 1
16 02716500 Locknut, Toplock 1/2" - 20 24
17 0100305 Washer, Serrated Int.1/2 Dia. 48
18 0311146 Hhss 5/8UNF 1-3/4ht 1
19 0311126 Hhss 5/8UNF X 1-1/2grs 5
20 00749136 Locknut, Toplock 5/8" UNF 6
