24

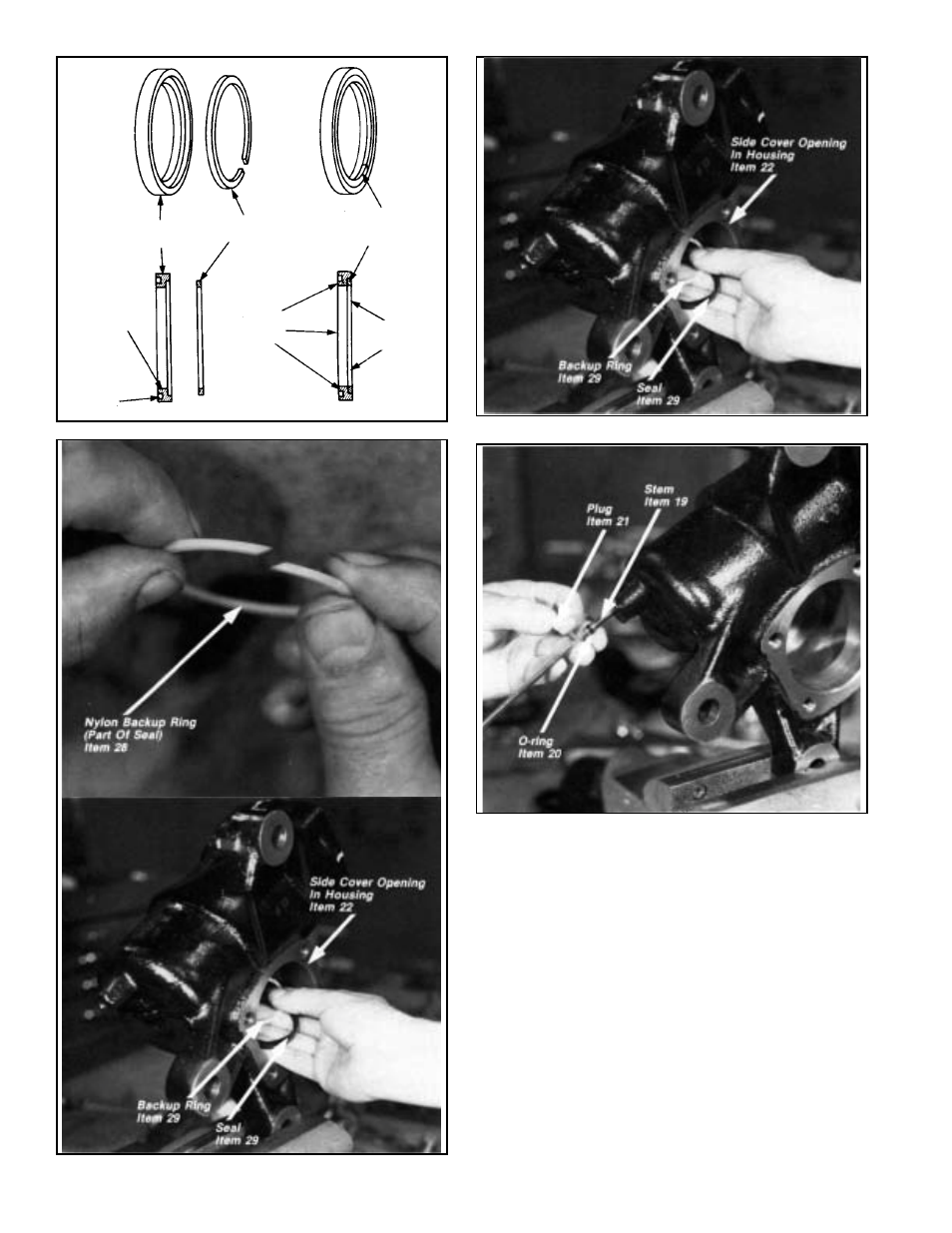

FIGURE 51 - INSTALLING HOUSING OUTPUT SHAFT SEAL
FIGURE 53 - INSTALLING OUTPUT SHAFT ROLLERS IN
HOUSING
FIGURE 50 - DETAIL OF SEAL & BACKUP RING ASSY.
PRESSURE
SEALING LIP
FOR O.D.
FIGURE 52 - INSTALLING STEERING LIMITING STEM
spindle should rotate freely and will begin to thread into
or out of the piston depending upon the direction of
spindle rotation.
Note: Hold the ball return tube firmly in place when rotating
the spindle.
22. While FIRMLY HOLDING THE BALL TUBE (35) IN
PLACE insert as many of the balls(9) through the
opening in the ball tube as possible. Rotate the input
shaft (3) slightly to make room for each ball that is
inserted. (Note: As the spindle is rotated the ball tube
may tend to rise out of the holes in the piston.)
Continue to insert balls until ALL TWENTY-SIX HAVE
BEEN INSTALLED. Figure 49 Lightly grease the sealing
surfaces of the tube cover(24) and install it in the piston
PRESSURE
SEALING LIP
FOR I.D.
BACKUP RING
ITEM 28
SEAL
ITEM 29
BACKUP RING INSTALLED
IN NON-PRESSURE SIDE
OF SEAL
NON-PRESSURE
SIDE OF SEAL
PRESSURE
SIDE OF SEAL
