10
3
4
5
6
7
8
9
1
2
14
15
16
11
12
17
19
18
28
28
29
53
13
46
47
51
42
43
41
23
24
25
26
27
20 21
22
44
37
38
40
36
39
35
45
49
34
32
31
54
29
30
33
9
35
9
50
48
9
26
17
18
9
7
21
20
19
10
52
A
1
B
2
C-500N
DETAIL
OF
VALVE
BODY
AND
STEERING
LIMITING
STEM
ALTERNATE
BALL
RETURN
TUBE
STYLE
FOR
C-300/N/C-500N

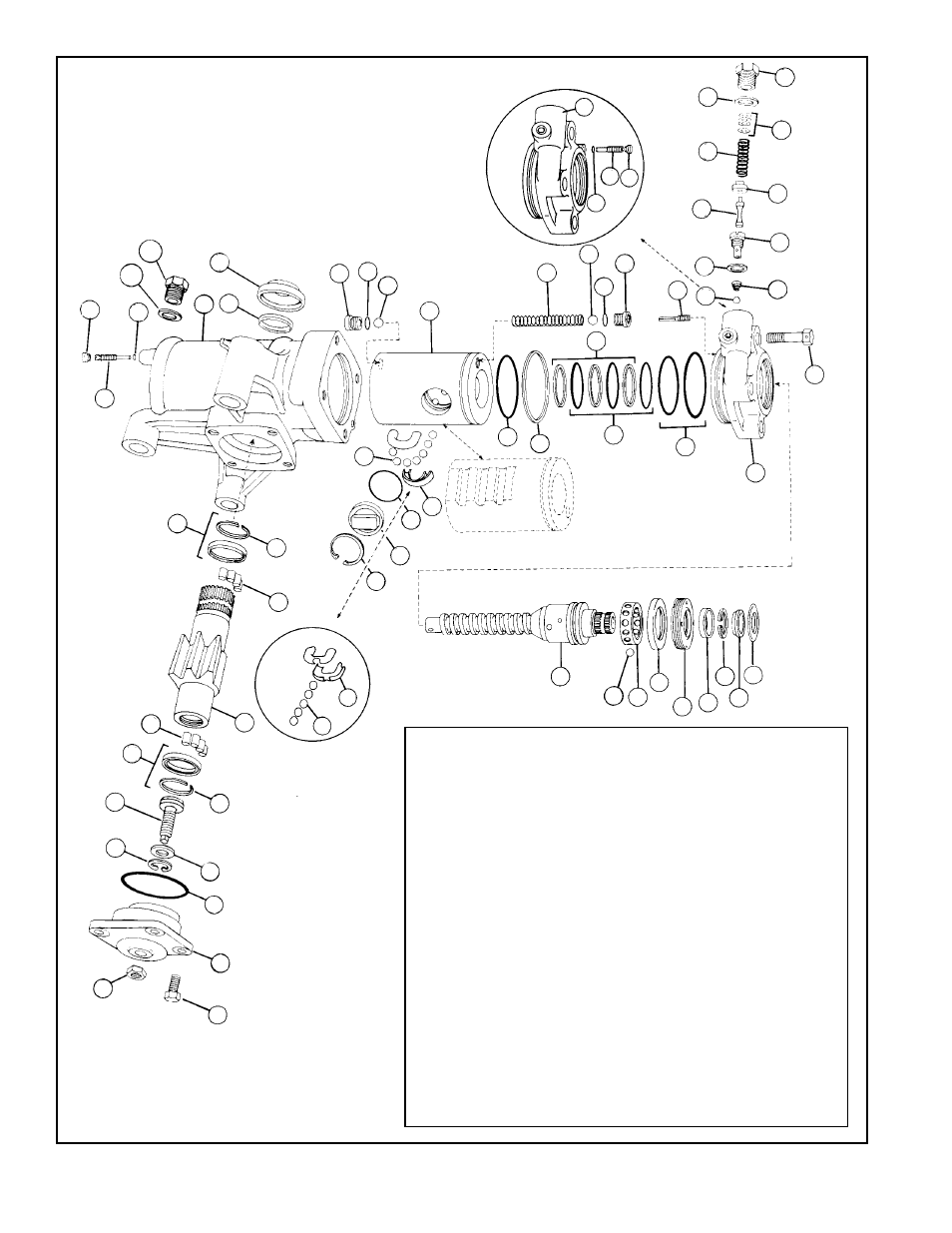

FIGURE 7 - C-300N / C-500N POWER STEERING GEAR
1. Valve Nut
2. External Dust Seal
3. Spindle Assembly
4. Internal Dust Seal
5. Seal
6. Ball Cage
7. Valve Body
8. Ball Race
9. Ball
10. Teflon Ring
11. O-Ring
12. O-Ring
13. Steering Limiting Stem
14. Seal Ring
15. O-Ring
16. Spring
17. Valve Seat
18. Sealing Washer
19. Steering Limiting Stem
20. O-Ring
21. Plug
22. Housing
23. Piston
24. Tube Cover
25. Output Shaft
26. Rollers
27. O-Ring
28. Backup Ring
29. Seal & Backup Ring
30. Retaining Ring
31. Side Cover
32. Nut
33. Adjusting
34. Adjusting Screw Spacer
35. Ball Tube
36. Retaining Ring
37. O-Ring
38. Dust Seal
39. Dust Boot
40. Bolt
41. Adjusting Shims
42. Pressure Relief Valve Plug
43. Spring
44. Sealing Washer
45. Spring Seat
46. Valve Piston
47. Seal Washer
48. Valve Seat
49. Bolt
50. Retaining Ring
51. Bypass Valve Spring
52. Bypass Ball Valve
53. Seal Washer
54. Drain Plug
POWER STEERING PARTS LIST
