18

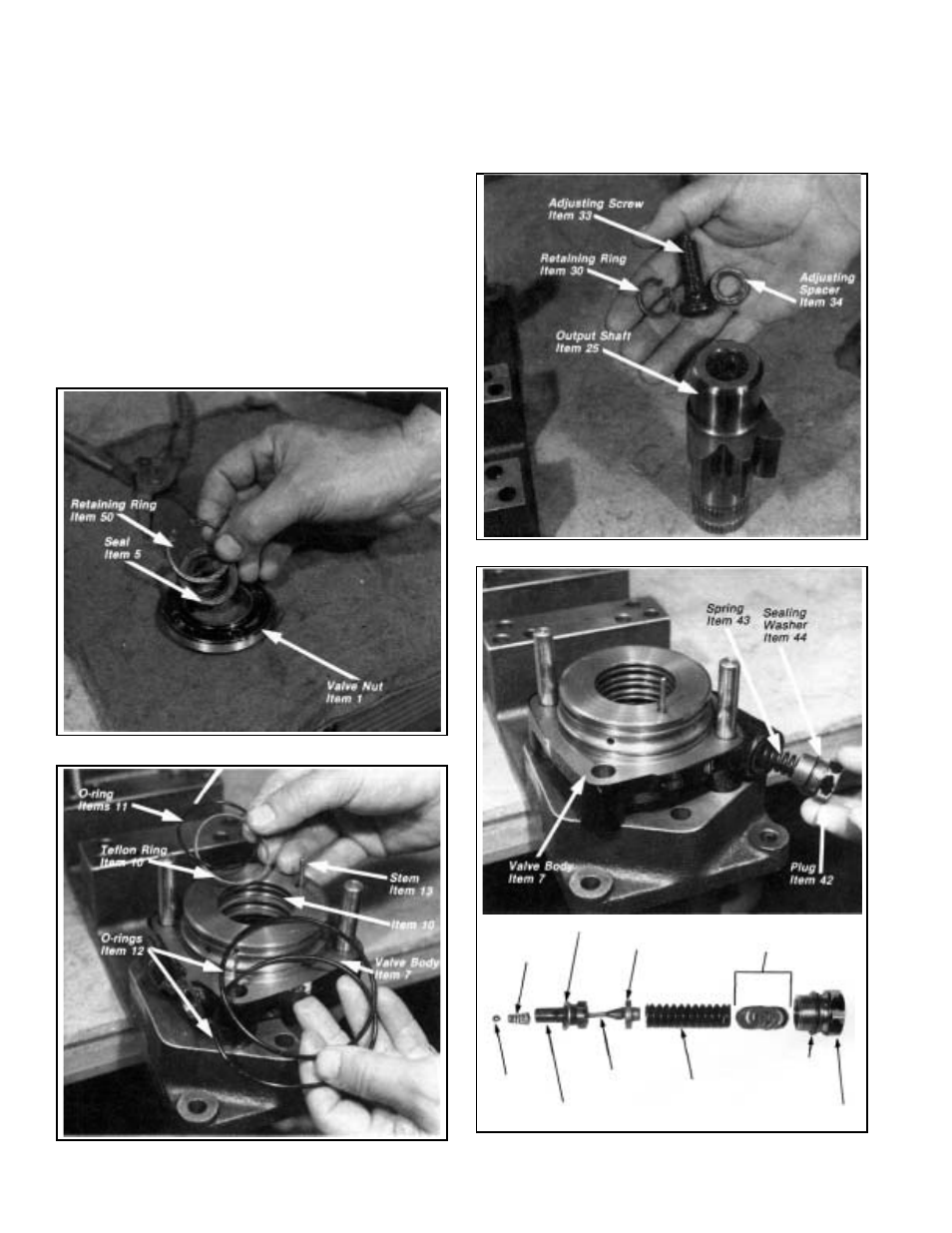

FIGURE 39 - OUTPUT SHAFT & ADJUSTING SCREW
FIGURE 40 - PRESSURE RELIEF & BYPASS VALVE
COMPONENTS
SPRING
ITEM 43
SEALING WASHER
ITEM 44
PLUG
ITEM 44
SHIMS
ITEM 41
FIGURE 38 - VALVE BODY SEALS & O-RINGS
FIGURE 37 - VALVE NUT SEAL
23. Separate the outer race (8), ball cage (6) and 17 balls
(9) from the spindle assembly (3). Figure 36
24. Do not remove the other half of the ball bearing outer
race (8) in the valve body.
25. Remove the retaining ring (50) and then the seal (5) from
the valve nut (1). Figure 37
26. Remove the two outside O-rings (12) from the valve
body, then remove the three Teflon rings (10) and the
corresponding three O-rings (11) from the spindle bore.
Figure 38
OUTPUT SHAFT DISASSEMBLY
27. Remove the retaining ring (30), the adjuster screw spacer
(34) and the adjuster screw (33) from the output shaft
(25). Figure 39
VALVE
PISTON
ITEM 46
SEAT
ITEM 48
BYPASS
VALVE BALL
ITEM 52
SPRING
ITEM 51
SEAL ITEM 47
SPRING SEAT
ITEM 45
