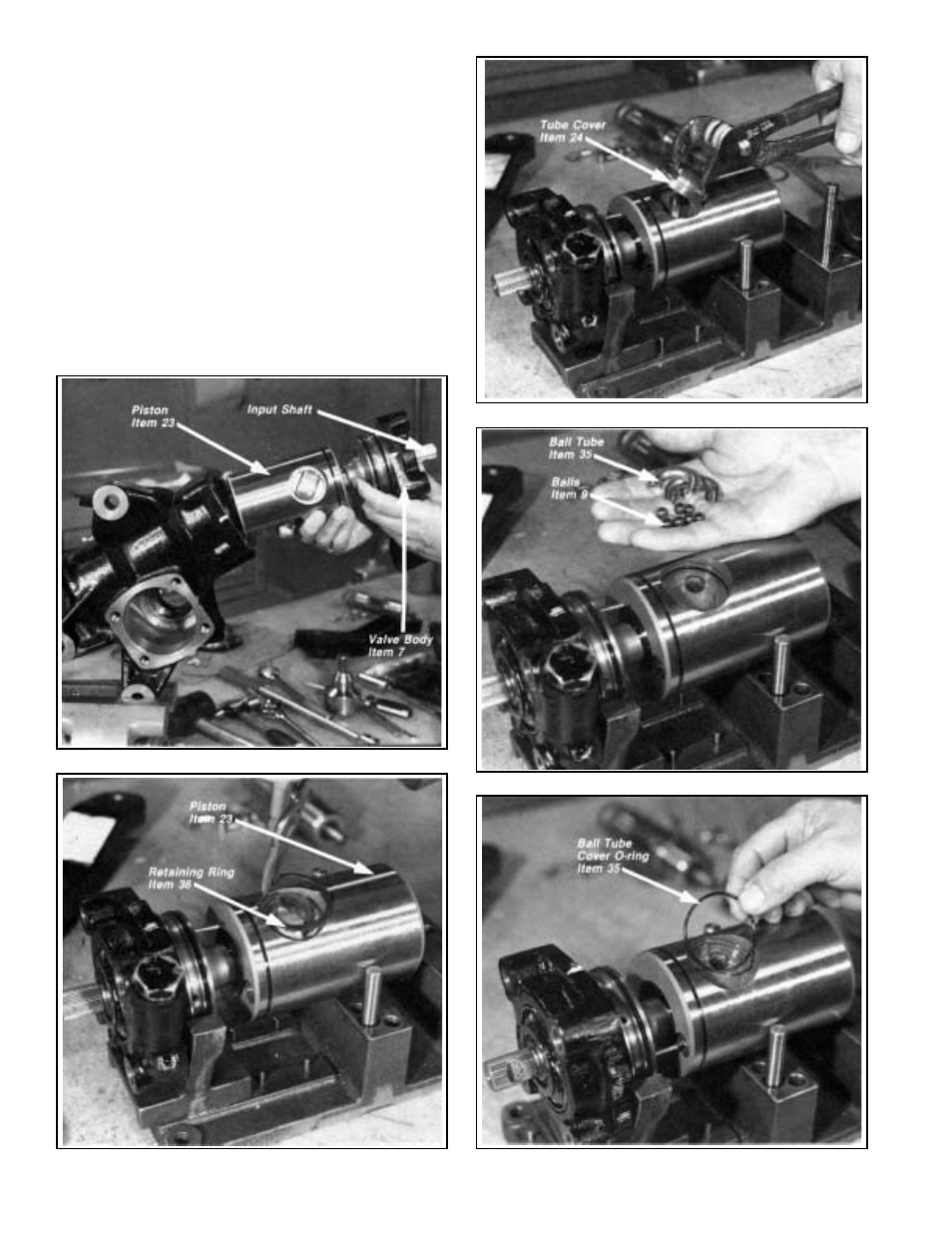

FIGURE 21- TUBE COVER DISASSEMBLY/ASSEMBLY
FIG. 23 - DISASSEMBLY/INSTALLATION BALL TUBE & BALLS
FIGURE 24 - BALL TUBE COVER O-RING
FIGURE 20 - PISTON REMOVAL/INSTALLATION
FIGURE 22 - TUBE COVER DISASSEMBLY/ASSEMBLY
PISTON REMOVAL & DISASSEMBLY
9. While preventing rotation of the input shaft end of the
spindle assembly (3), pull the valve body (7) and piston
(23) out of the housing (22). Figure 20
10. Remove the retaining ring (36), ball tube cover (24), the
ball tube (35), and 7 of the 26 balls (9) from the piston(23).
Remove the sealing ring(37) from the piston. Note: Bendix
holding fixture 297678 which is pictured is a convenience
but not a necessity for disassembly. Figures 21 to 24
11. In order to remove the remaining 19 balls (9) from piston,
rotate the input shaft in the direction (clockwise or
counterclockwise) that threads the spindle assembly OUT
OF THE PISTON.
