-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING

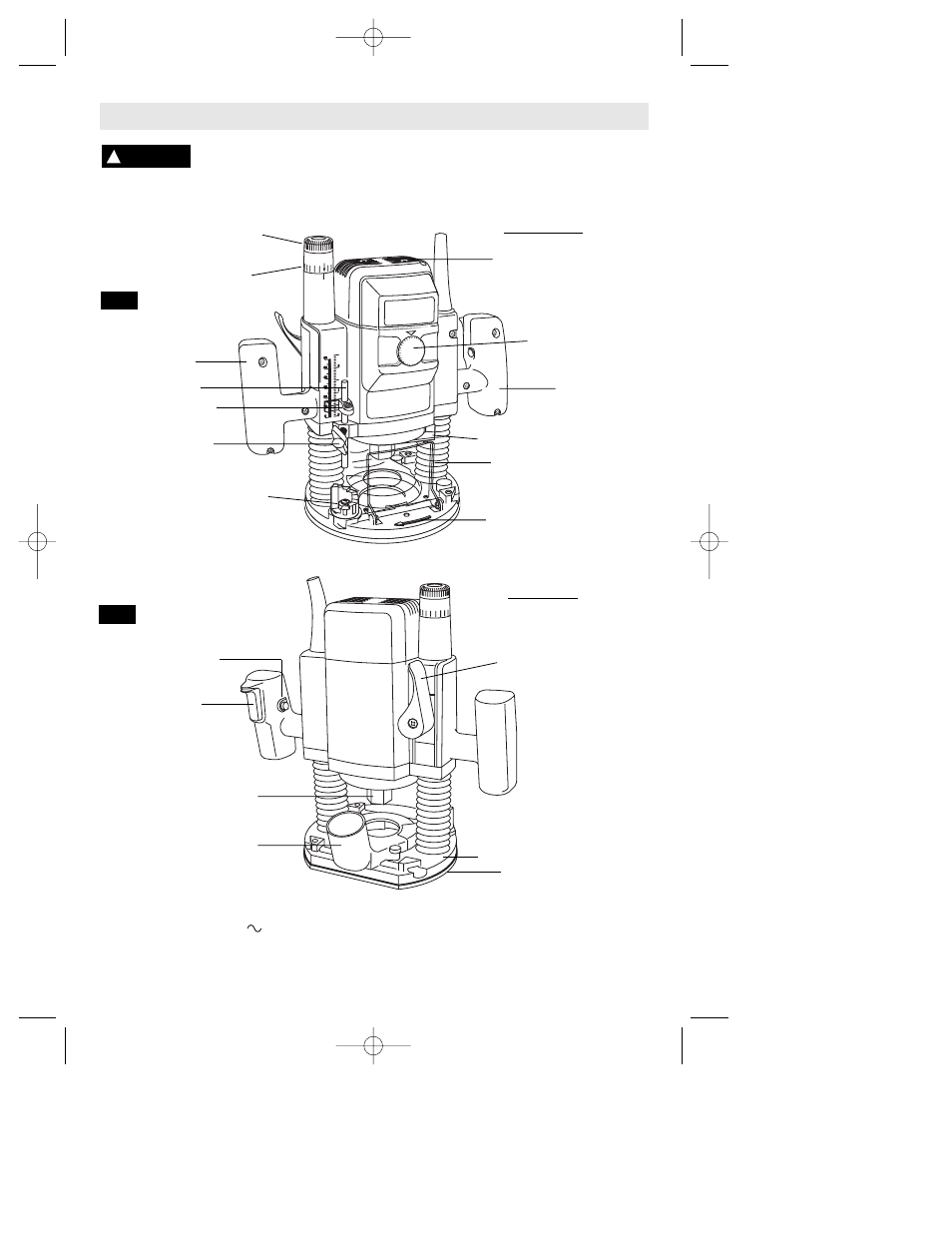

FIG. 1
FIG. 2
VENTS
SPEED
CONTROL DIAL
BASE
RIGHT HANDLE
DIRECTION OF BIT
ROTATION
LEFT
HANDLE
FINE ADJUSTMENT
KNOB
“LOCK-ON”
BUTTON
ON/OFF TRIGGER
SWITCH
PLUNGE LOCK
LEVER
SPINDLE LOCK
DEPTH ROD
DEPTH INDICATOR
DEPTH INDICATOR
KNOB
CHIP SHIELD
BACK VIEW
FRONT VIEW
Router
Model number: 1613AEVS
Voltage rating: 120 V 50 - 60Hz
Amperage rating: 12 A
No load speed: n
0
11,000-22,000/min
Collet capacities: 1/4", 3/8", 1/2", 8mm
DEPTH STOP
TURRET
COLLET
CHUCK
DUST EXTRACTION HOOD
FINE ADJUSTMENT
INDICATOR
SUB-BASE
