DUST COLLECTION WHILE
EDGE FORMING

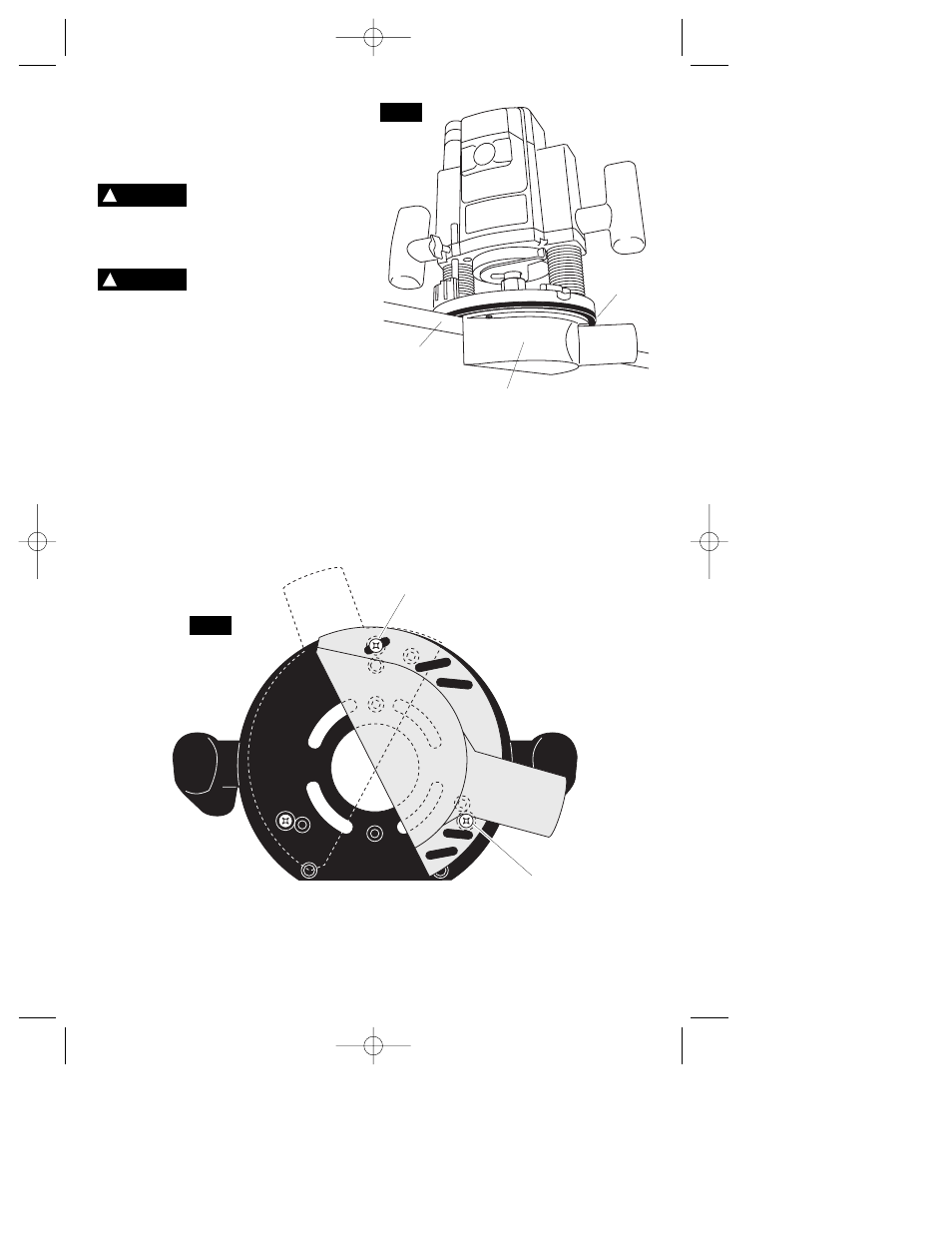

The RA1170 dust extraction hood (optional
accessory) is used for dust collection when
edge-forming (Fig. 13).
Read and understand these
instructions and tool
manual for use of these accessories.
Do not reach in area of the bit while the
router is ON or plugged in.
To avoid entangling hoses,
do not use this dust
extraction hood at the same time as any
other dust extraction hood.
ATTACHING DUST EXTRACTION HOOD
You can attach the hood in several places
according to your needs or preferences. This
hood is attached using two of the screw holes
on the router base that are used to attach the
router’s sub-base. Choose the desired
location for the hood. Loosen and take out
the two screws from the router base and
attach the dust extraction hood — over the
router’s sub-base — using the screws
provided with the hood. Securely tighten the
screws (Fig. 14).
The dust extraction hood itself is sized to
accept 35mm vacuum hoses. Also included is
the VAC002 adapter that will connect the
hood to 1-1/4’’ and 1-1/2’’ vacuum hoses.
-12-
DUST
EXTRACTION
HOOD
ROUTER
SUB-BASE
WORKPIECE
EDGE
! WARNING
! CAUTION
4mm x 16mm
SCREW
SUB-BASE
DUST
EXTRACTION
HOOD
4mm x 16mm
SCREW
FIG. 14
FIG. 13
