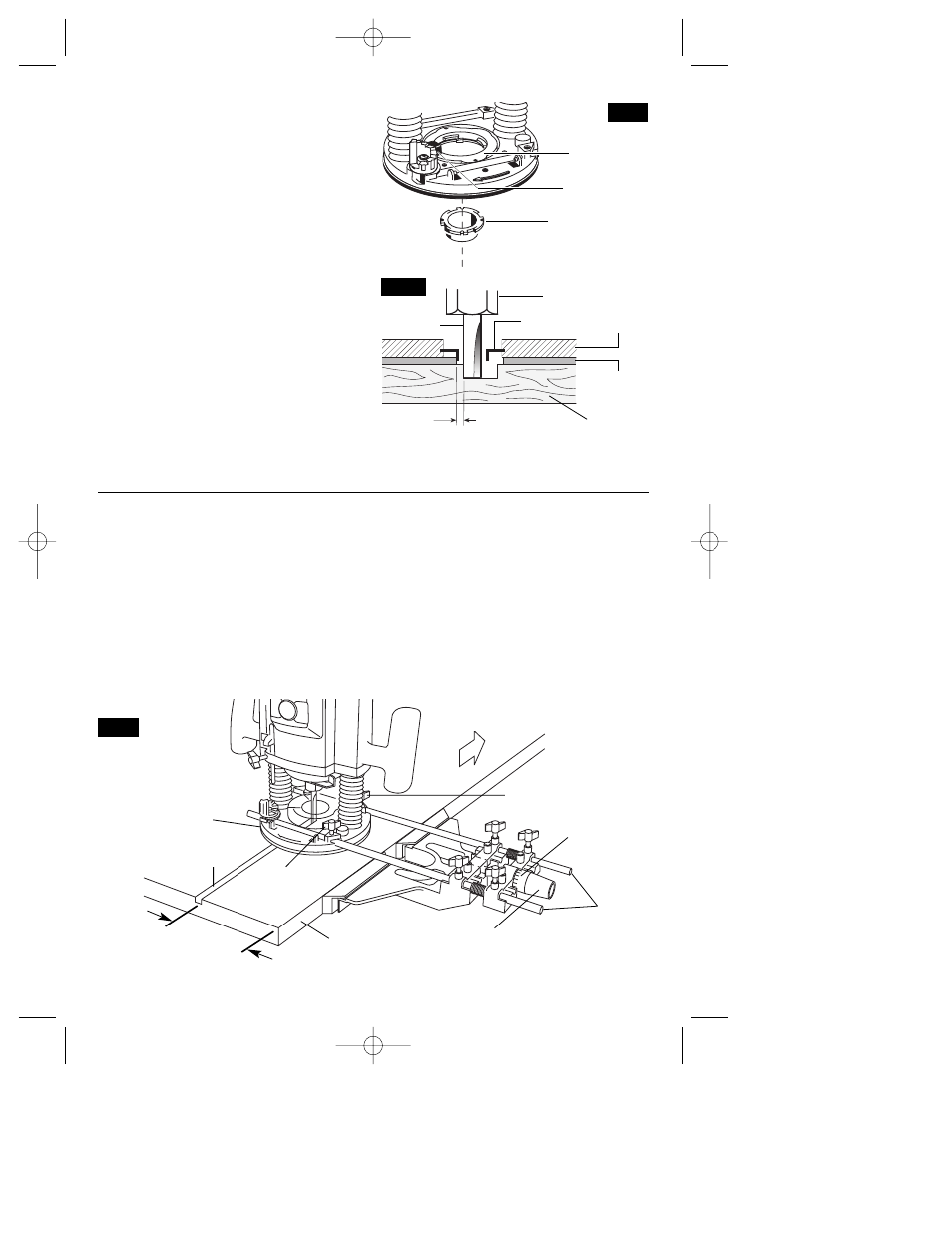

TEMPLET GUIDES
The router is equipped with an exclusive
quick-change templet guide adapter, which
firmly grips the guides with a spring-loaded
ring. To insert or change the templet guide,
retract the templet guide release lever. Align
the cutaways on the templet guide with the
tabs on the bottom of the templet guide
adapter. Insert the templet guide and
release the lever to grip the templet guide in
place (Fig. 17).
Templet guides are used with a number of
special accessories, such as hinge templets,
which are listed in your BOSCH catalog. In
addition, special templets are easily
prepared for cutting repeated patterns,
special designs, inlays, and other
applications. A templet pattern may be
made of plywood, hardboard, metal or even
plastic, and the design can be cut with a
router, jigsaw, or other suitable cutting tool.
Remember that the pattern will have to be
made to compensate for the distance
between the router bit and the templet guide
(the “offset”), as the final workpiece will differ
in size from the templet pattern by that
amount, due to the bit position (Fig. 18).
-14-
TEMPLET GUIDE
(optional accessory)
TEMPLET GUIDE
ADAPTER
TEMPLET GUIDE
RELEASE LEVER
FIG. 17
COLLET CHUCK
WORKPIECE
ROUTER BIT
OFFSET
TEMPLET
GUIDE
TEMPLET
PATTERN
FIG. 18
ROUTER
SUB-BASE
DELUXE ROUTER GUIDE
(Not included, available as accessory)
The Bosch deluxe router guide is an optional
accessory that will guide the router parallel to
a straight edge or allow you to create circles
and arcs.
The deluxe router guide is supplied with two
rods and six thumb screws to fasten the
guide (Fig. 19). In addition, it features a fine
adjustment knob and indicator for accurately
positioning the edge guide relative to the bit.
With the guide installed and adjusted, the
router should be fed normally, keeping the
guide in contact with the edge of the
workpiece at all times. The deluxe router
guide may also be positioned directly under
the router base for operations where a cut is
needed close to or at the edge of the work.
For complete instructions on installation and
operation, please refer to the instructions
which are included with this accessory.
FIG. 19
DESIRED
WIDTH
CUT
BASE
WORKPIECE
ROUTER
GUIDE
RODS
THUMB
SCREW
THUMB SCREW
FINE
ADJUSTMENT
KNOB
FINE ADJUSTMENT
INDICATOR
FEED
DIRECTION
