Autocue WINCUE User Manual
Page 17
WINCUE USER GUIDE
CHAPTER 3 – CONNECTING WINCUE PERIPHERALS
17
AUTOCUE LTD. 2002
The foot scroll control is used for controlling the speed and direction of the prompted text only. All other functions
such as next marker and reset rundown are available by using the buttons of the Multibutton scroll controller.
The
red
button is used for changing the direction of the prompted text. The foot pedal controls the speed.
3.2
Laptops
When the software has been installed and the PC turned off the laptop can be connected to the I.M.T. box.
Insert the PCMCIA SCSI card into your laptop
Connect one end of the SCSI cable supplied with the SCSI card to the PCMCIA card and the other to the SCSI
port on the I.M.T. box
Connect a power cord to the appropriate input of the I.M.T. box (you have a choice of IEC mains or 12V DC)
3.2.1 Connecting a Scroll Control
Laptops normally use the I.M.T. scroll control. The I.M.T. scroll control port is the 9 pin analogue port on top of the
I.M.T. box. WinCue expects a scroll control to be connected to this port.

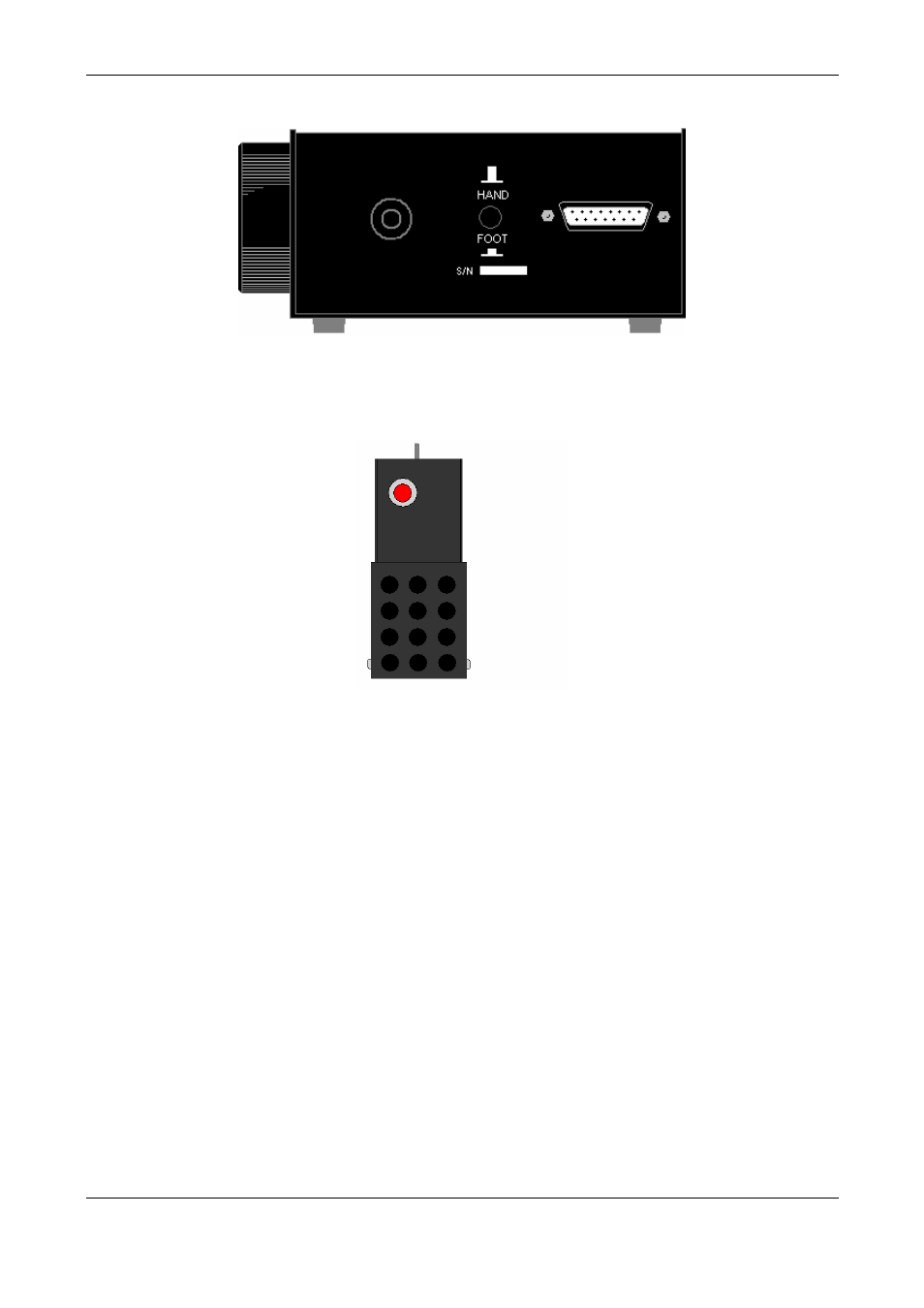

The rear of the
Multibutton Scroll
Controller
The foot control can also
be connected direct to
the IMT 9 pin connector
for stand alone use
