Rockwell Automation 20D PowerFlex 700S/700H Frame 10...14 Drives Maintenance Stand User Manual
Page 7

7
Publication PFLEX-IN014B-EN-P

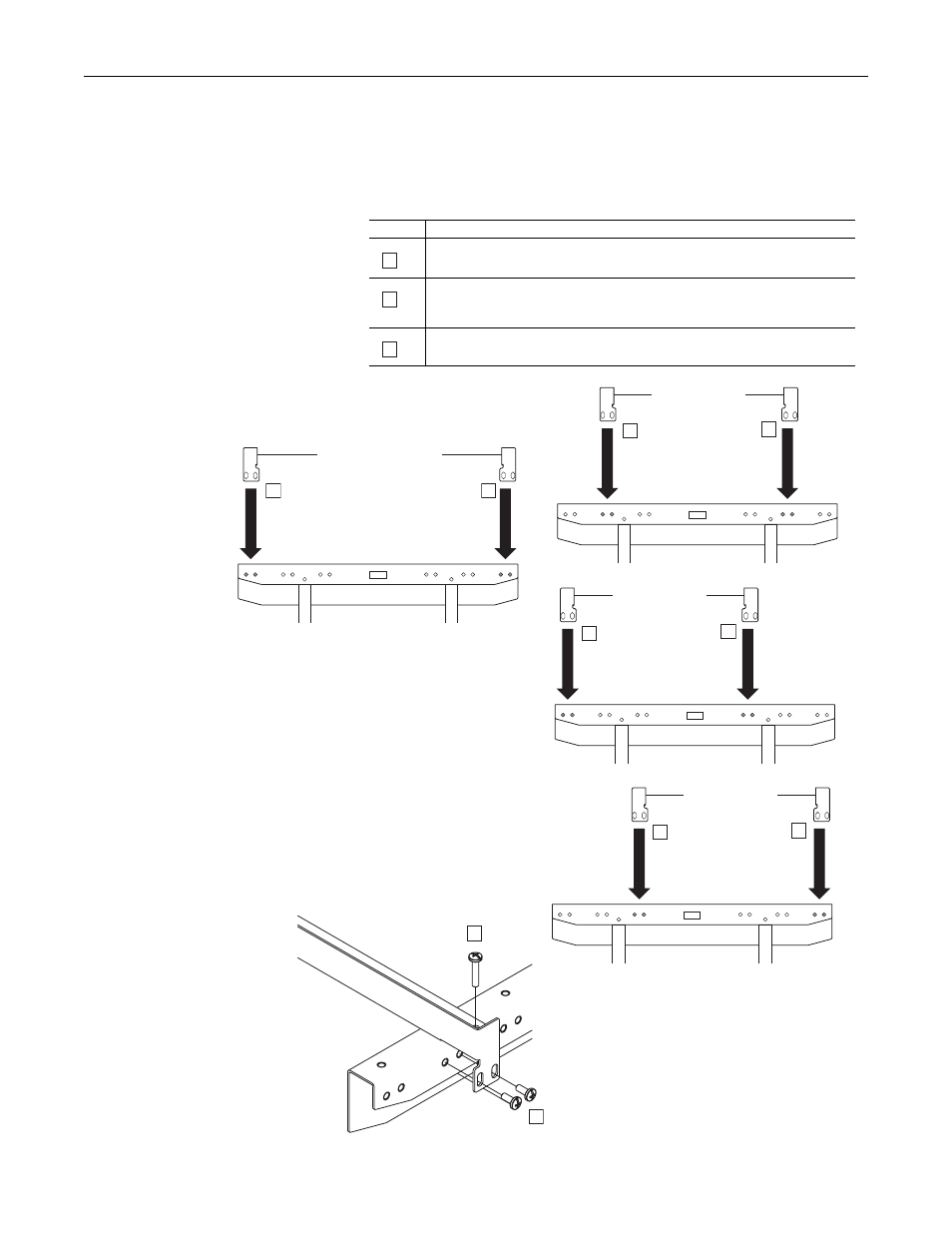

Step 5: Attach the Rail
Assemblies to the Top of the
Stand
Frame 11, 13 or 14
Rail Separation
Task
Description
Align the rails with the proper holes on top bracket.
Secure the rails to the top bracket using the M8 x 40 Phillips head on the tops of the
rails.
Proper tightening torque is 7 N•m (62 lb•in).
Install and tighten the M8 x 20 Phillips head screw on the back of the top bracket.
Proper tightening torque is 7 N•m (62 lb•in).
A
B
C
Frame 10 or 12
Rail Separation
A
A
A
A
B
C
Frame 10 or 12
Rail Separation
A
A
Frame 10 or 12
Rail Separation
A
A
or
or
Top Bracket
Top Bracket
Rail
