Step 2: Assemble the Rails
LEFT
FR10
FR12
LEFT
FR11
LEFT
FR13
FR14
RIGHT
FR10
FR12
RIGHT
FR11
RIGHT
FR13
FR14

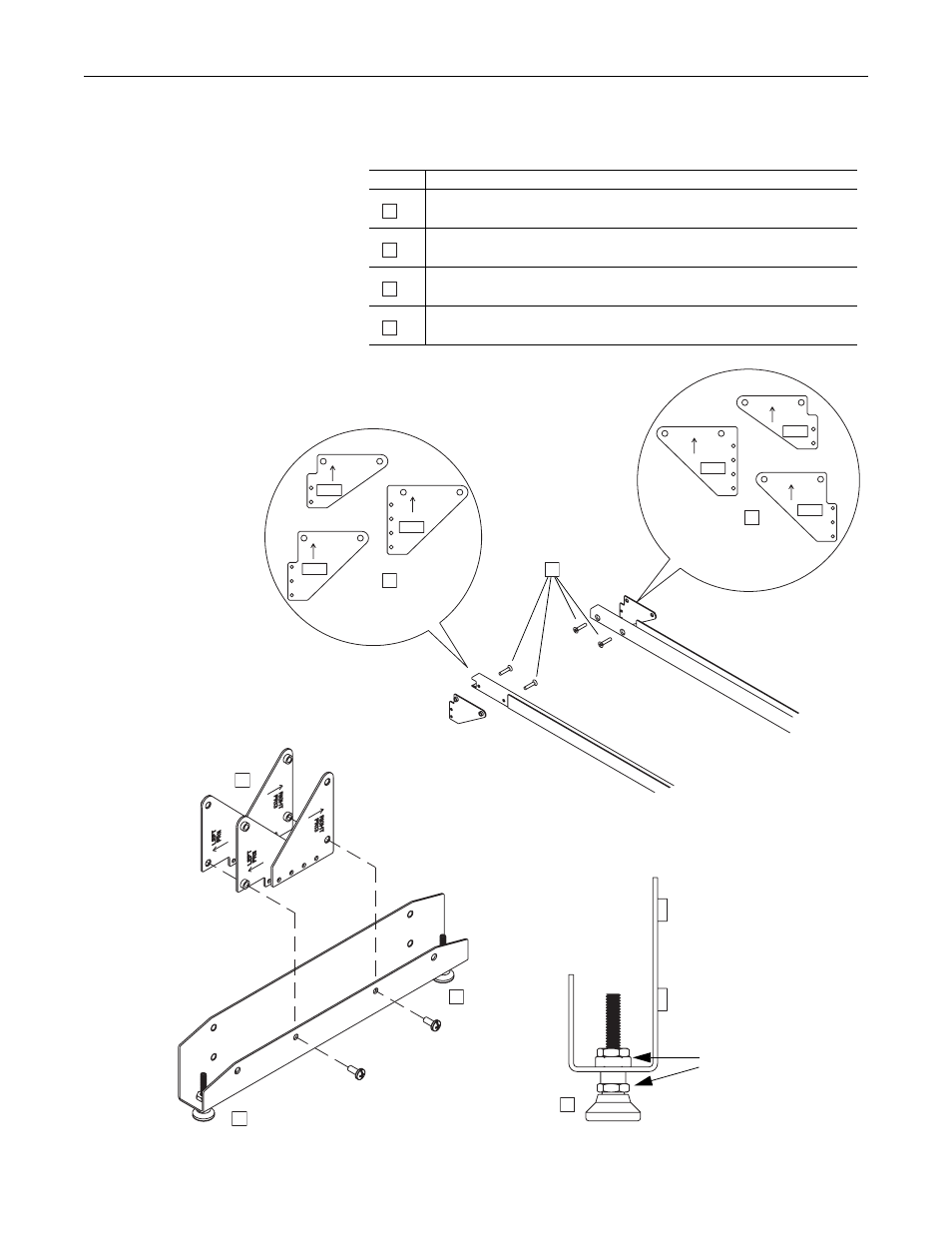

Task
Description
Select the proper left and right mounting plates, based on drive frame size.
Attach the mounting plates to the rails using the M8 x 50 Phillips® head screws.
Proper tightening torque is 7 N•m (62 lb•in).
Store the unused mounting plates on the base of the stand.
Use the M8 x 20 Phillips head screws to secure mounting plates to base.
Install the feet onto the base of the stand.
A
B
C
D
A
A
B
C
D
D
D
Jam nut locations
Mounting Plates
Mounting Plates
Rail
Rail
Base
