Rockwell Automation Publication IASIMP-QS024B-EN-P - December 2012
25
Prepare the CompactLogix 5370 L1 Controller Hardware Chapter 1

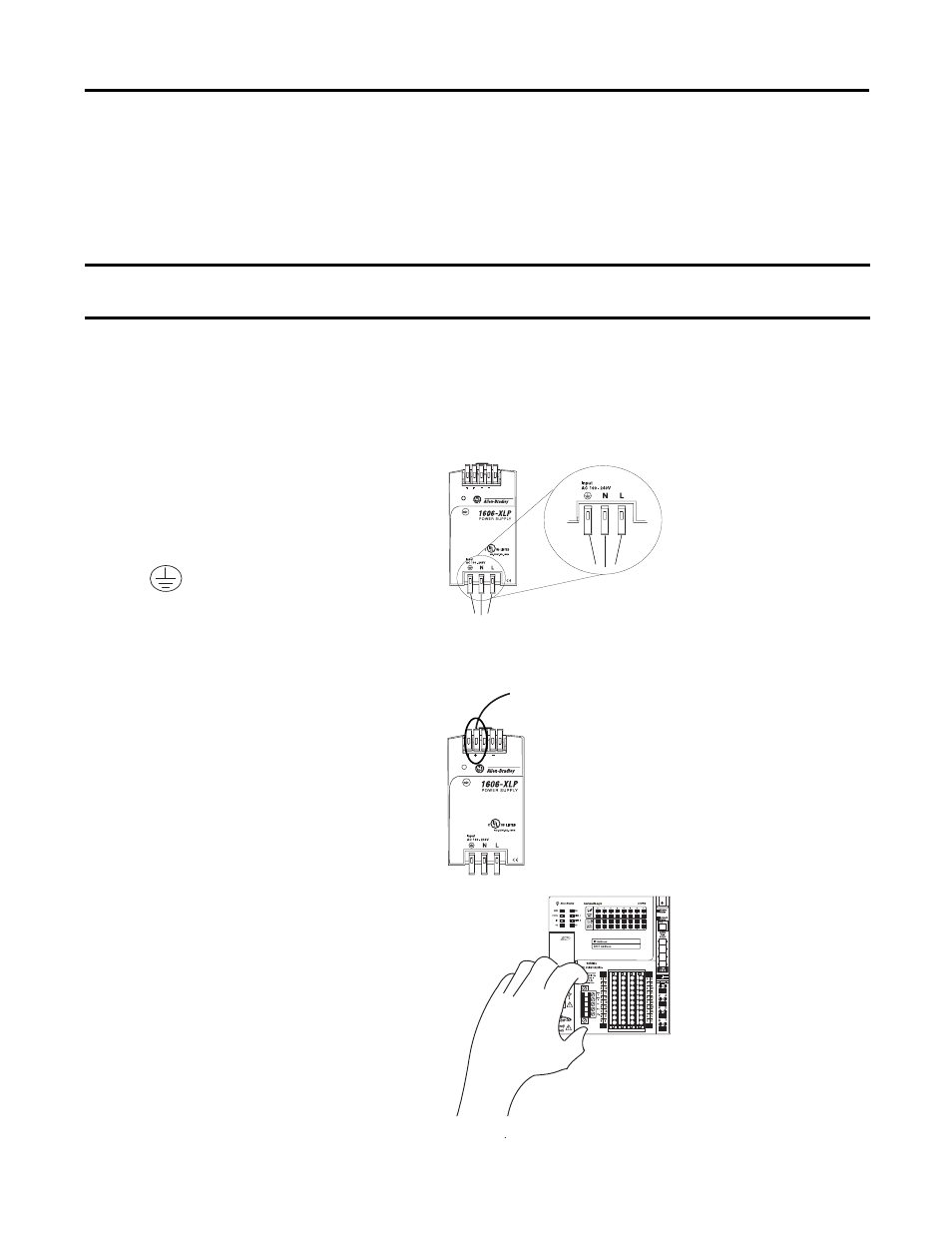

Wire Power to the Controller
This quick start uses a 1606-XLP50E NEC Class 2/SELV switched-mode power supply to
power the CompactLogix 5370 L1 controller.
1. Verify that input power to the external power supply is turned off.
2. Mount the power supply on the DIN rail.
3. Wire input power to the power
supply using the following
terminals:
•
(ground)
•
N (neutral)
•
L (line)
4. Connect a wire to the 24V DC+
terminal on the top of the
power supply.
5. Pull the removable connector off
of the CompactLogix 5370 L1
controllers.
IMPORTANT
This section describes how to wire power to the controller. Note that the controller is grounded by its connection to the
DIN rail.
24-
28V
DC 24-28V
DC
ok
50W max.
DC ok
NEC Class 2
Power Supply
24-
28V
DC 24-28V
DC
ok
50W max.
DC ok
NEC Class 2
Power Supply
