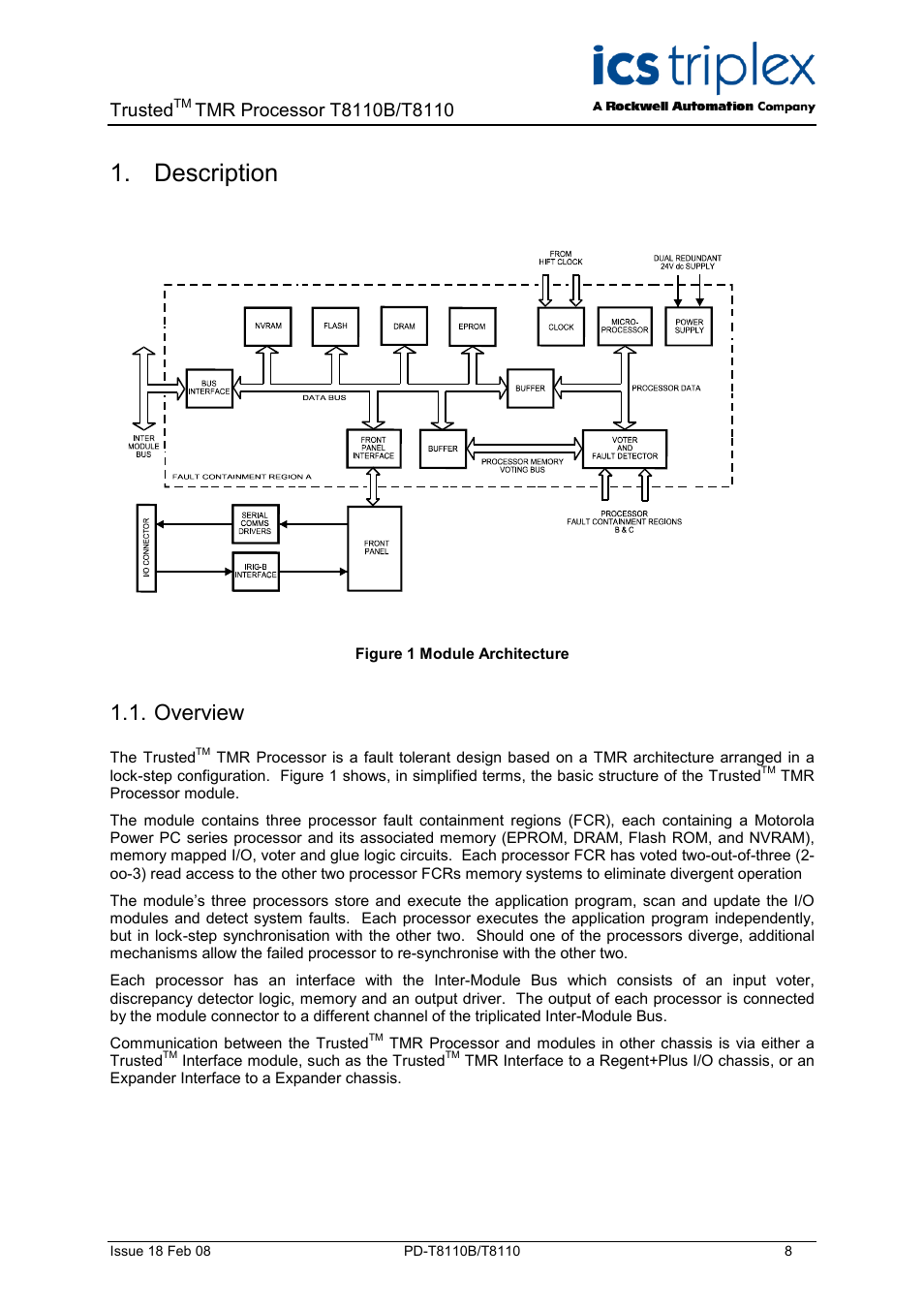

Overview, Description, Figure 1 module architecture – Rockwell Automation T8110B/T8110 Trusted TMR Processor User Manual
Page 8: Trusted
