1. Description
The TMR Isolated 4-20 mA Analogue Input module is a member of the Trusted
TM
range of Input/Output
(I/O) modules. All Trusted
TM
I/O modules share common functionality and form. At the most general
level, all I/O modules interface to the Inter-Module Bus (IMB) which provides power and allows
communication with the Trusted
TM
TMR Processor. In addition, all modules have a field interface that
is used to connect to module specific signals in the field. All modules are Triple Modular Redundant
(TMR).

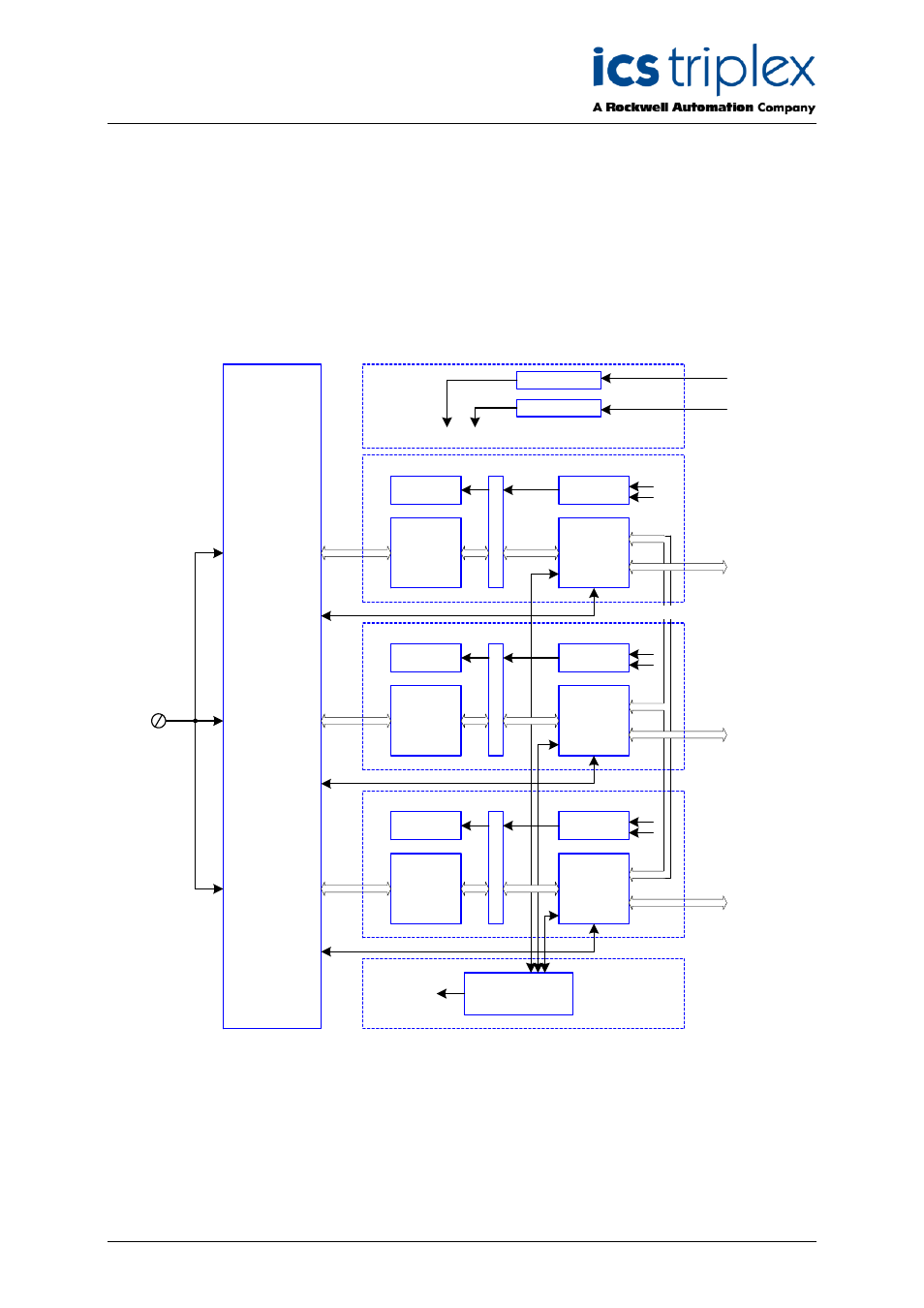

Figure 1 Module Architecture
All High Integrity I/O modules comprise four sections: Host Interface Unit (HIU), the Field Interface Unit
(FIU), the Field Termination Unit (FTU) and the Front Panel Unit (or FPU).
