Rockwell Automation Publication IASIMP-QS036A-EN-P - April 2013 9
Preface

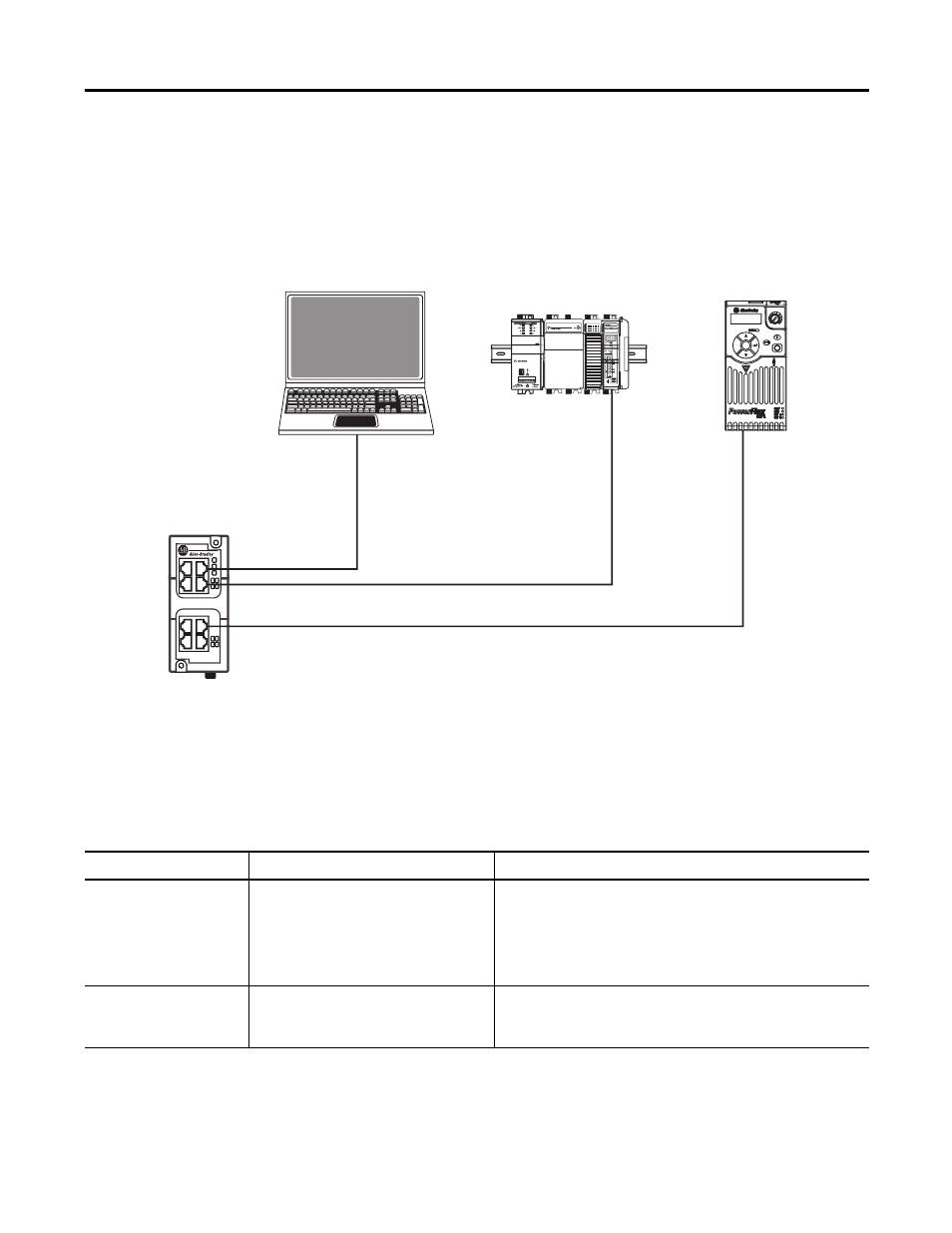

How Hardware is Connected
This quick start demonstrates the following possible control system.
Required Software
To complete examples in this quick start, you need the software described in this table.
Software Required Version Required for This Task
RSLogix 5000
20.00.00 or later
(1)
(1) RSLogix 5000 software, version 20.00.00 or later, is required for use of this quick start because the example Logix5000 controller, and associated tasks, described herein are completed in a CompactLogix
5370 control system. CompactLogix 5370 control systems require RSLogix 5000 software, version 20.00.00 or later. If you connect a PowerFlex 525 drive over an EtherNet/IP network in a Logix5000 control
system that uses a different controller, the minimum version can differ.
Create or change RSLogix 5000 projects to use PowerFlex 525 drive
OR
Studio 5000 Logix Designer 21.00.00 or later Create or change the Studio 5000 Logix Designer project to use
PowerFlex 525 drive
BOOTP/DHCP utility Version automatically installed with RSLogix
5000 software and varies according to that
software’s version Set IP address for PowerFlex 525 drive
1 2
3 4
5 6
7 8
Esc Sel
PowerFlex 525 Drive
via Embedded
EtherNet/IP Adapter
Stratix 6000™
Managed Switch
Logix5000 Controller
with Ethernet
Connection Computer
