Rockwell Automation Publication IASIMP-QS036A-EN-P - April 2013
13
Prepare the PowerFlex 525 Drive Hardware Chapter 1
Mount the Drive
The PowerFlex 525 drive must be mounted on a flat, vertical, and level surface (or DIN rail), following the
requirements for minimum clearances, ambient operating temperature, and debris protection. For complete
mounting instructions, see the PowerFlex 525 Adjustable Frequency AC Drive User Manual, publication
.
Install Power Wiring
Follow these steps to access the power terminals and connect the power wires.
1.

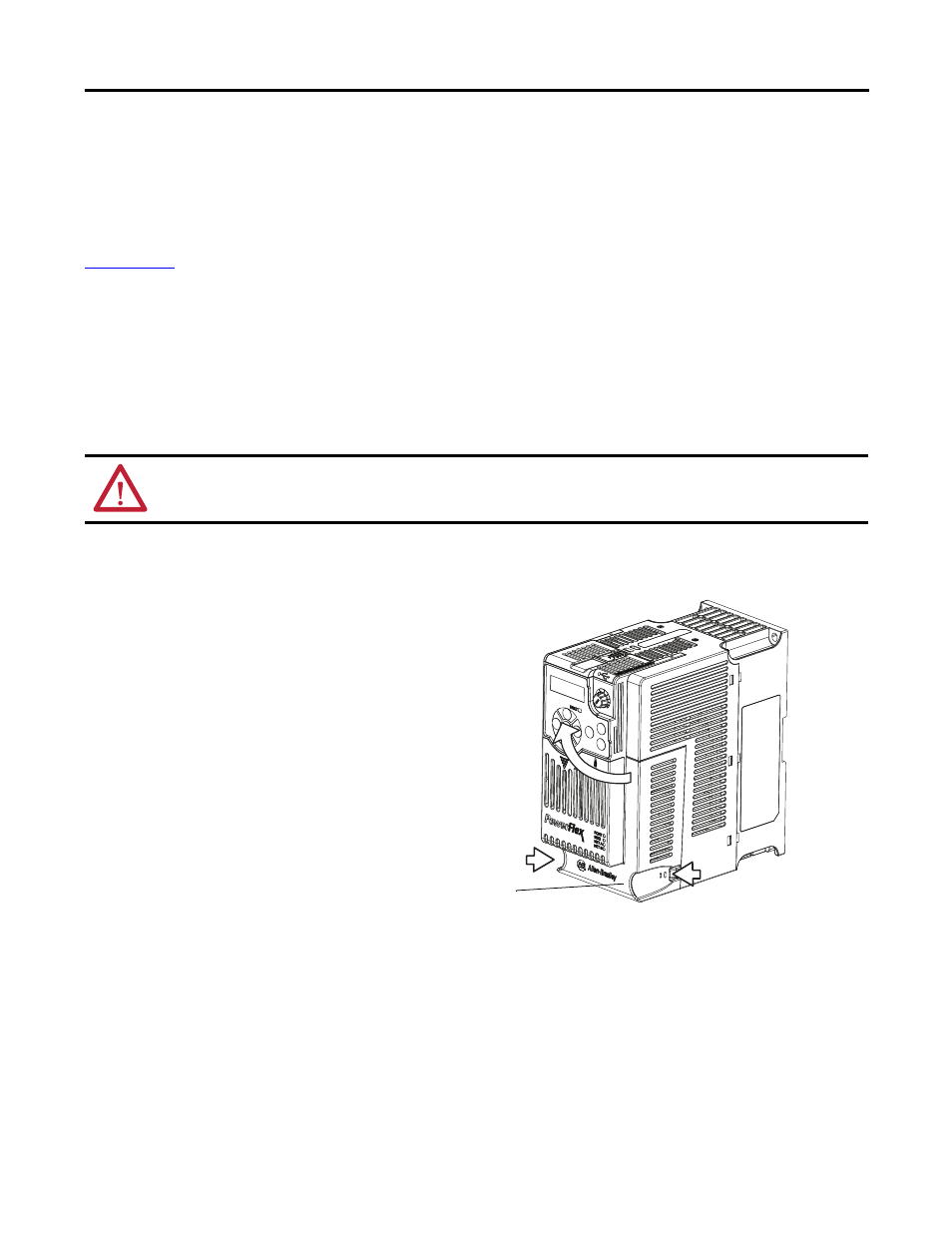

Access the power terminal block:
•
For frames B…E drives, press
in and hold down the latches
on both sides of the power
terminal cover and pull out
and swing upwards to remove
the cover.
ATTENTION: Verify that all incoming power is turned off before connecting power wires to the drive.
Press Side Latches in and Pull
Cover Up and Off of Drive
Power Terminal Cover
