Fault finding and maintenance, Fault reporting, Field wiring faults – Rockwell Automation T8448 Trusted TMR Zone Interface Module - 40 Channel User Manual

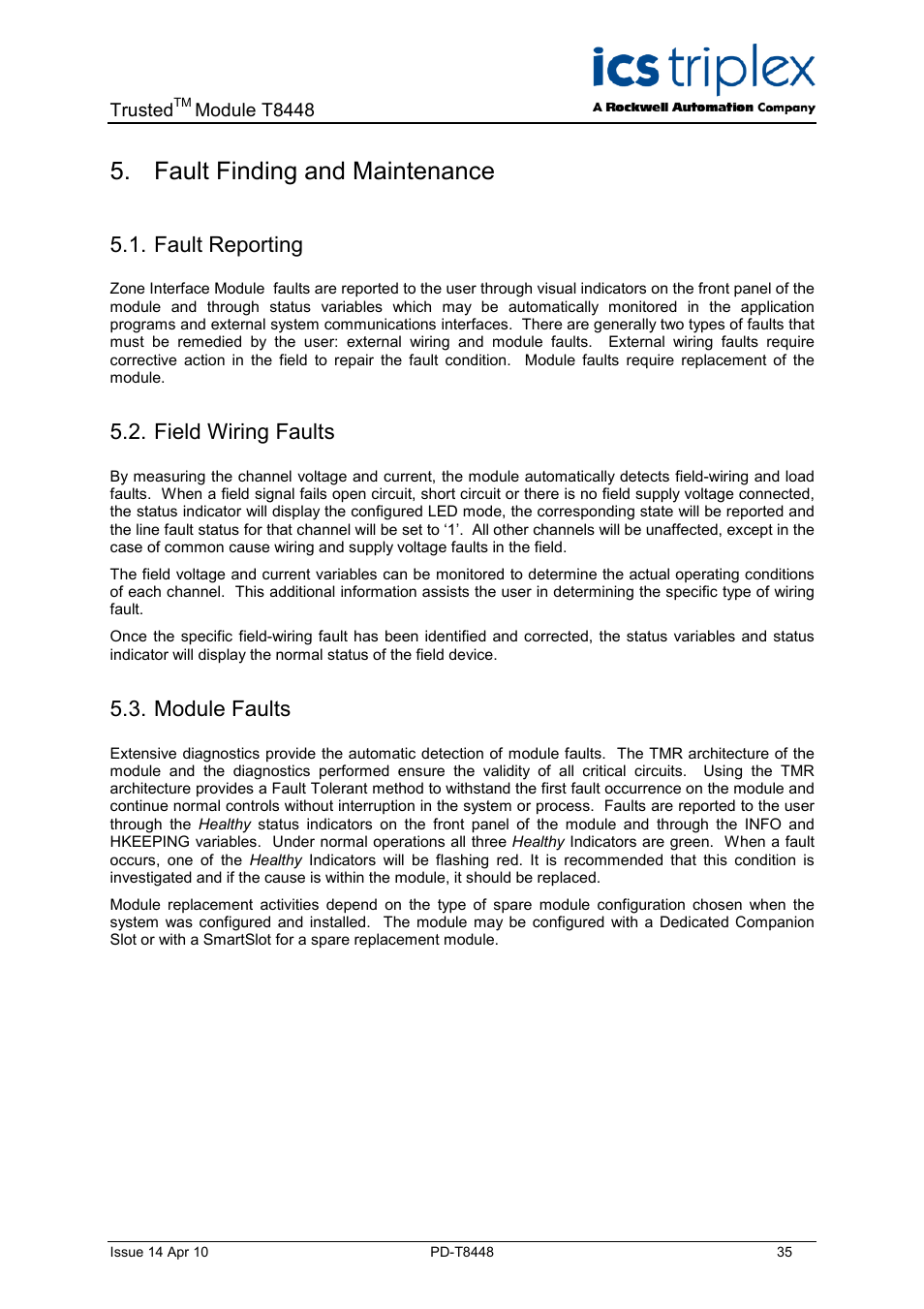

Page 35: Module faults
