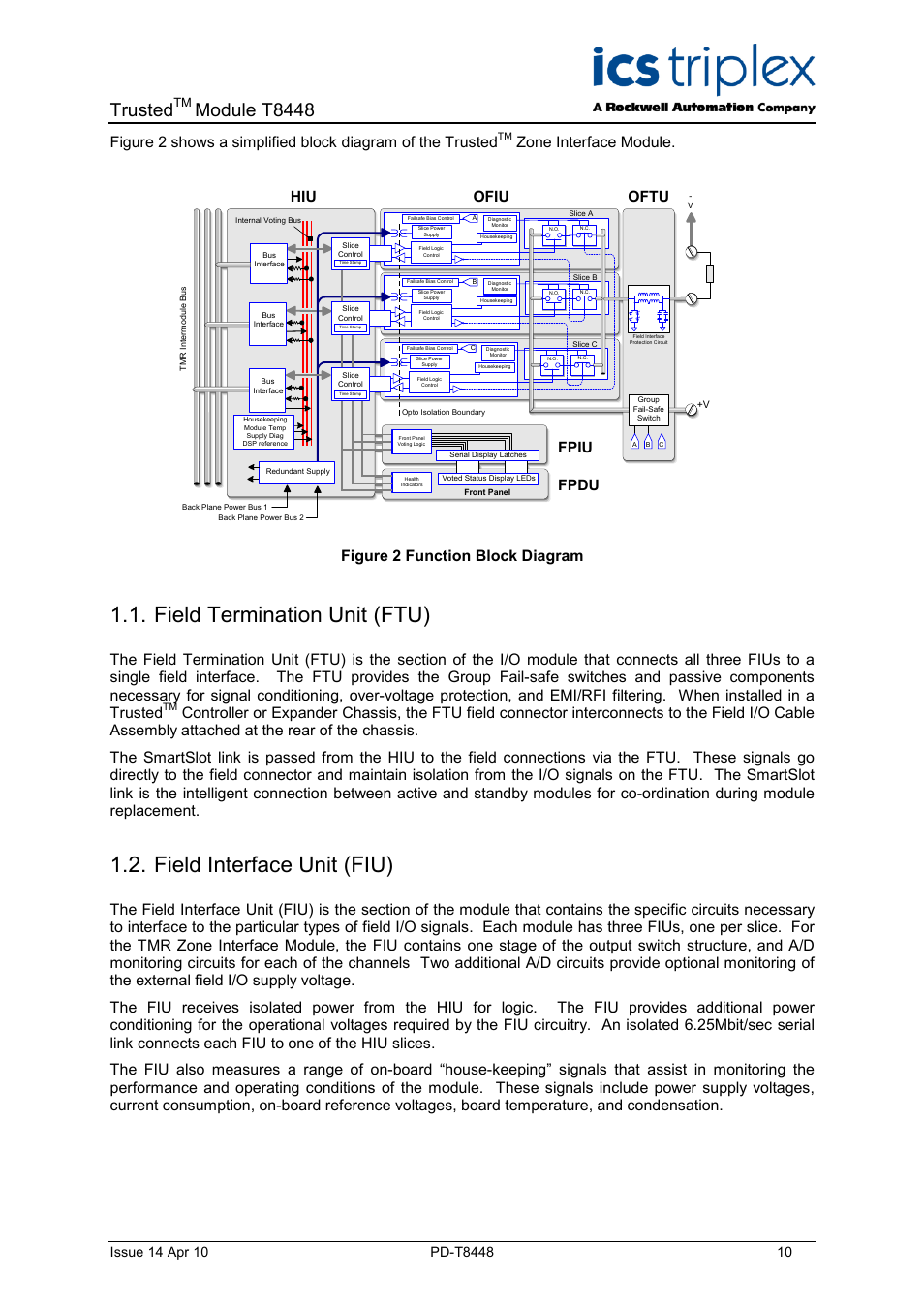

Field termination unit (ftu), Field interface unit (fiu), Figure 2 function block diagram – Rockwell Automation T8448 Trusted TMR Zone Interface Module - 40 Channel User Manual
Page 10: Trusted, Module t8448, Ofiu hiu fpdu fpiu, Oftu
