15 hp – Rockwell Automation SA500 AC Power Modules User Manual

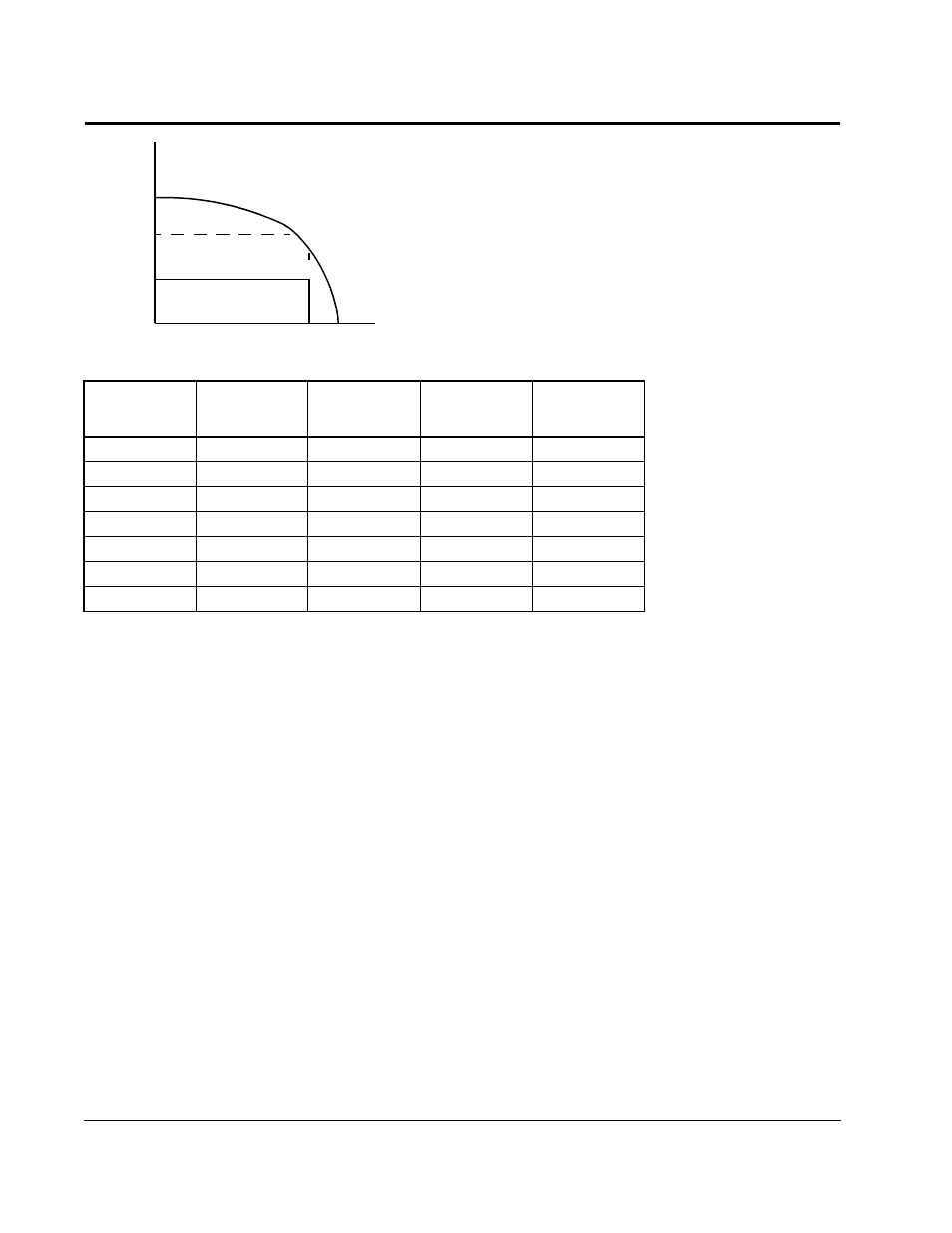

Page 56
B-2
SA500 Power Modules
Model
Number
HP
Base Speed
(RPM)
Torque
(in-lb)
Inertia
(lb-in-S
2
B14H3050
1
2000
31.5
0.012
B14H3060
2
2000
63
0.021
B14H3070
3
2000
94.5
0.031
B14H3080
4
2000
126
0.041
P21M0309
7.5
1750
270
0.0895
P21M0310
10
1750
360
0.1268
P21M0311
15
1750
540
0.1641
Torque
(in-lb)
15 HP
200%
1080
540
1200
1750
2400
(RPM)
0
CONTINUOUS
OPERATING
RANGE
