Xm installation requirements, Wiring requirements, Power requirements – Rockwell Automation 1440-REX00-04RD XM-441 Expansion Relay Module User Manual

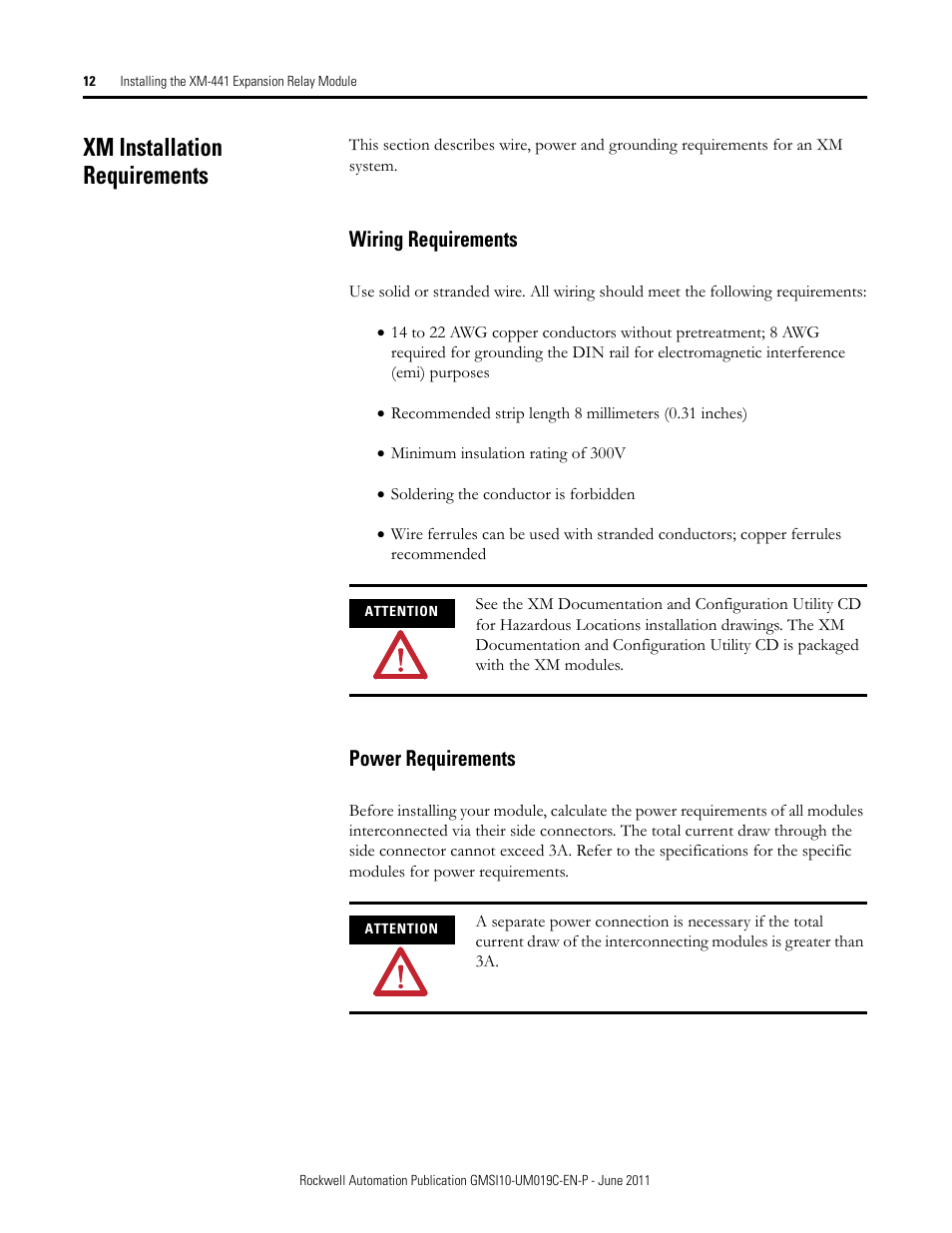

Page 12: Wiring requirements power requirements
