Trusted – Rockwell Automation T80017 Application Note Regent to Trusted Migration User Manual
Page 21
Trusted
TM
AN-T80017 Regent to Trusted Migration
Issue 2 June 08
AN-T80017
21
Communication settings are very different, by definition of the different architecture. Regent can have
six ports which may be for diagnostics (COMM), text output (ASCII), Modbus slave or master or
Regent Peer network. Trusted does not need allocation of a diagnostic port, and does not implement
text output or Regent peer network. In this case, the ports are essentially unused.

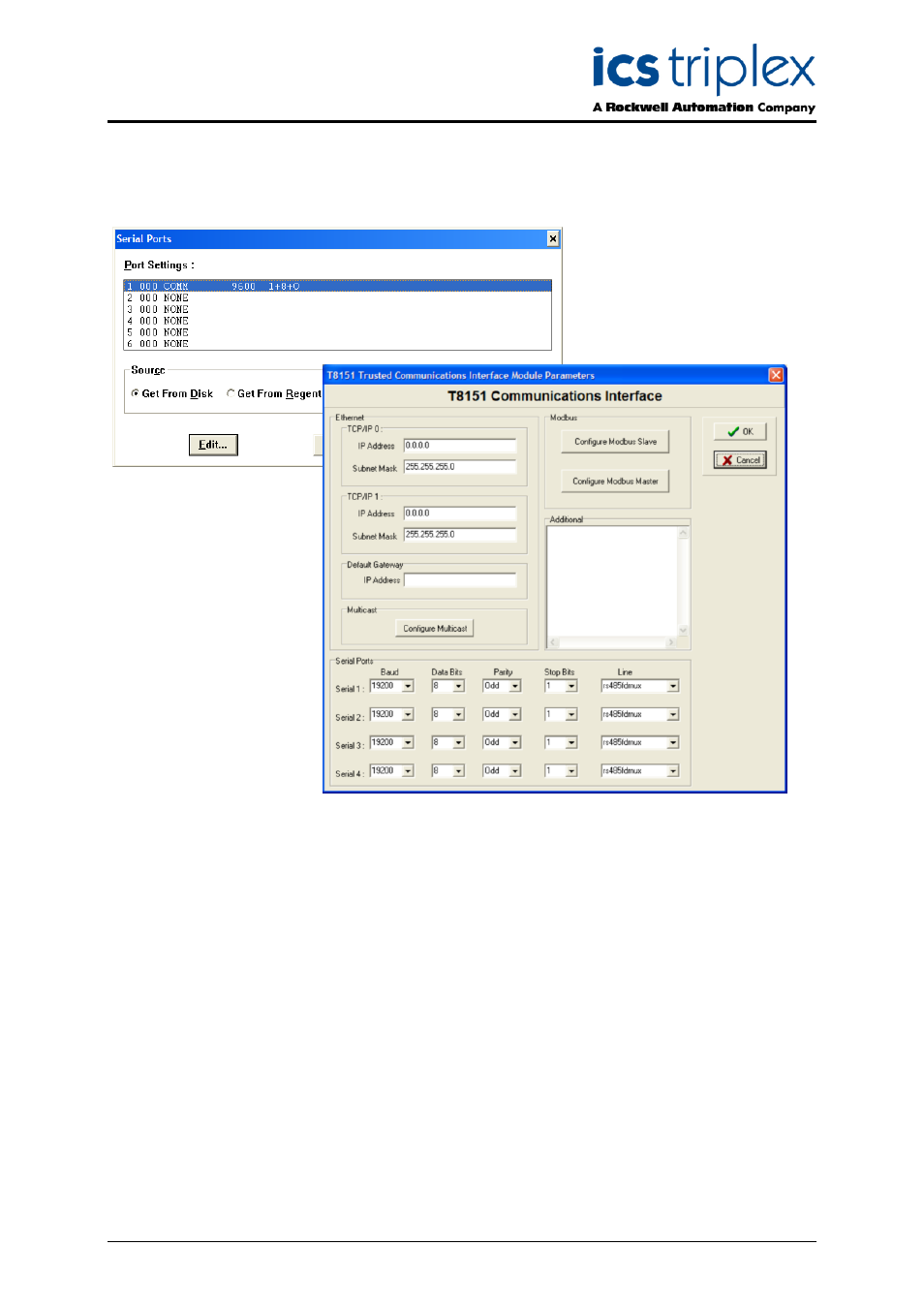

Figure 14 Port Configuration
