5. Application Examples

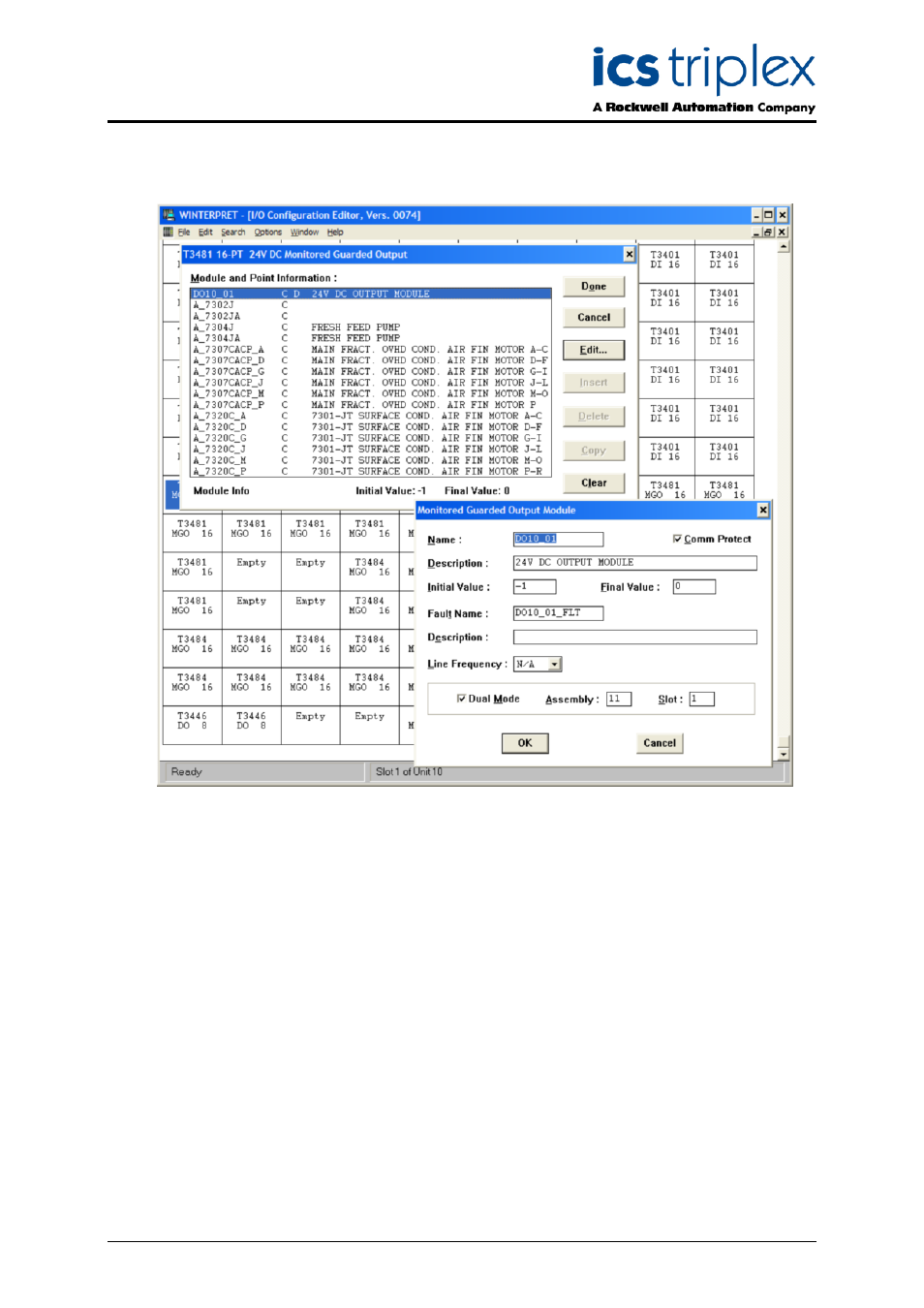

Figure 3 Regent I/O Module Configuration
Regent I/O configuration allows names to be applied to each I/O point and fault point which do not
appear in the shared variables (the equivalent of the Trusted dictionary). It also allows the naming of
16-bit registers to carry all I/O points or faults in one tag, as shown above. The I/O operation is
configured in the table (thresholds, redundant modules etc.).
