Trusted – Rockwell Automation T80017 Application Note Regent to Trusted Migration User Manual
Page 17
Trusted
TM
AN-T80017 Regent to Trusted Migration
Issue 2 June 08
AN-T80017
17
Regent ladder logic function blocks are on a fixed grid with 10 columns wide. Trusted FBD/LD
programs allow free design with user function blocks. These two programs are not identical in their
operation.

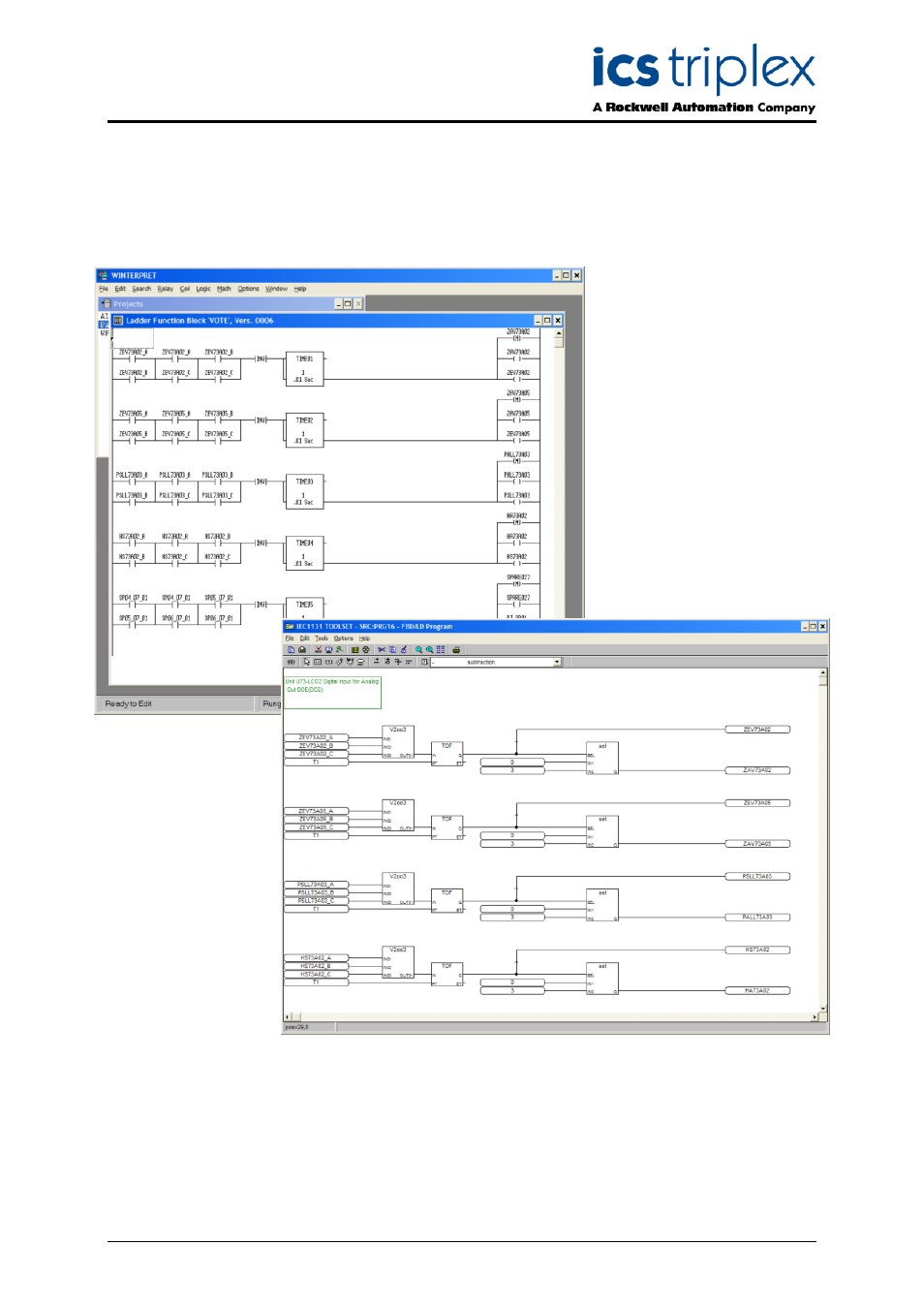

Figure 10 Ladder Logic and FBD Programs
