Trusted – Rockwell Automation T80017 Application Note Regent to Trusted Migration User Manual
Page 13
Trusted
TM
AN-T80017 Regent to Trusted Migration
Issue 2 June 08
AN-T80017
13
The Trusted implementation for multiplexed I/O is to use many separate I/O definitions. The Regent
7491 module should be declared before the I/O boards. Again, OEM parameters are used to define the
board addresses.

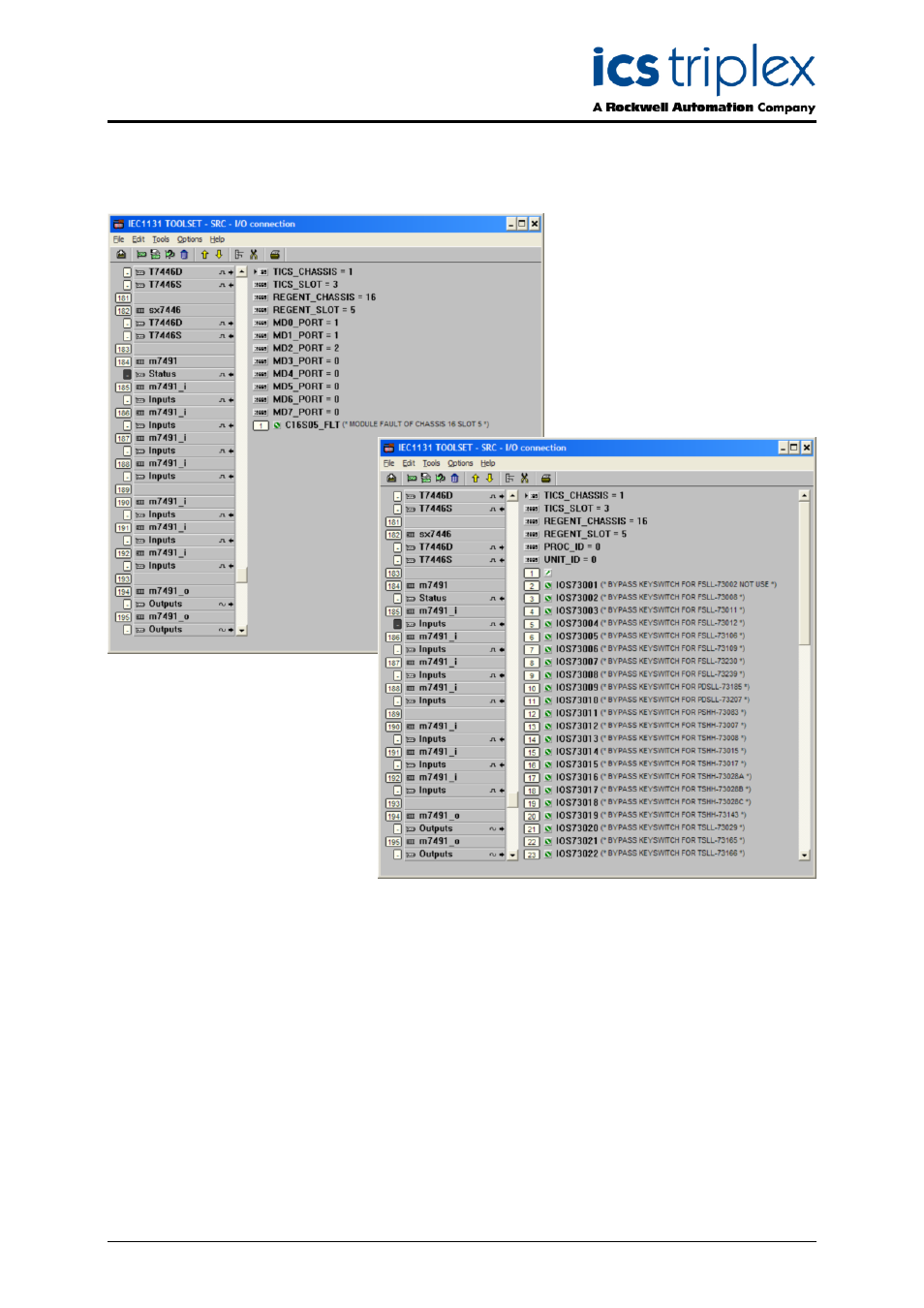

Figure 6 Trusted Multiplexer Configuration
