DeviceNet Tag Generator
We recommend using the RSLogix 5000 tool, DeviceNet Tag Generator, to
automatically create all tags and structures in to your RSLogix 5000 project.
This tool is available on the RSLogix 5000 Optional Software CD or on the
DeviceNet Optional Tools CD.
This tool also creates additional Routines and code in your .acd project file.
The created code handles all Data exchange between the DeviceNet Scanner
Data list and your Application. This tool also creates structures and all Tags
related to each E3 with unique tag names.
The tag names take the following structure:
ScannerName_Note#_Polled_Input/Output
For example, DNB_N03_POL_I = DeviceNet Input Data from Note 3, and
DNB_N03_POL_O = DeviceNet Output Data to Note 3
The Data Type that the DeviceNet Tag Generator automatically creates is
named by the Catalog Number explanation and parameter configuration.
For example, AB_193592_EC2P_I_70847BCC
where 70847BCC is a unique code# which depends on the parameter
configuration.

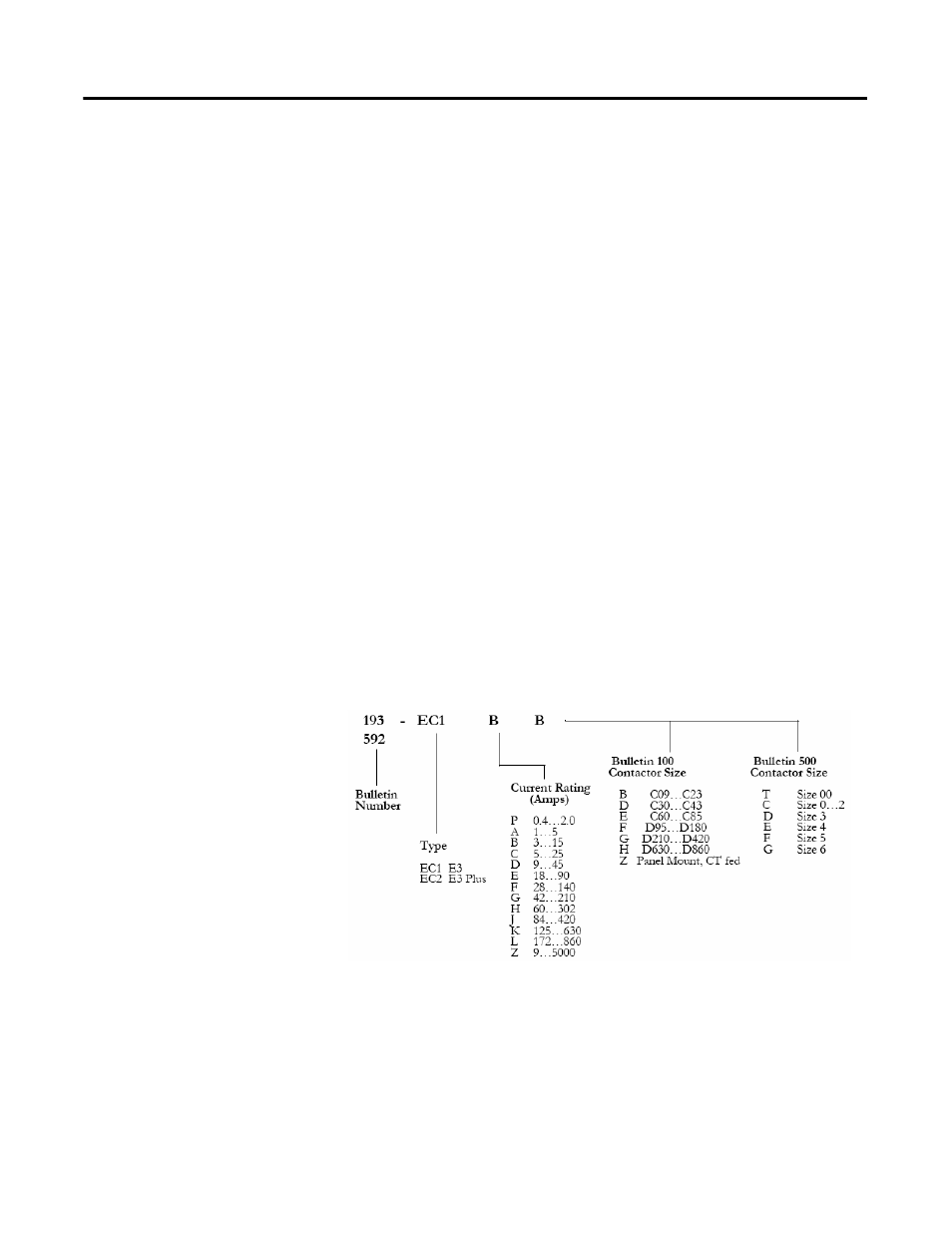

Catalog Number Explanation
