Light Curtain Multi-Function Control Module User Manual
Original instructions

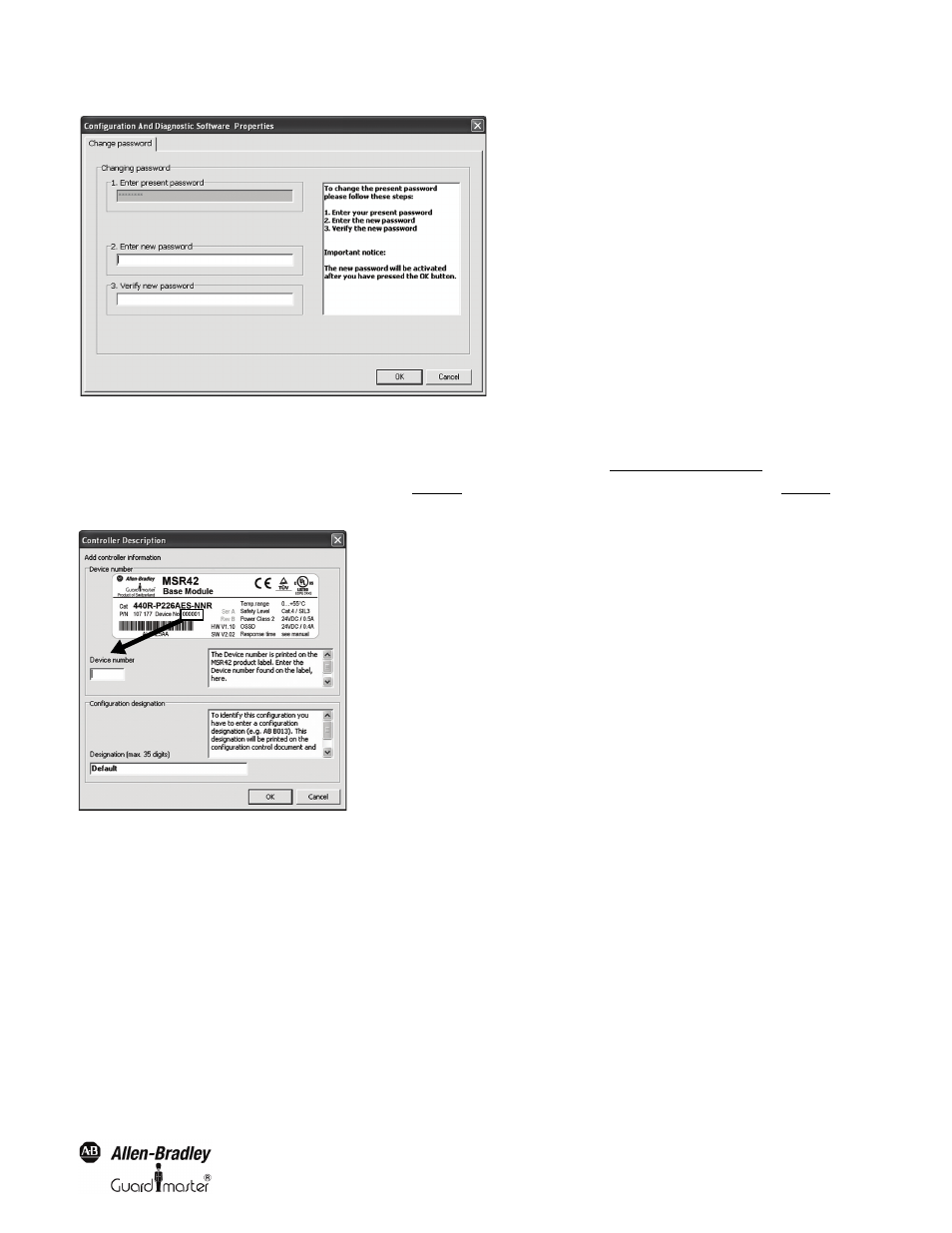

Figure 23: Change password
5.3.2.3. Menu “Controller Description”
The device number can be entered here or when downloading a configuration to a MSR42 controller
(See chapter 5.5.1 on page 31).
The field “Designation” can be used to name the configuration (
Figure 24). This name will be printed on the configuration document (Figure 51). This
name makes it easier to identify the configuration in the future.
Figure 24: Controller description
5.3.2.4. Menu “Advanced Options”
This menu button is only intended for service / maintenance cases.
5.3.2.5. Menu “Language”
Here the preferred language maybe selected.
5.3.3. Menu “Help”
5.3.3.1. Menu “Help”
Opens this user manual in a separate window as a PDF-file.
5.3.3.2. Menu “Allen Bradley Home Page”
Opens the the Allen-Bradley homepage in your Internet-Browser.
