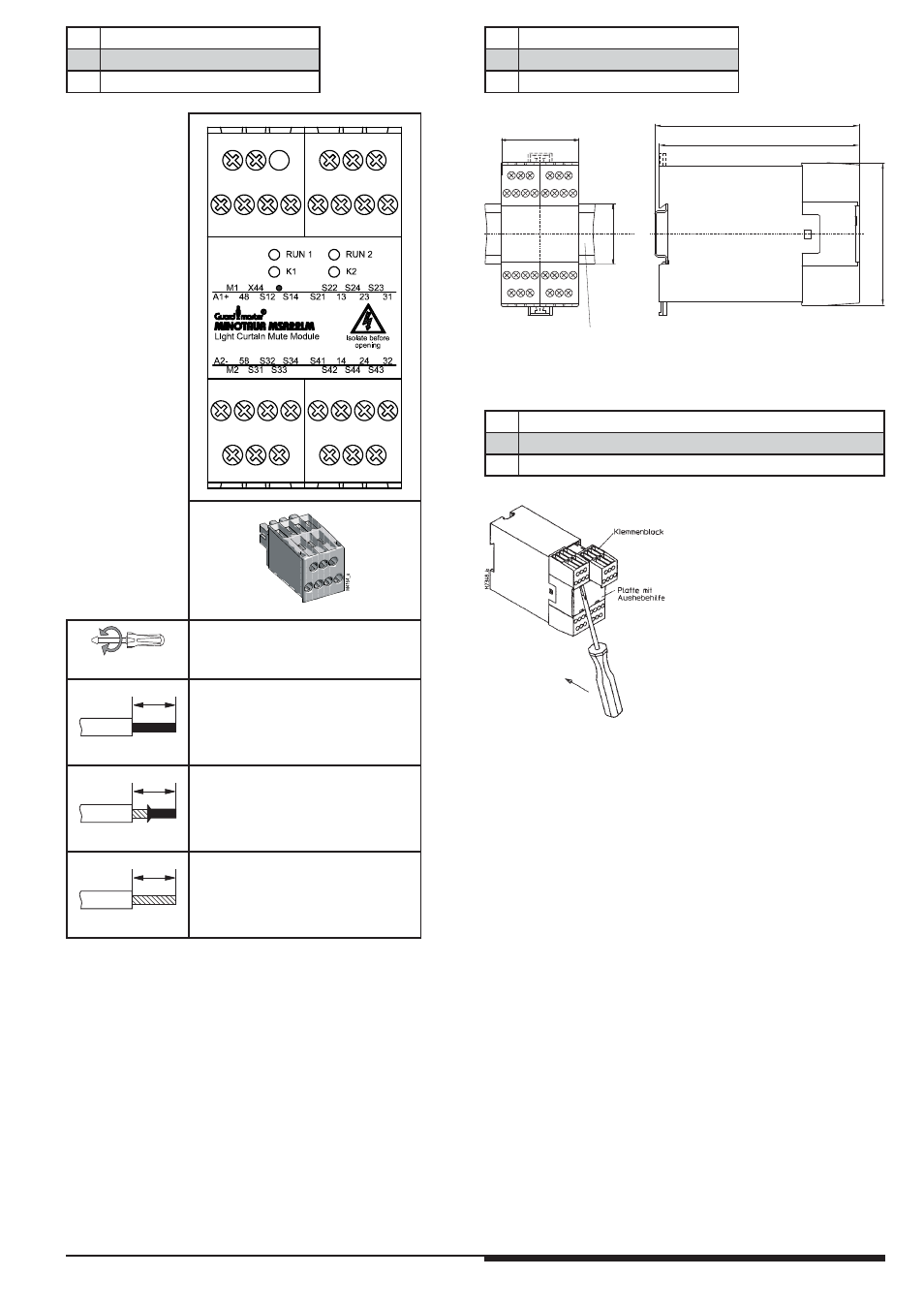

Beschriftung und Anschlüsse

EN

Labeling and connections

FR

Marquage et raccordements

ø 4 mm / PZ 1

0,8 Nm

7 LB. IN

M10248

A

A = 10 mm

1 x 0,5 ... 4 mm

2

1 x AWG 20 to 12

2 x 0,5 ... 1,5 mm

2

2 x AWG 20 to 16

M10249

A

A = 10 mm

1 x 0,5 ... 2,5 mm

2

1 x AWG 20 to 14

2 x 0,5 ... 1,5 mm

2

2 x AWG 20 to 16

M10250

A

A = 10 mm

1 x 0,5 ... 4 mm

2

1 x AWG 20 to 12

2 x 0,5 ... 1,5 mm

2

2 x AWG 20 to 16

DE

Maßbild (Maße in mm)

EN

Dimensions (dimensions in mm)

FR

Dimensions (dimensions en mm)

M10050

45

Hutschiene
DIN EN 60715

121

118

84

3

5

DE

Montage / Demontage der Klemmenblöcke

EN

Mounting / disassembly of the terminal blocks

FR

Démontage des borniers ammovibles
