Rockwell Automation 2711E PanelBuilder 1400e Modbus Communications User Manual
Page 65
7–4
Configuring the PanelView Terminal for Modbus Communications
Publication 2711E-6.12 – November 1997

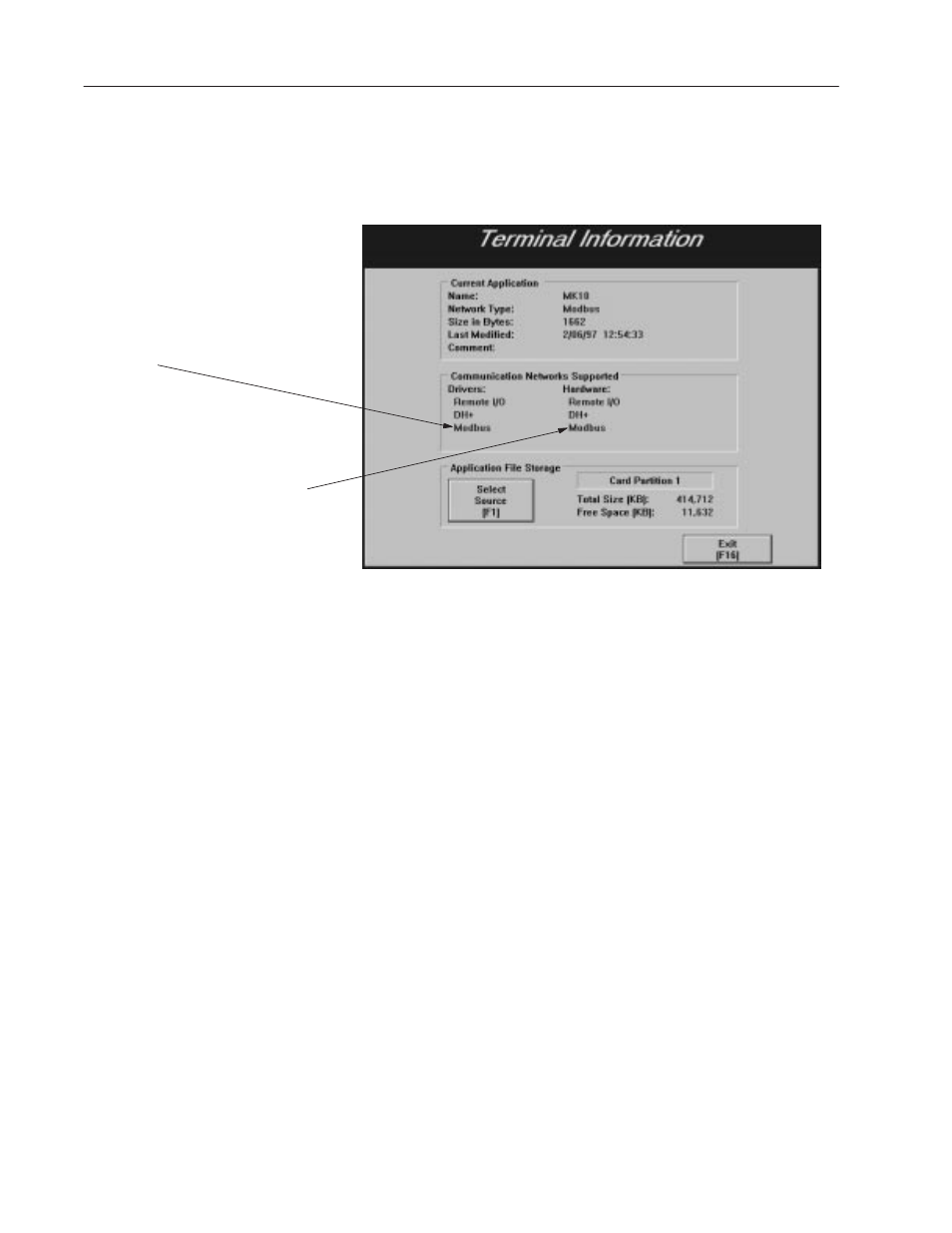

Once you have installed Modbus firmware in your PanelView
terminal, press the Terminal Information button on the Terminal
Configuration Screen to verify that the firmware is installed
correctly.
This indicates that Modbus firmware is
installed.
This indicates that the Modbus hardware
is installed and detected.
Once you have verified that the hardware and Modbus firmware are
installed correctly, you are ready to download your PanelBuilder
application to the terminal, and run it. For information about
transferring applications files to and from PanelView terminals, see
the PanelView 1200/1400e Transfer Utility User Manual, Publication
Number 2711E-6.8.
