Publication 2100-IN065A-EN-P—September 2006
CENTERLINE® 2100 Motor Control Centers Retrofitting Units with Horizontal Operating Handles Into Series “E” Through “J” Sections 5

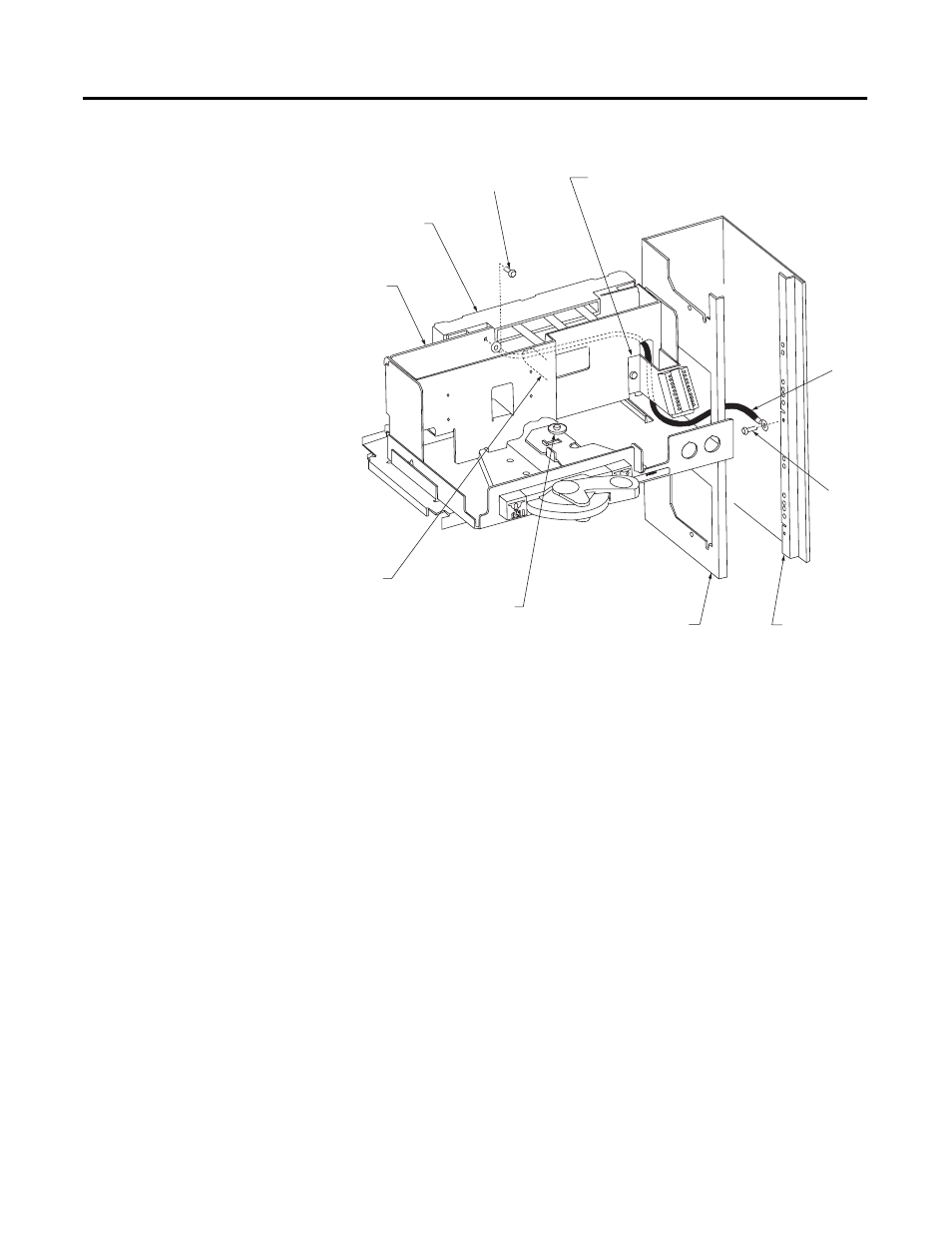

Figure 4 Attaching the ground wire
6. Feed the ground wire, allowing the wire to pass through the opening in
the Right Hand Unit Support.
NOTE: Do not route the wire over the top of the mounting plate, as it could
be damaged during unit insertion or removal. Refer to Figure 4 for an example
of typical routing.
7. Insert the unit to the service position (rear slot in the latch/interlock
lever engages the unit support pan bushing). For detailed unit insertion
instructions, refer to Publication 2100-IN060x-EN-P, Installing Units with
Horizontal Operating Handles.
Unit Stab
Molding
Unit
Backplate
Terminal Block
Mounting Bracket
Mounting
Hook
Bushing Shown in
Service Position
Right Hand
Sidesheet
Note: Unit devices have been omitted for clarity.
10-32 x 3/8 Thread-Forming Screw
Ground
Wire
10-32 x
3/8
Thread-
Forming
Screw
Right Hand
Unit Support
