Connecting dc power – Rockwell Automation 2711-K5Axx_B5Axx PanelView 550 Terminals Installation Instructions User Manual

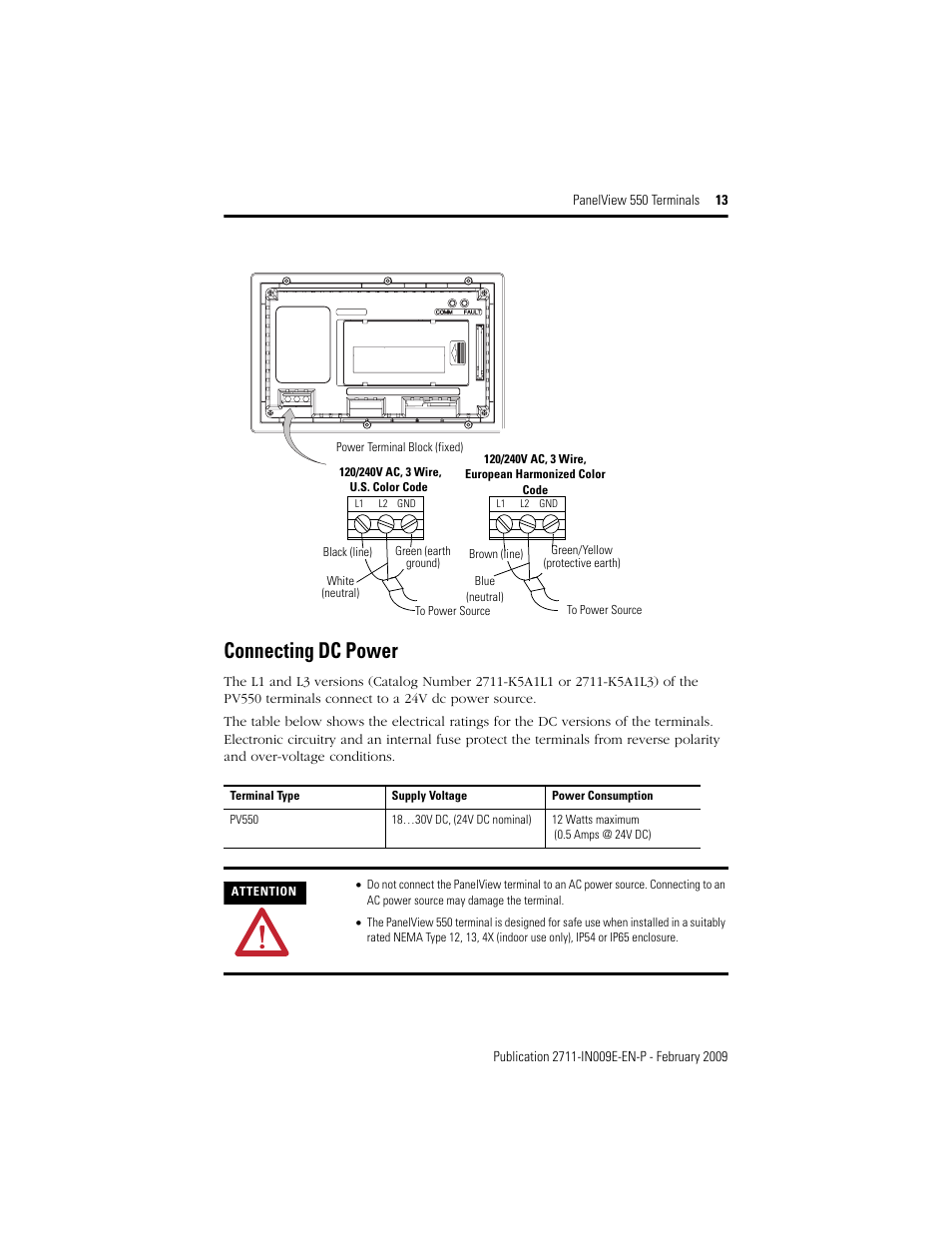

Page 13
