6 Kinetix 6000 Power Rail

Publication 2094-IN003D-EN-P - November 2010

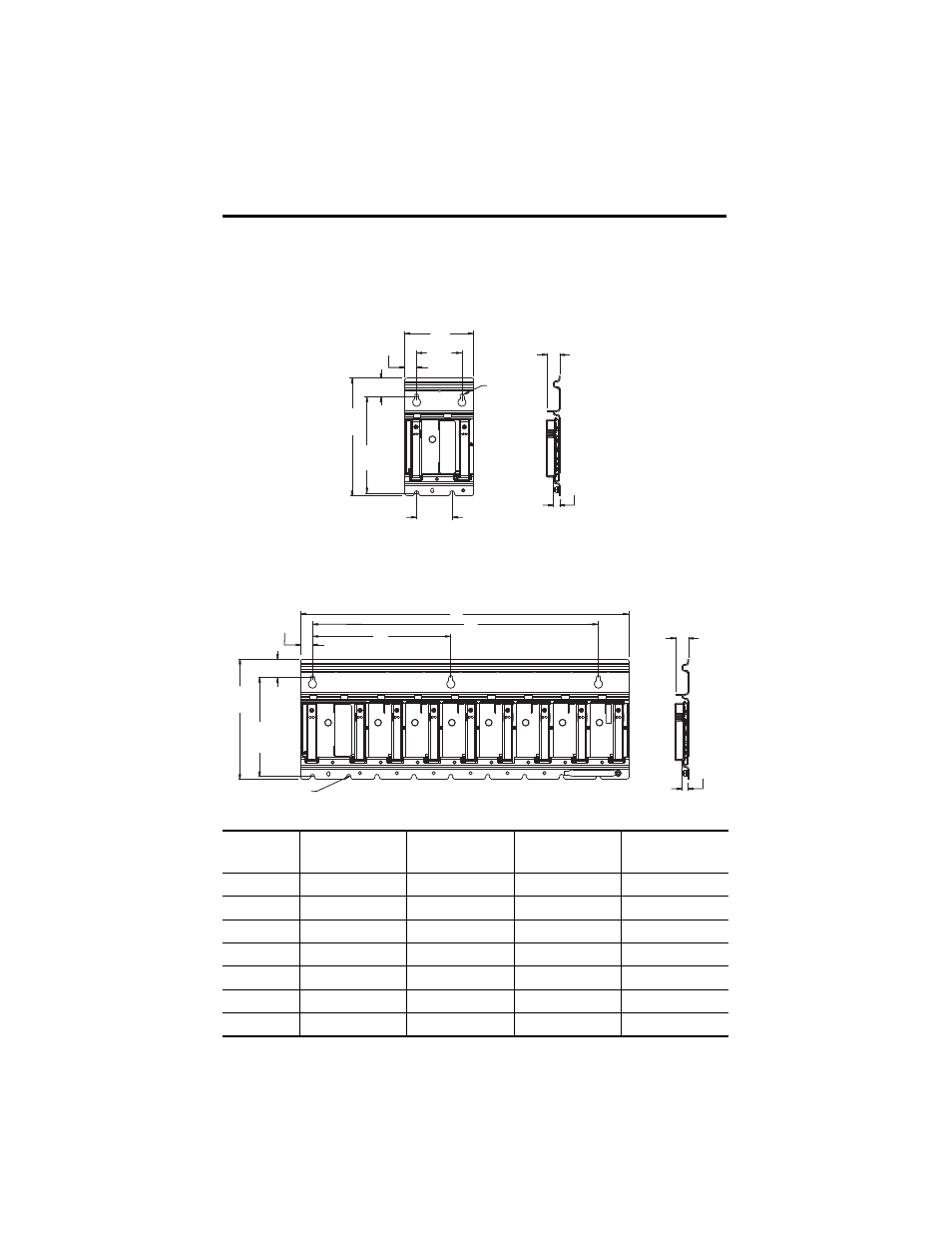

Product Dimensions

These are the mounting dimensions for the Bulletin 2094 power rail.

2094-PRS1 (Slim) Power Rail

2094-PRS2, 2094-PRS3, 2094-PRS4, 2094-PRS5, 2094-PRS6, 2094-PRS7, and
2094-PRS8 (Slim) Power Rails

Cat. No.

Description

Dimension A

mm (in.)

Dimension B

mm (in.)

Dimension C

mm (in.)

2094-PRS2

2-axis power rail

205.7 (8.10)

124.5 (4.90)

N/A

2094-PRS3

3-axis power rail

276.9 (10.90)

195.6 (7.70)

N/A

2094-PRS4

4-axis power rail

348.0 (13.70)

266.7 (10.50)

N/A

2094-PRS5

5-axis power rail

419.1 (16.50)

337.8 (13.30)

195.6 (7.70)

2094-PRS6

6-axis power rail

490.2 (19.30)

408.9 (16.10)

195.6 (7.70)

2094-PRS7

7-axis power rail

561.3 (22.10)

480.1 (18.90)

266.7 (10.50)

2094-PRS8

8-axis power rail

632.5 (24.90)

551.2 (21.70)

266.7 (10.50)

Ø 7.95
(O.313) TYP.

22.9

(0.90)

134.6

(5.3)

88.9
(3.5)

231

(9.1)

190.5

(7.5)

69.9

(2.75)

35.1
(1.4)

12.4

(0.50)

25.4
(1.0)

Dimensions are in mm (in.)

12.4

(0.50)

25.4
(1.0)

B

A

C

22.9

(0.90)

35.1
(1.4)

231

(9.1)

190.5

(7.5)

Ø 7.95

(O.313) TYP.

Dimensions are in mm (in.)
